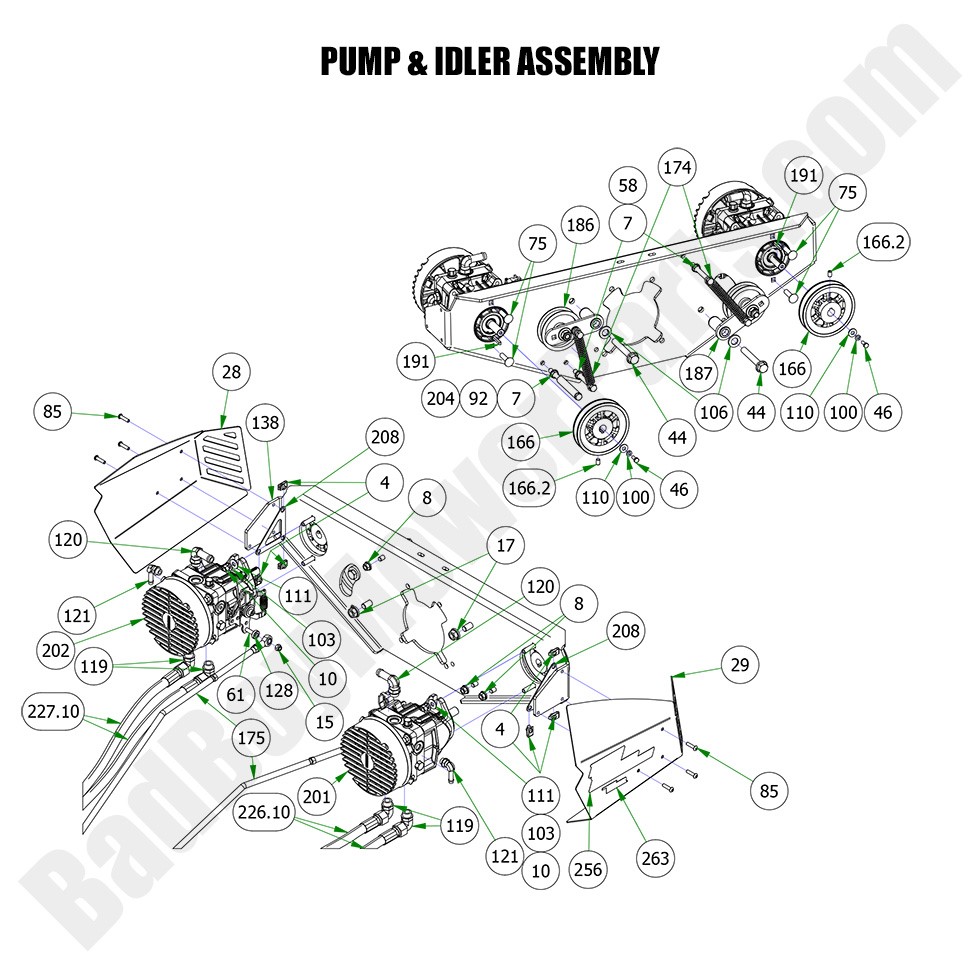

2023 Renegade - Gas - Pump & Idler Assembly

2023 Renegade - Gas - Pump & Idler Assembly

The 2023 Renegade - Gas Pump & Idler Assembly play an essential role in the operation of your mower’s drive system. If you're looking to repair or replace these components, Bad Boy Mower Part diagrams provide a clear visual guide to help you identify exactly what you need. At BadBoyMowerParts.com, we carry a wide range of Bad Boy Mower Parts, including fuel pumps, idler assemblies, and other related components. Our Bad Boy Lawn Mower Parts are made with the quality and durability you need to keep your mower in top condition. Shopping for Bad Boy Parts Online is simple and convenient, and with Free Shipping On Orders Over $100, you won’t have to worry about extra shipping costs when you make your purchase. Make sure your mower's drive system is running smoothly with our top-notch parts.

Bad Boy Mower Parts Lookup

2023 Renegade - Gas - Pump & Idler Assembly
  Position Number SKU Product Title Price
4 013-0054-00 013-0054-00 - 1/4-20 Cage Nut
$2.99
7 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
8 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
10 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
15 013-8047-00 013-8047-00 - 5/16-18 Nylon Insert Locknut - Zinc
$2.99
17 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
28 014-5060-22 014-5060-22 Pump Cover-RH-Black
$21.39
29 014-5061-22 014-5061-22 Pump Cover-LH-Black (See Models Used On For Details)
$32.09
44 018-0010-00 018-0010-00 - Deck Wheel Bolt
$6.48
46 018-0024-00 018-0024-00 - M6-1.0 X 16MM HEX BOLT
$2.99
58 018-1010-00 018-1010-00 - 3/8-16 x 3-1/2 Hex Bolt
$2.99
61 018-2006-00 018-2006-00 - 5/16-18 X 1-1/4 Hex Bolt
$2.99
75 018-4706-00 018-4706-00 - 3/8 x 1 1/2 Carriage Bolt
$2.99
85 018-6014-00 018-6014-00 - 1/4-20 x 1" BS C/S 18-8 SS
$5.82
92 018-7060-00 018-7060-00 - 3/8-16 x 5 1/2 Hex Bolt -
$2.99
100 019-4008-00 019-4008-00 - 1/4 Lockwasher Zinc
$2.99
103 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
106 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
110 019-7040-00 019-7040-00 - 1/4 USS Flat Washer Zinc
$2.99
111 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
119 024-2052-00 024-2052-00 - 2019-2022 Renegade Horizontal Pump Fitting 90 Degree # 6801-10-8
$12.48
120 024-5002-00 024-5002-00 - 90 Degree Fitting, 1/2 x 3/4, 986741
$17.63
121 024-5206-00 024-5206-00 - 90 Degree Fitting, 3/8 x 9/16, 4601-6-6
$12.42
128 025-2001-00 025-2001-00 - ACS Spacer 3/4x3/8x1/4
$15.60
138 026-8010-00 026-8010-00 - Pump Plate Horizontal Gas
$106.99
166.2 030-0076-00 030-0076-00 - 5/16-18 X 1/2 SOCKET SET SCREW KNURLED CUP POINT
$2.99
166 033-5011-00 033-5011-00 - Cast Pump Pulley - 17mm AOS/Diesel Models
$35.48
174 034-9000-00 034-9000-00 - SPRING (See Models Used On For Details)
$15.55
175 035-0005-00 035-0005-00 - Push Rod Assembly 2019-2025 Renegade
$46.84
186 039-6950-98 039-6950-98 - 2020-2025 Renegade Gas Belt Tensioner LH
$85.17
187 039-6950-99 039-6950-99 - 2020-2022 Renegade Gas Belt Tensioner RH
$85.17
191 042-5013-00 042-5013-00 - M5 X 36MM Square Machinery Key C1018 ROUNDED ENDS
$2.99
201 050-3001-00 050-3001-00 - Rogue/Renegade Left Pump 16cc Hydro-Gear# PR-2KCC-GB1C-XXXX (See Models Used On For Details)
$699.99
202 050-3003-00 050-3003-00 - 2019-2024 Renegade Right Pump 16cc Hydro-Gear # PR-2HCC-GA1C-XXXX
$649.99
204 051-8076-00 051-8076-00 - 3/8 Fuel Line-Priced per Foot
$6.59
208 057-5915-00 057-5915-00 - Pump Plate Clip Nut Holder
$17.11
226.10 051-6007-00 051-6007-00 - 2019-& Up Renegade Hydro Hose
$54.64
263 091-4004-22 091-4004-22 - Powered by Kohler Decal
$6.04
