Click Image to Change Diagram

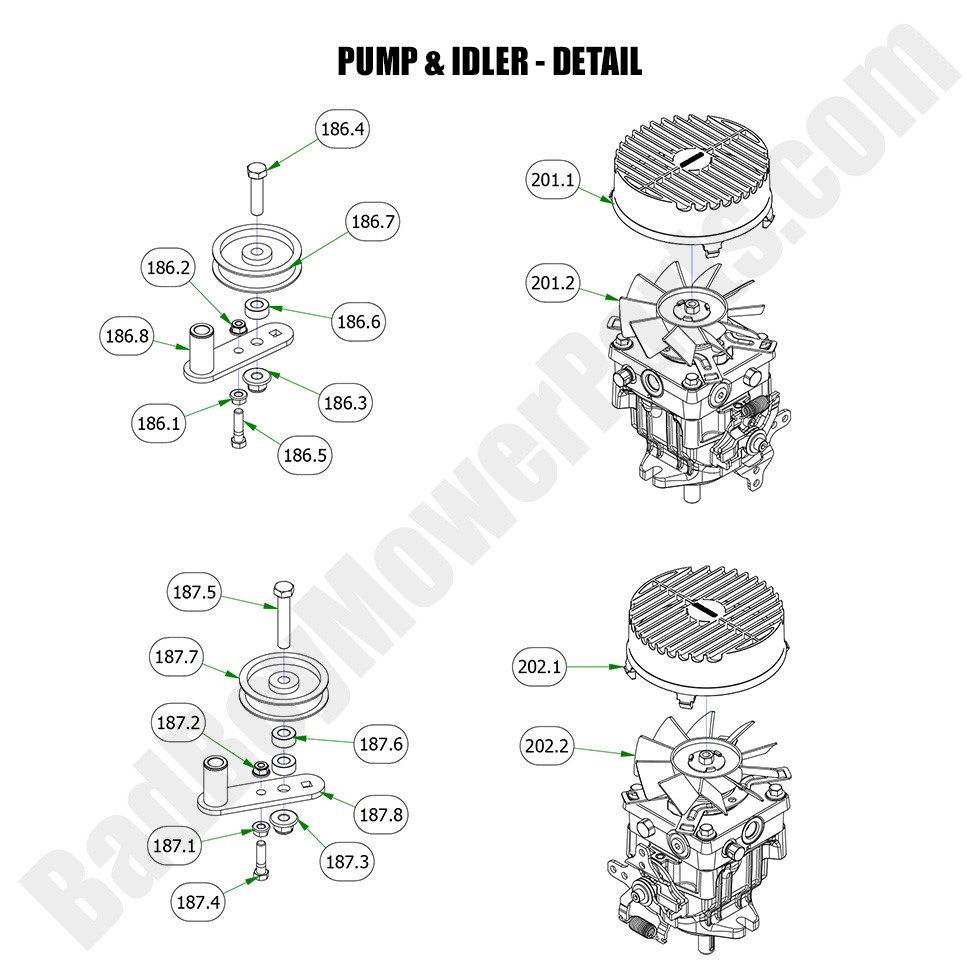

For a closer look at the 2023 Renegade - Gas Pump & Idler Detail, it's important to access accurate and reliable Bad Boy Mower Part diagrams that can guide you through repairs and part replacements. If you need a more in-depth breakdown of these components, our website, BadBoyMowerParts.com, has the resources you need. We offer a full range of Bad Boy Mower Parts that include detailed information on each component, ensuring you find exactly what’s required for your mower. Our Bad Boy Lawn Mower Parts are high-quality, durable, and made to last. By shopping for Bad Boy Parts Online, you can conveniently replace or repair parts. Enjoy Free Shipping On Orders Over $100, making it even easier and more cost-effective to get the parts you need for proper maintenance and reliable performance.
![]() |
Position Number | SKU | Product Title | Price | ||
---|---|---|---|---|---|
186.1 | 013-5201-00 | 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations |
$2.99
|
||
186.2 | 013-5202-00 | 013-5202-00 - 3/8 Nylock Flange Nut |
$2.99
|
||
186.3 | 013-8050-00 | 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon |
$2.99
|
||
186.4 | 018-0022-00 | 018-0022-00 - 1/2-13 x 2 Grade 8 Hex Bolt |
$2.99
|
||
186.5 | 018-6012-00 | 018-6012-00 - 3/8 x 1 1/2 Bolt |
$2.99
|
||
186.6 | 025-7036-00 | 025-7036-00 - 1/2 Set Collar w/set screw |
$4.60
|
||
186.7 | 033-1876-00 | 033-1876-00 - Horizontal Pump Pulley |
$28.39
|
||
186.8 | 039-6950-01 | 039-6950-01 - Horizontal Idler Arm With Bushings |
$29.80
|
||
187.5 | 018-6036-00 | 018-6036-00 - 1/2-13 X 2-3/4 Bolt Zinc |
$2.99
|
||
201.1 | 014-5600-00 | 014-5600-00 - Fan Guard 6.5" - Fits Wheel Motor Pumps |
$39.81
|
||
201.2 | 015-9999-00 | 015-9999-00 - Hydro Fan - Fits Hydraulic Pumps |
$28.88
|
