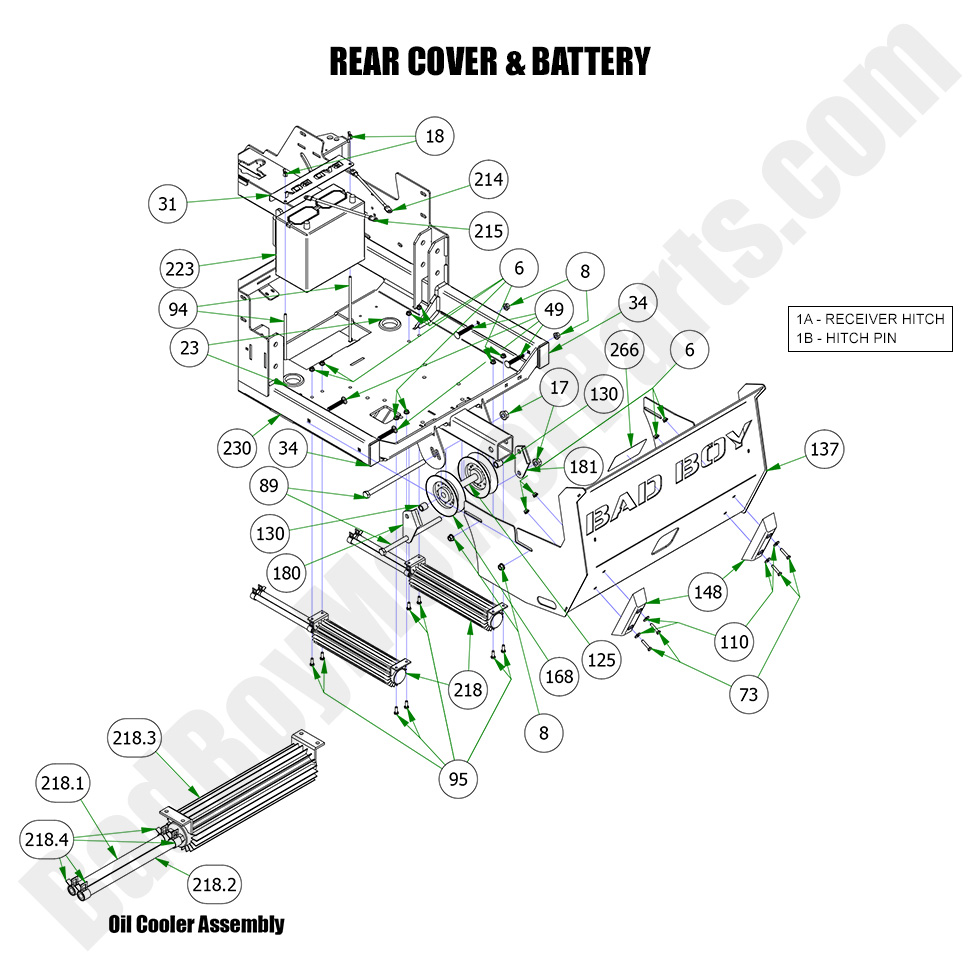

2023 Renegade - Gas - Rear Cover & Battery

2023 Renegade - Gas - Rear Cover & Battery

The 2023 Renegade - Gas Rear Cover & Battery are vital for protecting the mower’s electrical components and ensuring reliable power during operation. If you need replacement parts for your rear cover or battery, Bad Boy Mower Part diagrams can help you find the correct components quickly. Bad Boy Mower Parts offers a comprehensive selection of high-quality parts, including battery trays, covers, and other necessary accessories. With Bad Boy Lawn Mower Parts, you can find everything you need to keep your mower’s rear cover and battery system in perfect working order. Shopping for Bad Boy Parts Online is a breeze, and you’ll love the added benefit of Free Shipping On Orders Over $100, so you can easily replace your parts without any added shipping costs. Keep your mower running smoothly with our reliable and affordable parts.

Bad Boy Mower Parts Lookup

2023 Renegade - Gas - Rear Cover & Battery
  Position Number SKU Product Title Price
6 013-2050-00 013-2050-00 - 1/4-20 Nylon Insert Flange Nut
$2.99
8 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
17 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
18 013-8051-00 013-8051-00 - 1/4-20 Wing Nuts Zinc
$2.99
23 014-2052-00 014-2052-00 - 2 x .25 Rubber Grommet (See Models Used On For Details)
$12.83
31 014-5063-00 014-5063-00 - Battery Hold Down Cover 2019-2025 Renegade
$10.99
34 014-9003-00 014-9003-00 - 1 1/2 x 3 Frame Plug
$2.99
49 018-0044-00 018-0044-00 - 3/8 x 2 1/2 Carriage Bolt
$2.99
73 018-4702-00 018-4702-00 - 1/4-20 X 1-1/4 Hex Bolt
$2.99

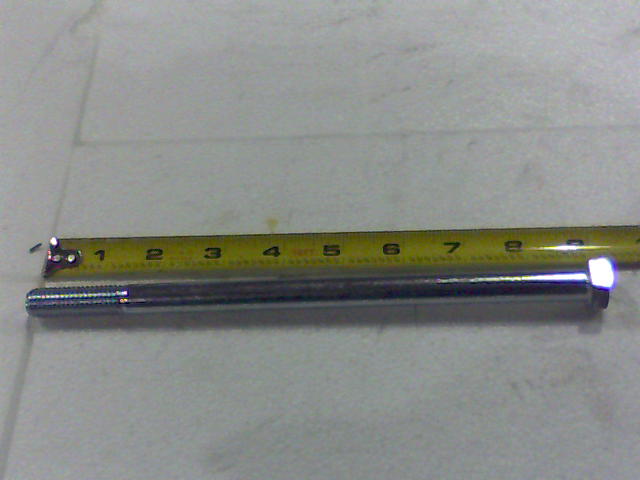

89 018-7010-00 018-7010-00 - 1/2-13 X 9" Hex Bolts Zinc
$5.82
94 018-8051-00 018-8051-00 - 1/4-20 X 9 Carriage Bolts Zinc
$2.99
95 018-8052-00 018-8052-00 - 1/4-20 X 3/4 Hex Bolt
$2.99
110 019-7040-00 019-7040-00 - 1/4 USS Flat Washer Zinc
$2.99
125 025-0028-00 025-0028-00 - Pulley Spacer.75 x 4.375 x.5 ID 2019-2022 Renegade
$9.61
130 025-5203-00 025-5203-00 - Spacer 3/4" OD x 1/2" ID x 0.75"
$3.29
137 026-2224-00 026-2224-00 - Rear Side Cover 2019-2022 Renegade
$199.99
148 029-7038-00 029-7038-00 - 8 Bumper
$28.32
168 033-7027-00 033-7027-00 - Horizontal Rear V Pulley
$46.84

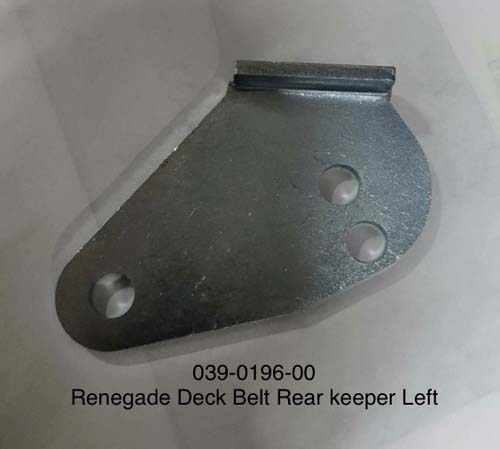

180 039-0196-00 039-0196-00 Rear Deck Belt Keep-LH-Plated
$2.99

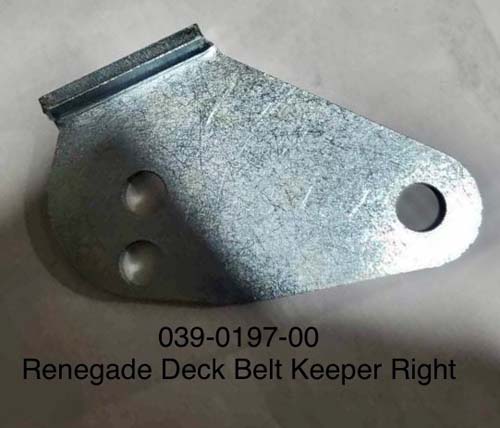

181 039-0197-00 039-0197-00 Rear Deck Belt Keep-RH-Plated
$2.99
214 064-4000-00 064-4000-00 - Red Battery Cable (See Models Used On For Details)
$23.53
215 064-4001-00 064-4001-00 - Black Battery Cable (See Models Used On For Details)
$22.31
218.1 051-8063-14 051-8063-14 - 14" 3/8 Clear Hose No Clamp
$6.04
218.2 051-8063-24 051-8063-24 - 24" 3/8 Clear Hose No Clamps
$12.48
218.3 067-8052-00 067-8052-00 - 2019-2022 12" Oil Cooler With Fittings (See Models Used On For Details)
$62.46
218.4 072-8065-00 072-8065-00 - 3/8" Hose Clamp - CTB-16-STFS
$2.99
218 067-8052-19 067-8052-19 - Renegade Oil Cooler-Assy
$70.97
230 070-5373-19 070-5373-19 - 2019-2022 Horizontal Gas Frame Welded Assembly
$1461.53
266 091-4032-00 091-4032-00 - 2019-2022 Renegade Pump Belt Route Decal
$7.25
