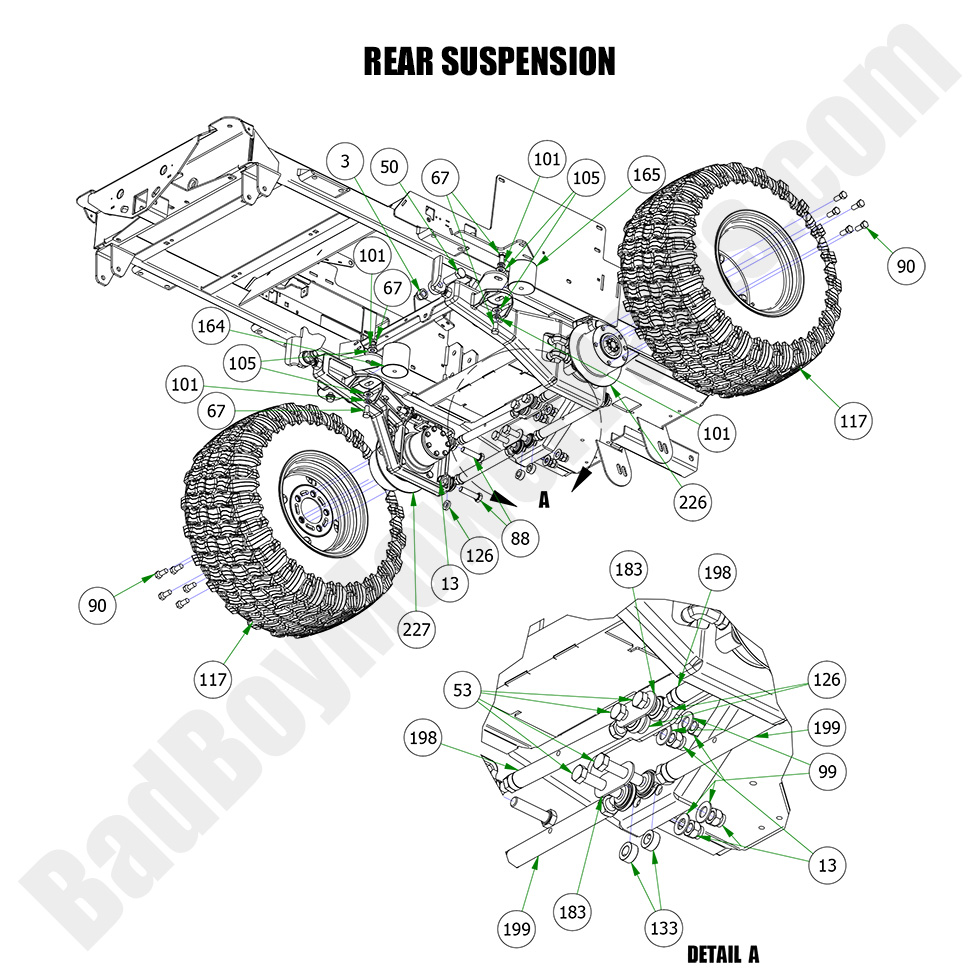

2023 Renegade - Gas - Rear Suspension

2023 Renegade - Gas - Rear Suspension

The 2023 Renegade - Gas Rear Suspension ensures a smooth ride and stability, especially on rough terrains. If you're replacing parts or need to repair your suspension system, Bad Boy Mower Part diagrams offer clear, easy-to-follow guides to help you get the job done right. At BadBoyMowerParts.com, we have a vast selection of Bad Boy Mower Parts designed specifically for your mower’s rear suspension. Whether you're in need of springs, shock absorbers, or mounts, we have the Bad Boy Lawn Mower Parts you need. With Bad Boy Parts Online, you can shop conveniently from home and find all the necessary components. Plus, we offer Free Shipping On Orders Over $100, so you can get the parts you need without worrying about additional shipping fees.

Bad Boy Mower Parts Lookup

2023 Renegade - Gas - Rear Suspension
  Position Number SKU Product Title Price
3 013-0023-00 013-0023-00 - 3/4" Course Thread Nylon Lock Nut
$7.36
13 013-7021-00 013-7021-00 - 5/8-11 Nylon Insert Locknut Zinc
$2.99
50 018-0045-00 018-0045-00 - 3/4 x 2 1/2 Course Thread Bolt
$2.99
53 018-0049-00 018-0049-00 - 5/8-11 x 2 3/4 Hex Head Bolt
$4.39
67 018-2030-00 018-2030-00 - 1/2 x 1 Bolt
$2.99
88 018-6059-00 018-6059-00 - 5/8-11 X 2-1/2 Hex Bolts
$2.99
90 018-7033-00 018-7033-00 - 1/2-20 X 1-1/2 Lug Bolts Zinc
$2.99
99 019-0009-00 019-0009-00 - 5/8" Flat Washer SAE Spec Grade 8
$2.99
101 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
105 019-5702-00 019-5702-00 - 1/2 SAE Flat Washer GR 8
$2.99
117 022-4090-00 022-4090-00 - 26x12-12 Reaper Tire/Wheel Assembly
$371.99
126 025-0071-00 025-0071-00 - Spacer 1.125 OD X .625 ID X .250 Length
$14.19
133 025-7020-00 025-7020-00 - 5/8 Set Collar w/One Set Screw
$4.37
164 032-8999-00 032-8999-00 - Vibration Mount - Blue Dot Rear Mount for Diesel Models
$64.22
165 032-9000-00 032-9000-00 - Isolator - Green Dot
$70.97
183 039-2145-00 039-2145-00 - Suspension Gusset (See Models Used On For Details)
$14.19
198 048-6061-00 048-6061-00 - Rear Radius Rod W/ Greaseable Heim (See Models Used On For Detail)
$58.84
199 048-6064-00 048-6064-00 - Suspension linkage (3/4 body | 5/8 Hole)
$78.08
