2023 Renegade - Gas - Seat & Brake

2023 Renegade - Gas - Seat & Brake

The 2023 Renegade - Gas Seat & Brake are critical for both safety and comfort while operating your mower. If you're in need of replacement parts for your seat or brake system, Bad Boy Mower Part diagrams will help you quickly find what you need. Bad Boy Mower Parts offers a range of components including seat cushions, backrests, and brake assemblies, all designed to keep your mower functioning safely and comfortably. Browse through our selection of Bad Boy Lawn Mower Parts to find the perfect match for your mower. Shopping Bad Boy Parts Online is simple, and with Free Shipping On Orders Over $100, you can save on your order while ensuring your mower’s seat and brake system stay in top shape.

Bad Boy Mower Parts Lookup

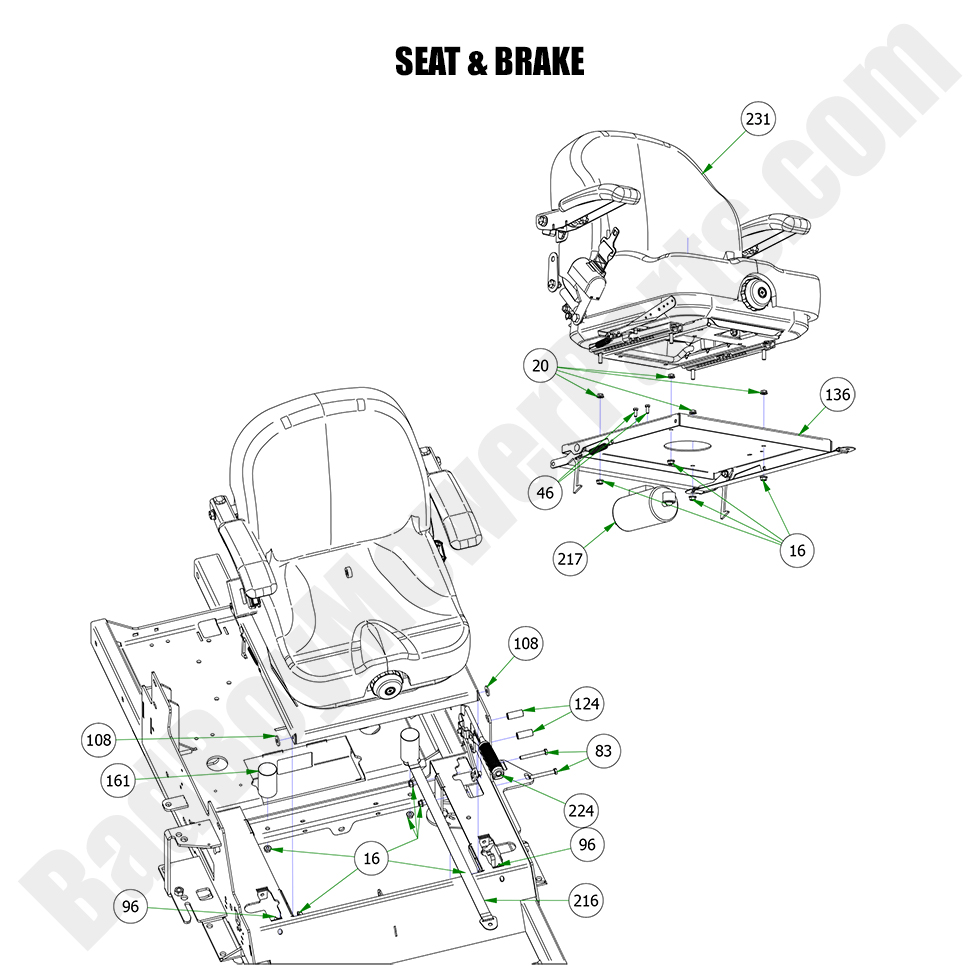

2023 Renegade - Gas - Seat & Brake
  Position Number SKU Product Title Price
16 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
20 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
46 018-0024-00 018-0024-00 - M6-1.0 X 16MM HEX BOLT
$2.99
83 018-5344-00 018-5344-00 - 5/16 x 2 1/2 Bolt
$2.99
96 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
108 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
124 025-0027-00 025-0027-00 - Brake Handle Spacer.625 x 1.5 2019-2022 Rebel, Renegade & Rogue
$7.25
136 026-2019-21 026-2019-21 - R-Series Seat Plate Assembly
$149.99
161 032-0001-00 032-0001-00 - Rubber Bumper (Seat) 2019-2022 Rebel, Renegade & Rogue
$23.41
216 064-8083-00 064-8083-00 Seat Strap w/Buckles
$24.60
217 067-0020-19 067-0020-19 - EPA Cannister Assembly Rebel/Renegade Gas/Rogue (See Models Used On For Details)
$47.62
224 069-0001-00 069-0001-00 - Brake Handle Assembly (See Models Used On For Details)
$132.68
231 071-6065-22 071-6065-22 - Suspension Seat with Seatbelt (See Models Used On For Details) (obsolete)
use part #071-6065-25
$829.99
