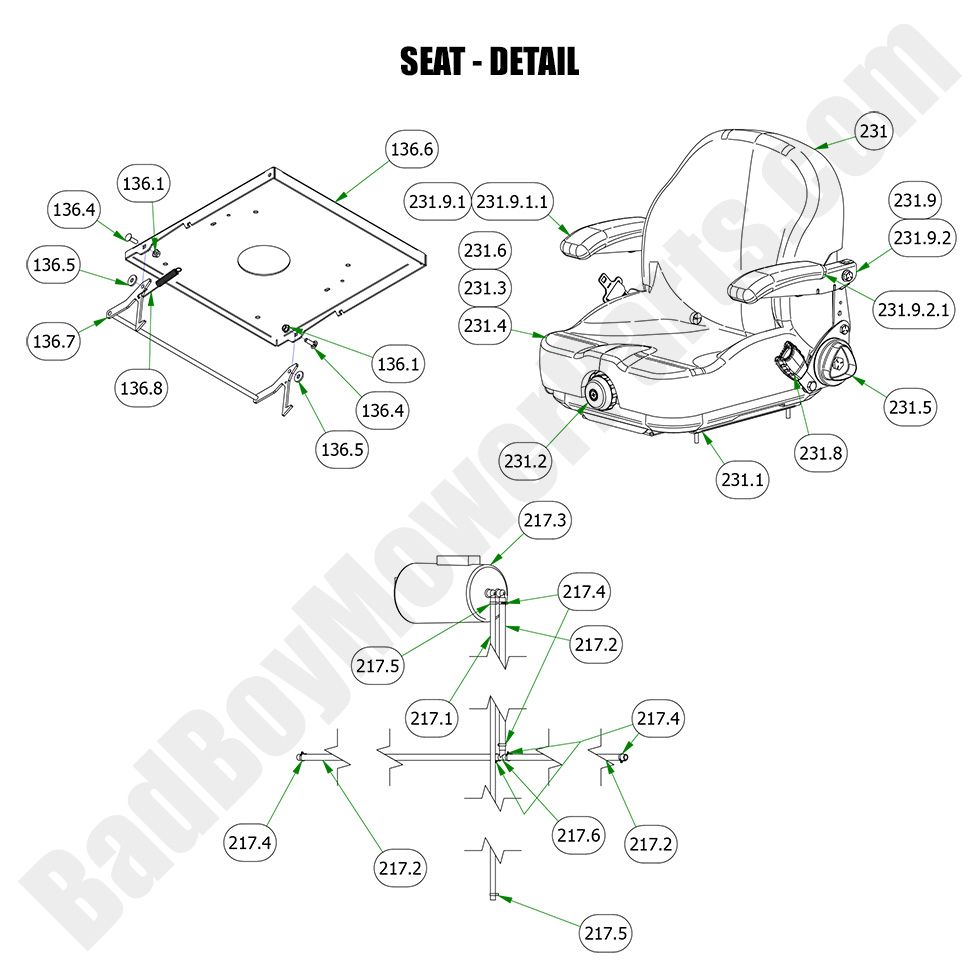

2023 Renegade - Gas - Seat - Detail

2023 Renegade - Gas - Seat - Detail

The 2023 Renegade - Gas Seat - Detail is crucial for the comfort and support of the operator. If you’re experiencing issues with your seat or need to replace it, Bad Boy Mower Part diagrams can help you identify the specific components required. At BadBoyMowerParts.com, we offer a selection of Bad Boy Mower Parts that include seat frames, cushions, and hardware. Whether you need a more comfortable seat or a seat with added durability, our Bad Boy Lawn Mower Parts will meet your needs. You can conveniently shop for Bad Boy Parts Online, and don’t forget that we offer Free Shipping On Orders Over $100 to make replacing or upgrading your seat easy and affordable. Keep your mower comfortable and functional with the right seat parts for the job.

Bad Boy Mower Parts Lookup

2023 Renegade - Gas - Seat - Detail
  Position Number SKU Product Title Price
136.1 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
136.4 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
136.5 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
136.6 026-2019-00 026-2019-00 - Seat Plate 2019-2024 Rebel, Renegade & Rogue
$99.32
136.7 028-0090-00 028-0090-00 - Seat Latch Rod Assembly (See Models Used On For Detail)
$38.97
136.8 034-1025-00 034-1025-00 - Brake Spring (See Models Used On For Detail)
$12.48
217.1 051-2025-66 051-2025-66 - 66" 3/16 Vinyl EPA Line
$13.26
217.2 051-8072-38 051-8072-38 - 38" 1/4 Vinyl Tubing
$28.39
217.3 067-0020-00 067-0020-00 - Carbon Canister
$62.40
217.4 072-8070-00 072-8070-00 - Tank Hose Clamp 3/16 (See Models Used On For Detail)
$2.99
217.5 072-8073-00 072-8073-00 - 3/16" Vinyl Hose Clamp
$2.99
217.6 073-8068-00 073-8068-00 - Fuel Line T
$9.70
231.1 071-6065-06 071-6065-06 - Tracks for 071-6065-00 (See Models Used On For Details)
$99.37
231.2 071-6065-05 071-6065-05 - Weight Adjustment Knob for 071-6065-00
$32.09
231.3 071-6065-13 071-6065-13 Bellows w/Hardware for 071-6065-22
$64.19
231.4 071-6065-16 071-6065-16 Cushion Cover Kit for I3M - Logo for 071-6065-22
$153.99
231.5 071-6065-10 071-6065-10 - Recliner Adjustment Knob
$32.09
231.6 071-6065-07 071-6065-07 - Seat Switch for 071-6065-00
$21.28
231.8 071-6063-00 071-6063-00 - Seatbelt Kit for 071-6065-00
$119.99
231.9.1.1 071-6065-03 071-6065-03 - Arm Pad for 071-6065-00
$33.16
231.9.1 071-6065-11 071-6065-11 RH Armrest-Selfskin Front Adj. for 071-6065-22
$119.99
231.9.2 071-6065-12 071-6065-12 - LH Armrest-Selfskin Front Adj. for 071-6065-22
$119.99
231.9 071-6065-04 071-6065-04 - Arm Kit for 071-6065-00
$136.99
231 071-6065-22 071-6065-22 - Suspension Seat with Seatbelt (See Models Used On For Details) (obsolete)
use part #071-6065-25
$829.99
