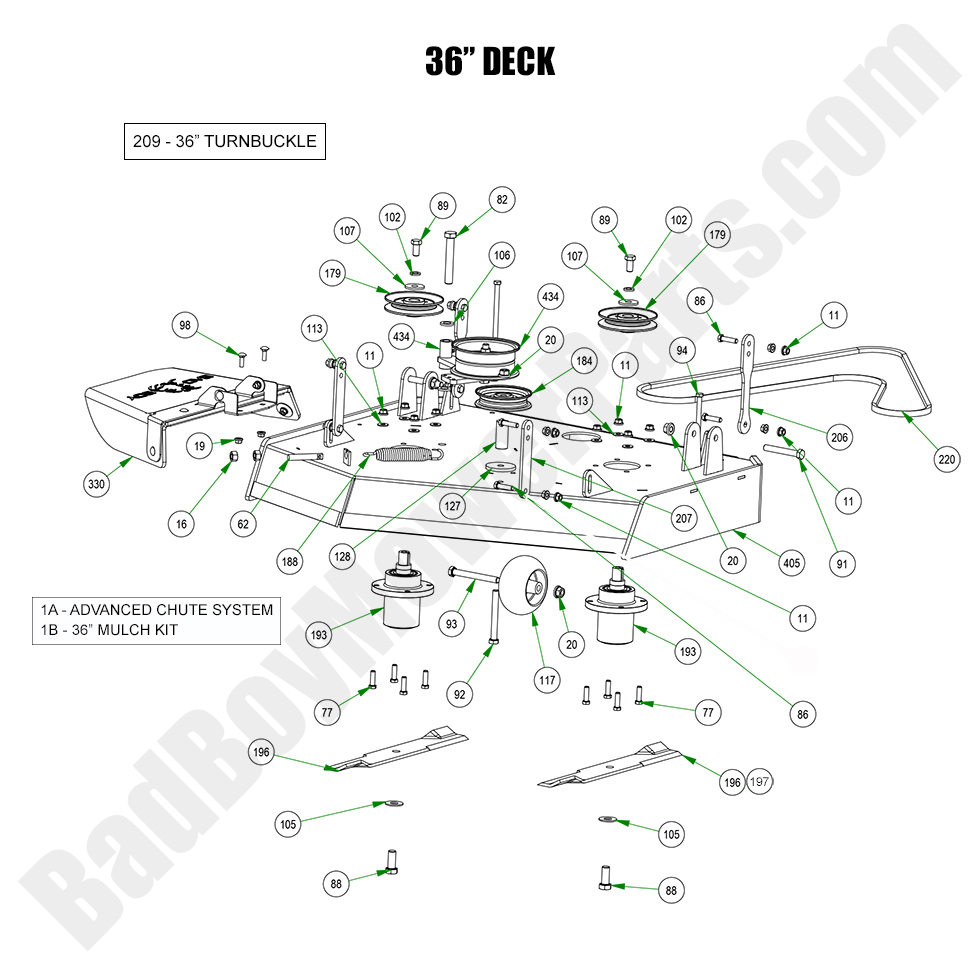

2023 Revolt - 36" Deck Assembly

2023 Revolt - 36" Deck Assembly

If you're looking to replace or repair the 2023 Revolt 36" Deck Assembly, Bad Boy Mower Part diagrams are an essential tool for locating the exact parts. At BadBoyMowerParts.com, we provide comprehensive diagrams and a wide selection of Bad Boy Mower Parts to ensure a perfect fit for your 36" deck. Whether you need new blades, pulleys, or belts, our Bad Boy Lawn Mower Parts are designed to keep your mower running efficiently. Shopping for Bad Boy Parts Online is easy, and with Free Shipping On Orders Over $100, you’ll have your deck assembly parts delivered right to your door.

Bad Boy Mower Parts Lookup

2023 Revolt - 36" Deck Assembly
  Position Number SKU Product Title Price
1A 088-6036-00 088-6036-00 - Advanced Chute System for the Revolt with 36" Decks
$249.00
1B 210-0136-50 210-0136-50 - 36" Mulch Kit w/Wavy Blades Revolt
$318.45
11 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
16 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
19 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
20 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
62 018-2004-50 018-2004-50 - All Thread (See Models Used On For Details)
$12.94
77 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 Hex Bolt
$2.99
82 018-5311-00 018-5311-00 - 5/8-11 X 4" Hex Bolts Zinc
$4.06
86 018-6012-00 018-6012-00 - 3/8 x 1 1/2 Bolt
$2.99
88 018-6020-00 018-6020-00 - 5/8-18 X 1-1/2 GR 8 Hex Bolts Zinc Yellow for Blade Spindle
$2.99
89 018-6023-00 018-6023-00 - 1/2-20 x 1 Hex ZC No Longer Available
Obsolete.
91 018-6054-00 018-6054-00 - 1/2-13 X 3-1/2 Hex Bolts
$2.99
92 018-7049-00 018-7049-00 - 1/2 -13 x 4.25 gr. 5 hex bolt
$2.99
93 018-7050-00 018-7050-00 - 1/2-13 X 4-1/2 Hex Bolts
$2.99
94 018-7060-00 018-7060-00 - 3/8-16 x 5 1/2 Hex Bolt -
$2.99
98 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
102 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
105 019-5038-00 019-5038-00 - 5/8 Flat Washer
$2.99
106` 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
107 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
113 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
117 022-1001-00 022-1001-00 - Deck Wheel (See Models Used On For Detail)
$17.11
127 025-0025-00 025-0025-00 - Round Spacer (See Models Used On For Details)
$7.28
128 025-0032-00 025-0032-00 - Stationary Idler Spacer (See Models Used On For Details)
$8.46
179 033-4820-00 033-4820-00 - Spindle Pulley - 42"/48" MZ/MZ Magnum, 34"/36" Revolt/Revolt SD
$31.22
184 033-7026-00 033-7026-00 - 5" V Idler Pulley with 1/2" Bore (See Models Used On For Details)
$35.48
188 034-2009-00 034-2009-00 - Deck/Pump Idler Spring (See Models Used On For Detail)
$18.18
193 037-2002-00 037-2002-00 - Revolt SD 34" and 42" Decks, Revolt 36" Deck Spindle (See Models Used On For Details)
$212.29
196 038-3010-00 038-3010-00 - 36 & 52" High Lift Fusion Blade
$22.99
197 038-5203-00 038-5203-00 - 36" & 52" Gator Mulching Blade
$22.99
206 039-2128-00 039-2128-00 - Stand On Deck Hanger Rear (See Models Used On For Details)
$14.19
207 039-2129-00 039-2129-00 - Stand On Deck Hanger Front (See Models Used On For Detail)
$16.04
209 048-6000-00 048-6000-00 - Maverick/Compact Outlaw/Revolt Toplink
$80.24
220 041-8054-00 041-8054-00 - Deck Belt 2020-Newer Revolt and Walk Behind (See Models Used On For Details)
$80.24
330 210-6016-98 210-6016-98 - 36" Stand On Chute Assembly
$145.95

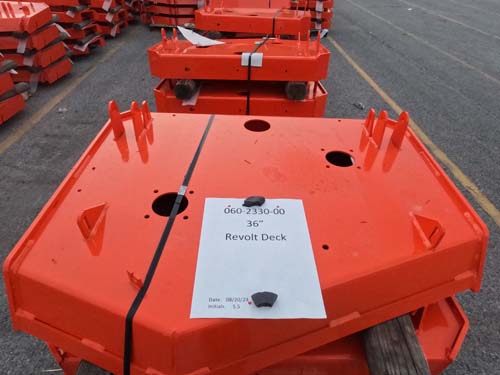

405 060-2330-00 060-2330-00 - 2023-2024 36" Revolt Deck--Painted
$1399.99
434 039-6952-98 039-6952-98 - 36" Revolt Deck Idler Assembly (See Models Used On For Detail)
$70.61
