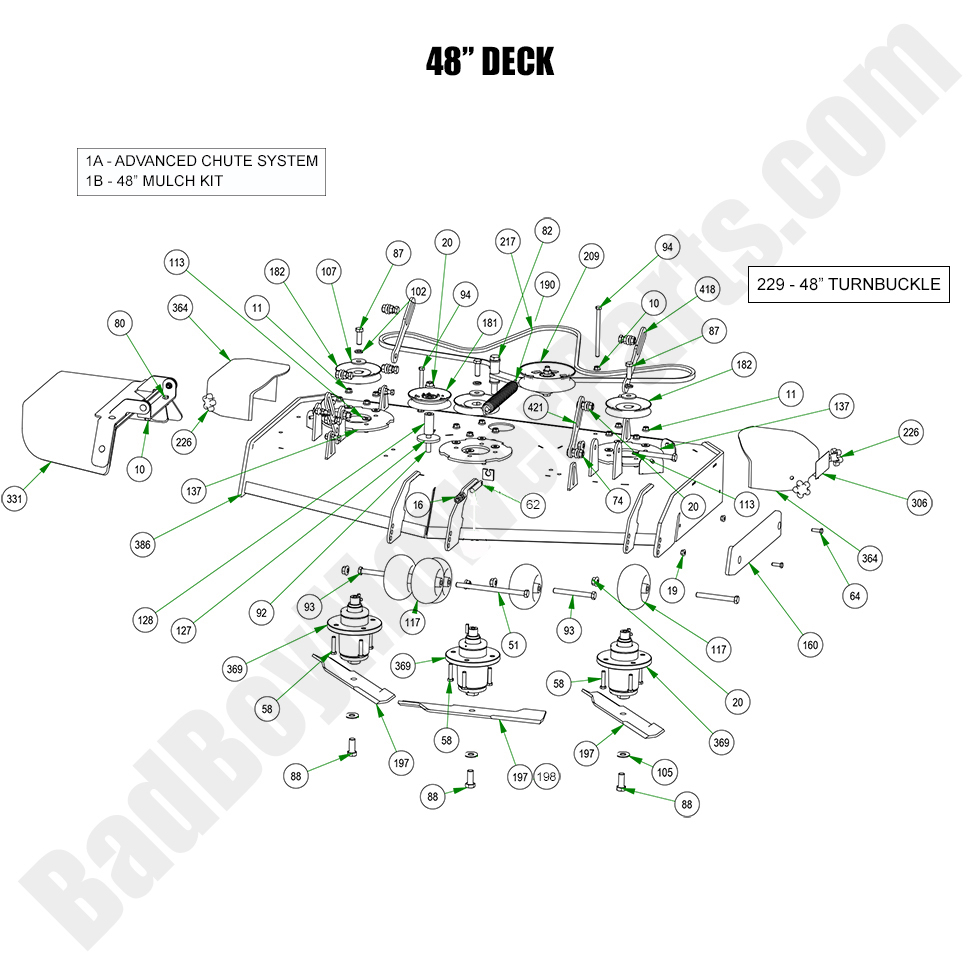

2023 Revolt - 48" Deck Assembly

2023 Revolt - 48" Deck Assembly

The 2023 Revolt 48" Deck Assembly is an essential part of your mower's cutting performance. Bad Boy Mower Part diagrams at BadBoyMowerParts.com provide you with all the information you need to properly maintain or replace the deck components. We carry a wide variety of Bad Boy Mower Parts, including pulleys, belts, and blades, for your 48" deck. Bad Boy Lawn Mower Parts are made to ensure the durability and performance of your mower. Shopping Bad Boy Parts Online is quick and easy, and with Free Shipping On Orders Over $100, you won’t pay extra for delivery.

Bad Boy Mower Parts Lookup

2023 Revolt - 48" Deck Assembly
  Position Number SKU Product Title Price
1A 088-6048-00 088-6048-00 - Advanced Chute System for Revolt 48", 54", and 61" Decks
$249.00
1B 210-0349-00 210-0349-00 - Revolt 48" Mulch Kit w/Blades
$318.45
10 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
11 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
16 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
19 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
20 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
51 018-0046-00 018-0046-00 - 1/2-13 x 8" Hex Bolt
$4.06
58 018-0075-00 018-0075-00 - 3/8-16 x 1-3/4 Hex C/S () ZC
$3.29
62 018-2004-50 018-2004-50 - All Thread (See Models Used On For Details)
$12.94
64 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
74 018-5006-00 018-5006-00 - 1/2-13 X 1-1/2 Hex Bolt, Coarse Thread Bolt (For Use On Spindles Please Refer To Item Details)
$2.99
80 018-5250-00 018-5250-00 - 3/8-16 X 3/4 Hex Bolts
$2.99
82 018-5311-00 018-5311-00 - 5/8-11 X 4" Hex Bolts Zinc
$4.06
87 018-6019-00 018-6019-00 - 1/2-20 X 1-1/2 Bolt Zinc, Fine Thread Bolt
$2.99
88 018-6020-00 018-6020-00 - 5/8-18 X 1-1/2 GR 8 Hex Bolts Zinc Yellow for Blade Spindle
$2.99
92 018-7049-00 018-7049-00 - 1/2 -13 x 4.25 gr. 5 hex bolt
$2.99
93 018-7050-00 018-7050-00 - 1/2-13 X 4-1/2 Hex Bolts
$2.99
94 018-7060-00 018-7060-00 - 3/8-16 x 5 1/2 Hex Bolt -
$2.99
102 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
105 019-5038-00 019-5038-00 - 5/8 Flat Washer
$2.99
107 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
113 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
117 022-1001-00 022-1001-00 - Deck Wheel (See Models Used On For Detail)
$17.11
127 025-0025-00 025-0025-00 - Round Spacer (See Models Used On For Details)
$7.28
128 025-0032-00 025-0032-00 - Stationary Idler Spacer (See Models Used On For Details)
$8.46
137 026-0025-00 026-0025-00 - Deck Spindle Support Plate
$14.19
160 029-7036-00 029-7036-00 - Deck Trim Bumper
$23.41
181 033-6001-00 033-6001-00 - 4 3/4 Idler Pulley (See Models Used On For Details)
$31.22
182 033-6003-00 033-6003-00 - 5" Spindle Deck Pulley - DB-80 (without set screw) (See Models Used On For Details)
$42.58
190 034-2030-00 034-2030-00 - 2019-Newer Deck Spring (See Models Used On For Details)
$31.22
197 038-5350-00 038-5350-00 - 48"/50" High Lift Fusion Blade
$22.99
198 038-5000-00 038-5000-00 - 48"/50" Gator Mulching Blade
$22.99
209 039-6945-19 039-6945-19 - Revolt Deck Idler Assembly
$70.97
217 041-5200-00 041-5200-00 - Deck Belt (Not for 48"/50" ZT)
$80.24
226 045-6043-00 045-6043-00 - Black Plastic Knob Spindle Cover
$4.39
229 048-7000-00 048-7000-00 - Toplink-Outlaw Decks (See Models Used On For Details) (obsolete)
use part #048-8000-00
$80.24
306 091-3012-00 091-3012-00 - Danger Decal-Spindle/Discharge
$2.99
331 210-7000-98 210-7000-98 - Chute Assembly (See Models Used On for Detail)
$159.22
364 014-4006-00 014-4006-00 - 2023 Revolt Pulley Covers
$21.39
369 037-6015-50 037-6015-50 - Spindle Assembly (See Models Used On For Detail)
$199.99
386 060-2326-00 060-2326-00 - 2023 48" Revolt Deck--Painted
$1399.99
418 039-0245-00 039-0245-00 - 48"/54" Rear Deck Hanger--Black
$21.39
