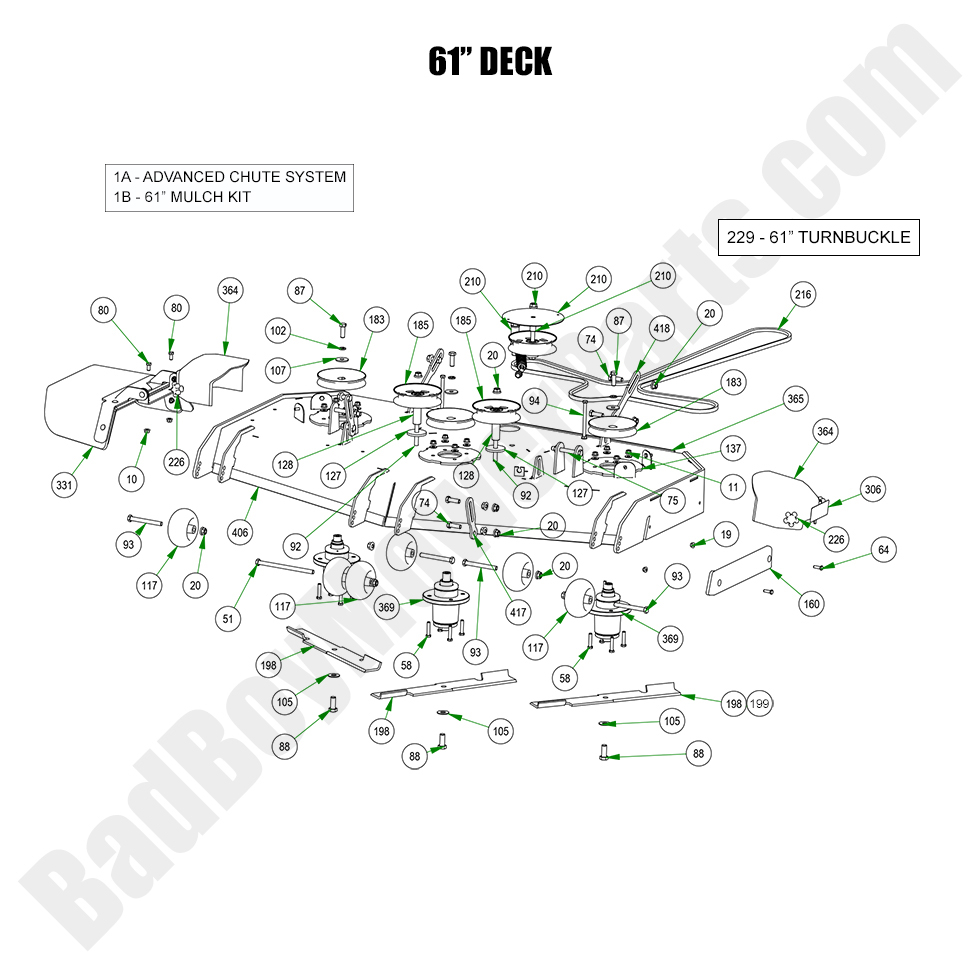

2023 Revolt - 61" Deck Assembly

2023 Revolt - 61" Deck Assembly

The 2023 Revolt 61" Deck Assembly is perfect for those who need extra cutting power and efficiency. BadBoyMowerParts.com offers a complete selection of Bad Boy Mower Parts to help you maintain or replace the components of your 61" deck. Our Bad Boy Lawn Mower Parts are designed for durability, providing you with long-lasting solutions. By using Bad Boy Mower Part diagrams, you can easily identify the necessary parts to restore your deck to peak performance. Plus, with Free Shipping On Orders Over $100, you can order everything you need without worrying about extra shipping costs.

Bad Boy Mower Parts Lookup

2023 Revolt - 61" Deck Assembly
  Position Number SKU Product Title Price
1A 088-6048-00 088-6048-00 - Advanced Chute System for Revolt 48", 54", and 61" Decks
$249.00
1B 210-0361-00 210-0361-00 - Revolt/Rebel/Rogue/Renegade 61" Mulch Kit w/Blades
$318.45
10 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
11 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
19 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
20 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
51 018-0046-00 018-0046-00 - 1/2-13 x 8" Hex Bolt
$4.06
58 018-0075-00 018-0075-00 - 3/8-16 x 1-3/4 Hex C/S () ZC
$3.29
64 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
74 018-5006-00 018-5006-00 - 1/2-13 X 1-1/2 Hex Bolt, Coarse Thread Bolt (For Use On Spindles Please Refer To Item Details)
$2.99
75 018-5019-00 018-5019-00 - 1/2-13 X 4 GR 8 Hex Bolt
$4.39
80 018-5250-00 018-5250-00 - 3/8-16 X 3/4 Hex Bolts
$2.99
87 018-6019-00 018-6019-00 - 1/2-20 X 1-1/2 Bolt Zinc, Fine Thread Bolt
$2.99
88 018-6020-00 018-6020-00 - 5/8-18 X 1-1/2 GR 8 Hex Bolts Zinc Yellow for Blade Spindle
$2.99
92 018-7049-00 018-7049-00 - 1/2 -13 x 4.25 gr. 5 hex bolt
$2.99
93 018-7050-00 018-7050-00 - 1/2-13 X 4-1/2 Hex Bolts
$2.99
94 018-7060-00 018-7060-00 - 3/8-16 x 5 1/2 Hex Bolt -
$2.99
102 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
105 019-5038-00 019-5038-00 - 5/8 Flat Washer
$2.99
107 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
117 022-1001-00 022-1001-00 - Deck Wheel (See Models Used On For Detail)
$17.11
127 025-0025-00 025-0025-00 - Round Spacer (See Models Used On For Details)
$7.28
128 025-0032-00 025-0032-00 - Stationary Idler Spacer (See Models Used On For Details)
$8.46
137 026-0025-00 026-0025-00 - Deck Spindle Support Plate
$14.19
160 029-7036-00 029-7036-00 - Deck Trim Bumper
$23.41
183 033-6004-00 033-6004-00 - 6 1/4" Spindle Deck Pulley (without set screw) (See Models Used On For Detail)
$35.48
185 033-7201-25 033-7201-25 - 5 3/4 Idler Pulley
$35.48
198 038-6080-00 038-6080-00 - 61" High Lift Fusion Blade
$22.99
199 038-6081-00 038-6081-00 - 61" Gator Blade for Outlaw
$22.99
210 039-6945-20 039-6945-20 - Idler Assembly (61" Deck)
$58.84
216 041-4022-00 041-4022-00 - B138 Deck Belt (See Models Used On For More Details, Not For 54" CZT/Stand-On)
$78.01
226 045-6043-00 045-6043-00 - Black Plastic Knob Spindle Cover
$4.39
229 048-7000-00 048-7000-00 - Toplink-Outlaw Decks (See Models Used On For Details) (obsolete)
use part #048-8000-00
$80.24
306 091-3012-00 091-3012-00 - Danger Decal-Spindle/Discharge
$2.99
331 210-7000-98 210-7000-98 - Chute Assembly (See Models Used On for Detail)
$159.22
364 014-4006-00 014-4006-00 - 2023 Revolt Pulley Covers
$21.39
369 037-6015-50 037-6015-50 - Spindle Assembly (See Models Used On For Detail)
$199.99
406 060-2328-00 060-2328-00 - 2023 61" Revolt Deck--Painted
$1399.99
417 039-0244-00 039-0244-00 - 61" Front Deck Hanger--Black
$21.39
418 039-0245-00 039-0245-00 - 48"/54" Rear Deck Hanger--Black
$21.39
