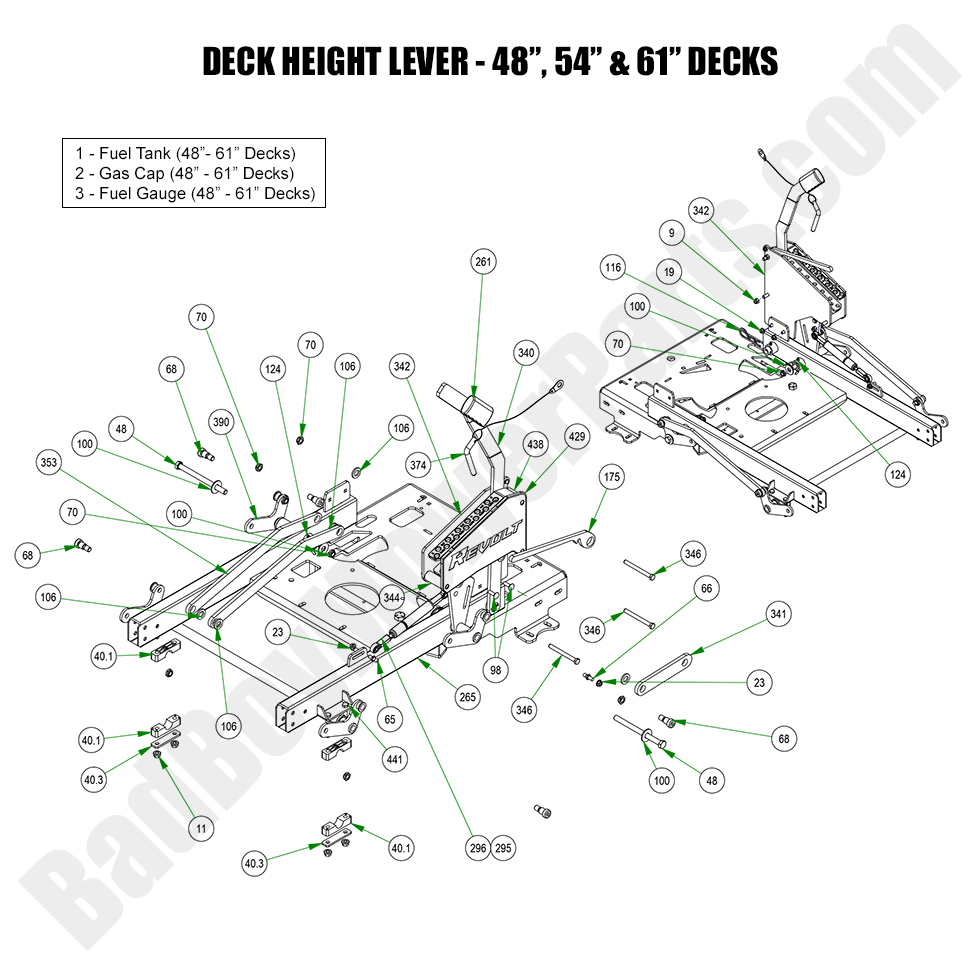

2023 Revolt - Deck Height Lever

2023 Revolt - Deck Height Lever

The 2023 Revolt Deck Height Lever plays a crucial role in adjusting the cutting height of your mower, allowing for precision and consistency. If you need to replace or repair this component, Bad Boy Mower Part diagrams are a valuable resource. At BadBoyMowerParts.com, we offer a wide selection of Bad Boy Mower Parts, including deck height levers, springs, and hardware that ensure smooth operation. Whether you're fine-tuning your mower for different terrains or making repairs, our Bad Boy Lawn Mower Parts provide the quality you need. Shopping for Bad Boy Parts Online is convenient, and with Free Shipping On Orders Over $100, you can maintain your mower without worrying about extra delivery fees.

Bad Boy Mower Parts Lookup

2023 Revolt - Deck Height Lever
  Position Number SKU Product Title Price
1 067-0030-23 067-0030-23 - 2023 Revolt Tank 48,54,61 DECKS ONLY
$484.99
2 066-8070-00 066-8070-00 - Revolt fuel cap (See Models Used On For Details)
$32.09

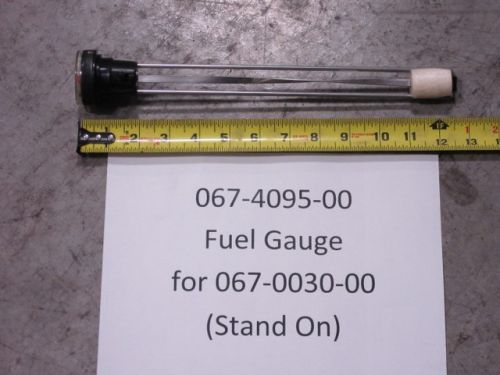

3 067-4095-00 067-4095-00 - Fuel Gauge for 067-0030-00 (See Models Used On For Details)
$50.28
9 013-5041-00 013-5041-00 - 3/8-16 Nylon Insert Locknut Zinc
$2.99
11 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
19 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
23 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
40.1 017-9077-00 017-9077-00 - Pillow Block-Male
$21.28
40.3 017-9079-00 017-9079-00 - Pillow Block-Metal Plate
$21.28
48 018-0038-00 018-0038-00 - 1/2-13 x 7" Carriage Bolt
$2.99
65 018-2050-00 018-2050-00 - 10mm Damper Ball Stud-Steering Damper, Outlaw Deck Damper
$2.99
66 018-2055-00 018-2055-00 - 10mm Damper Stud-XP Linkage
$2.99
68 018-3001-00 018-3001-00 - 5/8 x 5/8 Shoulder Bolt
$15.61
70 018-4010-00 018-4010-00 - 1/2-13 Nylon Insert Jam Locknut Zinc Orange Nylon
$2.99
98 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
100 019-2040-00 019-2040-00 - 1/2 Flat Washer
$2.99
106 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
116 020-1001-00 020-1001-00 - Zinc-Plated Steel Reusable Cotter Pin No Longer Available
Obsolete.
124 024-3050-00 024-3050-00 - 1/4" Drive-in Grease Fitting (See Models Used On For Details)
$2.99
175 031-0093-00 031-0093-00 - 2019-2022 Stand On Deck Lever Lock
$24.12
261 069-4012-00 069-4012-00 - Revolt Lift Grip (See Models Used On For Details)
$14.19
265 070-5220-19 070-5220-19 - 2019-2022 Revolt Frame
$1149.99
295 087-5400-00 087-5400-00 - 200lb Gas Spring - 54" Outlaw Deck Damper
$62.40
296 087-6100-00 087-6100-00 - 250lb Gas Spring - 61" Outlaw Deck Damper
$78.01

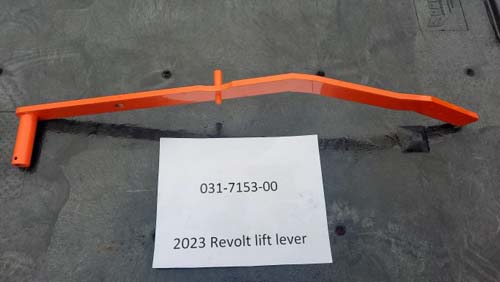

340 031-7153-00 031-7153-00 - 2023 Revolt Lift Lever--Orange
$74.85
344 025-5343-00 025-5343-00 - Revolt Spacer 2.5"
$11.01
346 018-0084-00 018-0084-00 - 3/8 -16 x 3 Hex bolt
$2.99
374 040-4004-00 040-4004-00 - 2023 Revolt Deck Height Pin
$16.04
438 025-0081-00 025-0081-00 - Stand On Spacer 2.5" With Shoulder
$14.97
441 018-0028-00 018-0028-00 - 3/8x2 1/2" Hex Bolt
$4.39
