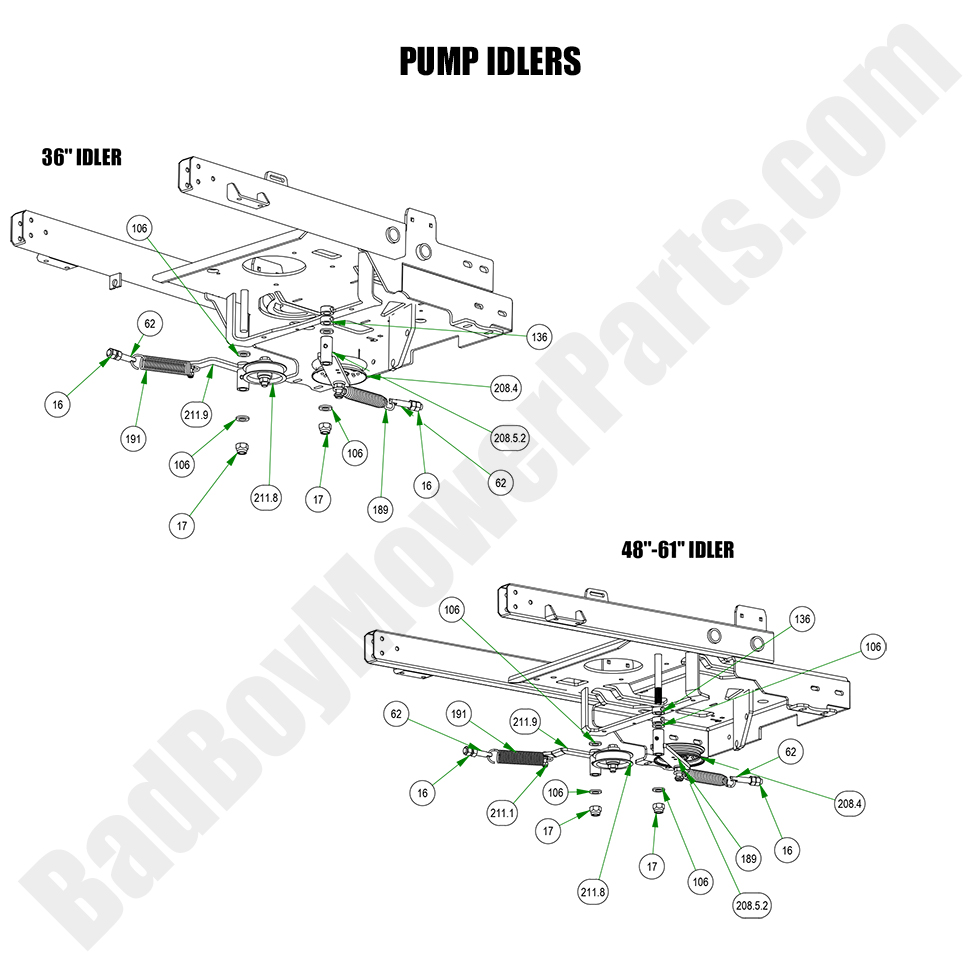

2023 Revolt - Pump Idlers

2023 Revolt - Pump Idlers

The 2023 Revolt Pump Idlers are essential for ensuring the smooth operation of your mower's hydraulic system. These components help regulate belt tension and prevent damage to the system. At BadBoyMowerParts.com, we carry a variety of Bad Boy Mower Parts, including pump idlers and other related components, to keep your mower running efficiently. Whether you’re looking to replace worn-out parts or upgrade your system, our Bad Boy Lawn Mower Parts are high-quality and durable. With the help of Bad Boy Mower Part diagrams, you can easily identify the right components for your needs. Shopping Bad Boy Parts Online is hassle-free, and with Free Shipping On Orders Over $100, you can keep your mower in top condition without any additional shipping costs.

Bad Boy Mower Parts Lookup

2023 Revolt - Pump Idlers
  Position Number SKU Product Title Price
16 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
17 013-7021-00 013-7021-00 - 5/8-11 Nylon Insert Locknut Zinc
$2.99
62 018-2004-50 018-2004-50 - All Thread (See Models Used On For Details)
$12.94
106 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
136 025-7020-00 025-7020-00 - 5/8 Set Collar w/One Set Screw
$4.37
189 034-2020-00 034-2020-00 - Idler Spring (See Models Used On For Detail)
$17.11
191 034-9050-00 034-9050-00 - Pump Idler Spring - Big Diameter
$17.11
208.4 033-6001-00 033-6001-00 - 4 3/4 Idler Pulley (See Models Used On For Details)
$31.22
208.5.2 031-0010-00 031-0010-00 - Deck Idler Lever No Longer Available
Obsolete.
211.1 013-8047-00 013-8047-00 - 5/16-18 Nylon Insert Locknut - Zinc
$2.99
211.8 033-1876-00 033-1876-00 - Horizontal Pump Pulley
$28.39
211.9 039-6947-00 039-6947-00 - 2020-2022 36" Pump Idler Weldment
$32.09
