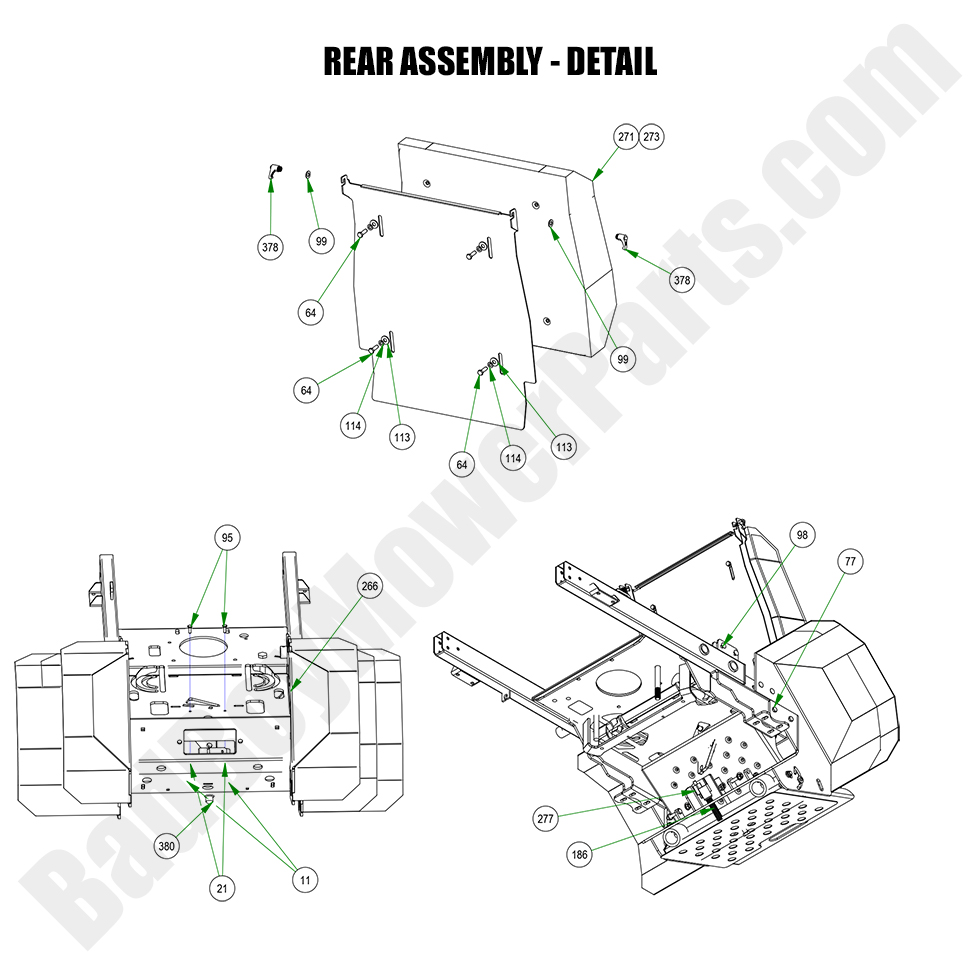

2023 Revolt - Rear Assembly Detail

2023 Revolt - Rear Assembly Detail

The 2023 Revolt Rear Assembly Detail involves various key components that ensure the stability and smooth operation of your mower. Whether you’re repairing a worn part or conducting regular maintenance, Bad Boy Mower Part diagrams provide all the necessary details to help you replace the parts correctly. At BadBoyMowerParts.com, we carry a full line of Bad Boy Mower Parts specifically designed for the rear assembly. From suspension arms to axle brackets, our Bad Boy Lawn Mower Parts ensure your mower operates smoothly and efficiently. Use our online platform to shop for Bad Boy Parts Online, and take advantage of Free Shipping On Orders Over $100 to have your parts delivered directly to you.

Bad Boy Mower Parts Lookup

2023 Revolt - Rear Assembly Detail
  Position Number SKU Product Title Price
11 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
21 013-8073-00 013-8073-00 - 1/4-20 Nylon Insert Locknut Zinc
$2.99
64 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
77 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 Hex Bolt
$2.99
95 018-8052-00 018-8052-00 - 1/4-20 X 3/4 Hex Bolt
$2.99
98 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
99 019-2003-00 019-2003-00 - .390 x .750 x .062 Nylon Washer
$2.99
113 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
114 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
186 034-1001-00 034-1001-00 - 3-1/8" x 0.75 OD x 0.568 ID Compression Spring
$12.83
266 070-5221-20 070-5221-20 - 2020 36" Revolt Frame
$1299.99
271 071-6004-22 071-6004-22 - 2022 48, 54, 61 Revolt seat pad
$210.99
273 071-6006-22 071-6006-22 - 2022 36 revolt seat pad
$264.99
277 077-0002-00 077-0002-00 - Safety Switch (See Models Used On For Detail)
$23.41
378 045-0001-00 045-0001-00 - 2023 Revolt Platform Plastic Knobs
$16.04
380 013-0029-00 013-0029-00 - Hex Nut Cap
$5.49
