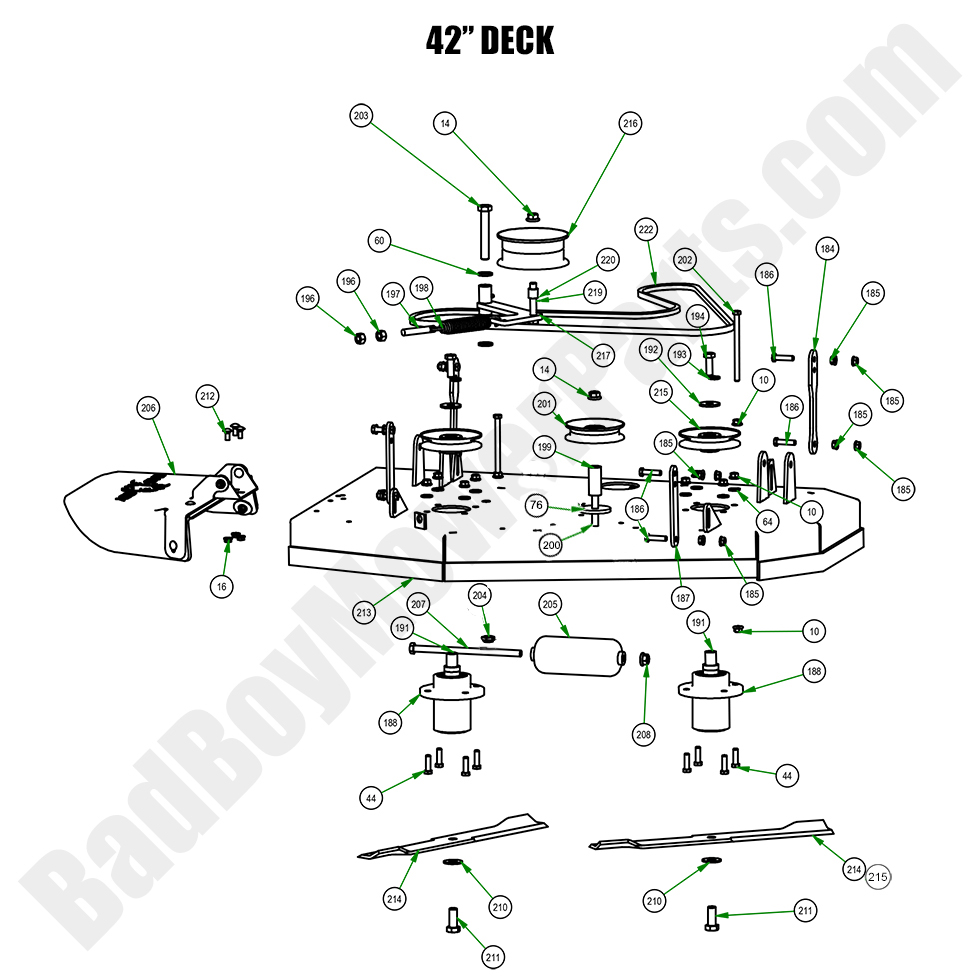

2023 Revolt SD - 42" Deck Assembly

2023 Revolt SD - 42" Deck Assembly

The 2023 Revolt SD 42" Deck Assembly offers great cutting performance and is designed to handle tough mowing tasks. If your deck assembly needs service, Bad Boy Mower Part diagrams are available to guide you in selecting the right parts. BadBoyMowerParts.com stocks a wide selection of Bad Boy Mower Parts for the 42" deck, including blades, pulleys, and spindles. Our Bad Boy Lawn Mower Parts are engineered for longevity and precision, keeping your mower in top condition. With Bad Boy Parts Online, ordering parts is quick and simple, and Free Shipping On Orders Over $100 makes replacing your deck components even more convenient.

Bad Boy Mower Parts Lookup

2023 Revolt SD - 42" Deck Assembly
  Position Number SKU Product Title Price
1A 210-4244-00 210-4244-00 - 42" SD Mulch Kit Assembly
$318.45
1B 088-3642-00 088-3642-00 - 34"/42" Revolt SD ACS Kit
$249.00
10 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
14 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
16 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
44 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 Hex Bolt
$2.99
60 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
64 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
76 025-0025-00 025-0025-00 - Round Spacer (See Models Used On For Details)
$7.28
184 039-2128-00 039-2128-00 - Stand On Deck Hanger Rear (See Models Used On For Details)
$14.19
185 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
186 018-6012-00 018-6012-00 - 3/8 x 1 1/2 Bolt
$2.99
187 039-2129-00 039-2129-00 - Stand On Deck Hanger Front (See Models Used On For Detail)
$16.04
188 037-2002-00 037-2002-00 - Revolt SD 34" and 42" Decks, Revolt 36" Deck Spindle (See Models Used On For Details)
$212.29
191 042-0010-00 042-0010-00 - 3/16 X 1 Square Machine Key
$4.81
192 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
193 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
194 018-6019-00 018-6019-00 - 1/2-20 X 1-1/2 Bolt Zinc, Fine Thread Bolt
$2.99
196 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
197 018-2004-50 018-2004-50 - All Thread (See Models Used On For Details)
$12.94
198 034-2009-00 034-2009-00 - Deck/Pump Idler Spring (See Models Used On For Detail)
$18.18
199 025-0032-00 025-0032-00 - Stationary Idler Spacer (See Models Used On For Details)
$8.46
200 018-7050-00 018-7050-00 - 1/2-13 X 4-1/2 Hex Bolts
$2.99
201 033-7026-00 033-7026-00 - 5" V Idler Pulley with 1/2" Bore (See Models Used On For Details)
$35.48
202 018-7060-00 018-7060-00 - 3/8-16 x 5 1/2 Hex Bolt -
$2.99
203 018-5311-00 018-5311-00 - 5/8-11 X 4" Hex Bolts Zinc
$4.06
204 013-5301-00 013-5301-00 - 5/8-11 Nylon Insert Jam Locknut Zinc
$2.99
205 822-2055-00 822-2055-00 - Revolt SD Deck Roller
$42.75
206 210-6015-98 210-6015-98 - Discharge Chute Assembly (See Models Used On For Detail)
$145.95
207 018-7010-00 018-7010-00 - 1/2-13 X 9" Hex Bolts Zinc
$5.82
208 013-0010-00 013-0010-00 - 1/2-13 Mechanical Lock Nut
$2.99
210 019-5038-00 019-5038-00 - 5/8 Flat Washer
$2.99
211 018-6020-00 018-6020-00 - 5/8-18 X 1-1/2 GR 8 Hex Bolts Zinc Yellow for Blade Spindle
$2.99
212 018-8062-00 018-8062-00 - 5/16-18 X 3/4 Carriage Bolts
$2.99
213 060-1142-00 060-1142-00 - 2023 42" Revolt SD Deck--Painted
$1199.99
214 038-6060-00 038-6060-00 - 60" High Lift Fusion Blade & 2023-2025 Revolt SD 42"
$22.99
215 038-6003-00 038-6003-00 - 60" Gator Mulching Blade & 2023-2025 Revolt SD 42"
$22.99
215 033-4301-00 033-4301-00 - Spindle Pulley
$42.58
216 033-5000-00 033-5000-00 - 5 3/4" Double Bearing Flat Idler Pulley (See Description For Details)
$56.77
217 039-6952-00 039-6952-00 - Deck Idler Arm
$10.99
219 018-7016-00 018-7016-00 - 1/2-13 X 3 Hex Bolts Zinc
$2.99
220 025-5203-00 025-5203-00 - Spacer 3/4" OD x 1/2" ID x 0.75"
$3.29
222 041-4023-00 041-4023-00 - 42" Deck Belt
$78.01
