2023 Revolt SD - Deck Height Assembly

2023 Revolt SD - Deck Height Assembly

The 2023 Revolt SD Deck Height Assembly is crucial for adjusting the cutting height of your mower, ensuring a clean and precise cut on various grass types. If this part needs replacement, Bad Boy Mower Part diagrams can help you identify the correct components. At BadBoyMowerParts.com, we provide a wide selection of Bad Boy Mower Parts for the deck height assembly, including levers, springs, and height adjustment kits. Our Bad Boy Lawn Mower Parts are designed for durability, allowing you to maintain your mower for the long term. Shopping Bad Boy Parts Online is fast and convenient, and with Free Shipping On Orders Over $100, you won’t have to worry about shipping costs.

Bad Boy Mower Parts Lookup

2023 Revolt SD - Deck Height Assembly
  Position Number SKU Product Title Price
7 013-2050-00 013-2050-00 - 1/4-20 Nylon Insert Flange Nut
$2.99
9 013-5041-00 013-5041-00 - 3/8-16 Nylon Insert Locknut Zinc
$2.99
10 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
14 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99

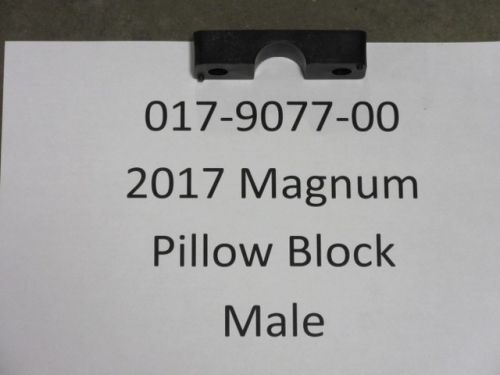

22 017-9077-00 017-9077-00 - Pillow Block-Male
$21.28

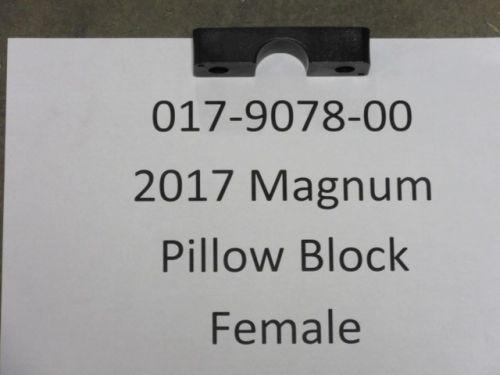

23 017-9078-00 017-9078-00 - Pillow Block-Female (obsolete)
use part #017-9077-00
$21.28

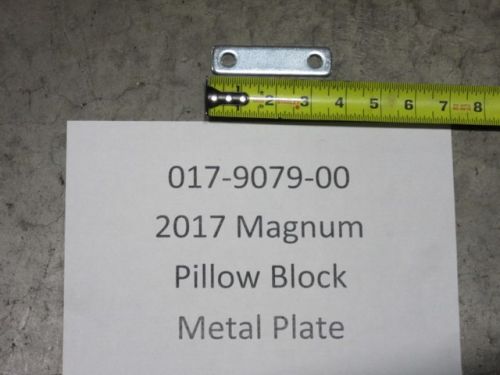

24 017-9079-00 017-9079-00 - Pillow Block-Metal Plate
$21.28
27 018-0028-00 018-0028-00 - 3/8x2 1/2" Hex Bolt
$4.39
31 018-0058-00 018-0058-00 - 1/4"-20 x 3/4 Black Oxide 18-8 Stainless Pan Head No Longer Available
Obsolete.
33 018-0062-00 018-0062-00 - 1/2-13 X 6 Hex Head Bolt Gr5
$3.29
34 018-1010-00 018-1010-00 - 3/8-16 x 3-1/2 Hex Bolt
$2.99
37 018-1090-00 018-1090-00 - 1/2-13x5 1/2 Hex Bolt
$3.29
38 018-2005-00 018-2005-00 - 3/8-16 X 4-1/4 Hex Bolt
$2.99
41 018-3001-00 018-3001-00 - 5/8 x 5/8 Shoulder Bolt
$15.61
42 018-4010-00 018-4010-00 - 1/2-13 Nylon Insert Jam Locknut Zinc Orange Nylon
$2.99
45 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
47 018-5200-00 018-5200-00 - 10-24 X 5/8 BS C/S 18-8 SS
$2.99
56 019-2040-00 019-2040-00 - 1/2 Flat Washer
$2.99
60 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
66 019-8054-00 019-8054-00 -.505 ID X 1 OD X.128 THK Flat Washer Nylon
$2.99
67 020-1001-00 020-1001-00 - Zinc-Plated Steel Reusable Cotter Pin No Longer Available
Obsolete.
74 024-3050-00 024-3050-00 - 1/4" Drive-in Grease Fitting (See Models Used On For Details)
$2.99
79 025-2004-00 025-2004-00 - ACS Spacer 3/4x3/8x1/2
$15.60
81 025-5343-00 025-5343-00 - Revolt Spacer 2.5"
$11.01
91 028-0036-00 028-0036-00 Revolt Front Actuator Bar Weldment
$74.89

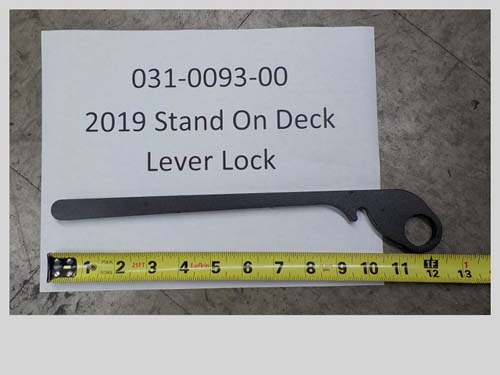

103 031-0093-00 031-0093-00 - 2019-2022 Stand On Deck Lever Lock
$24.12
108 032-5052-00 032-5052-00 - Bronze Bushing
$4.81
115 040-4004-00 040-4004-00 - 2023 Revolt Deck Height Pin
$16.04
120 048-6000-00 048-6000-00 - Maverick/Compact Outlaw/Revolt Toplink
$80.24

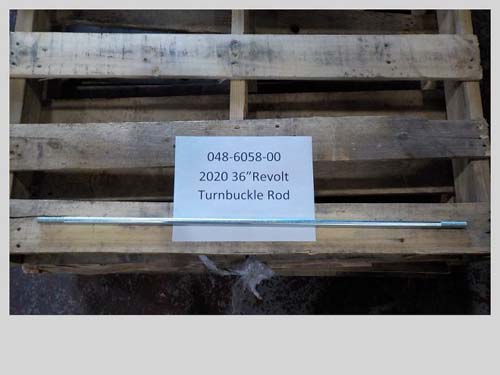

121 048-6058-00 048-6058-00 - 2020-2022 36" Revolt Turnbuckle Rod
$42.79
145 070-5223-00 070-5223-00 - 2023-Newer Revolt SD Frame Weldment--Orange
$1299.99
196 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
197 018-2004-50 018-2004-50 - All Thread (See Models Used On For Details)
$12.94
223 039-6947-20 039-6947-20 - 36" Stand On Drive Pulley Assembly (See Models Used On For Detail)
$58.84
224 013-7021-00 013-7021-00 - 5/8-11 Nylon Insert Locknut Zinc
$2.99

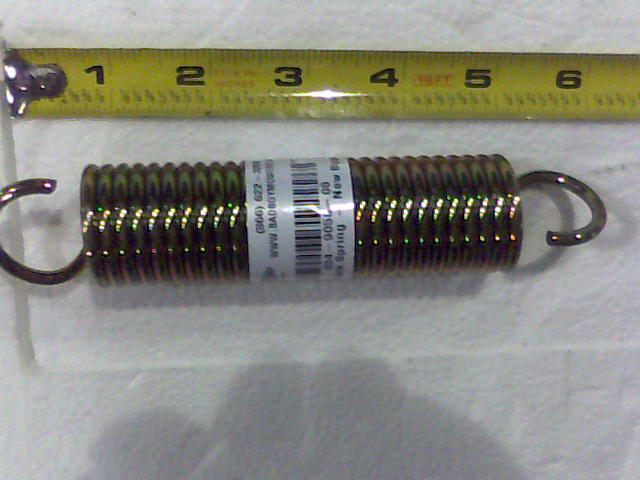

225 034-9050-00 034-9050-00 - Pump Idler Spring - Big Diameter
$17.11
