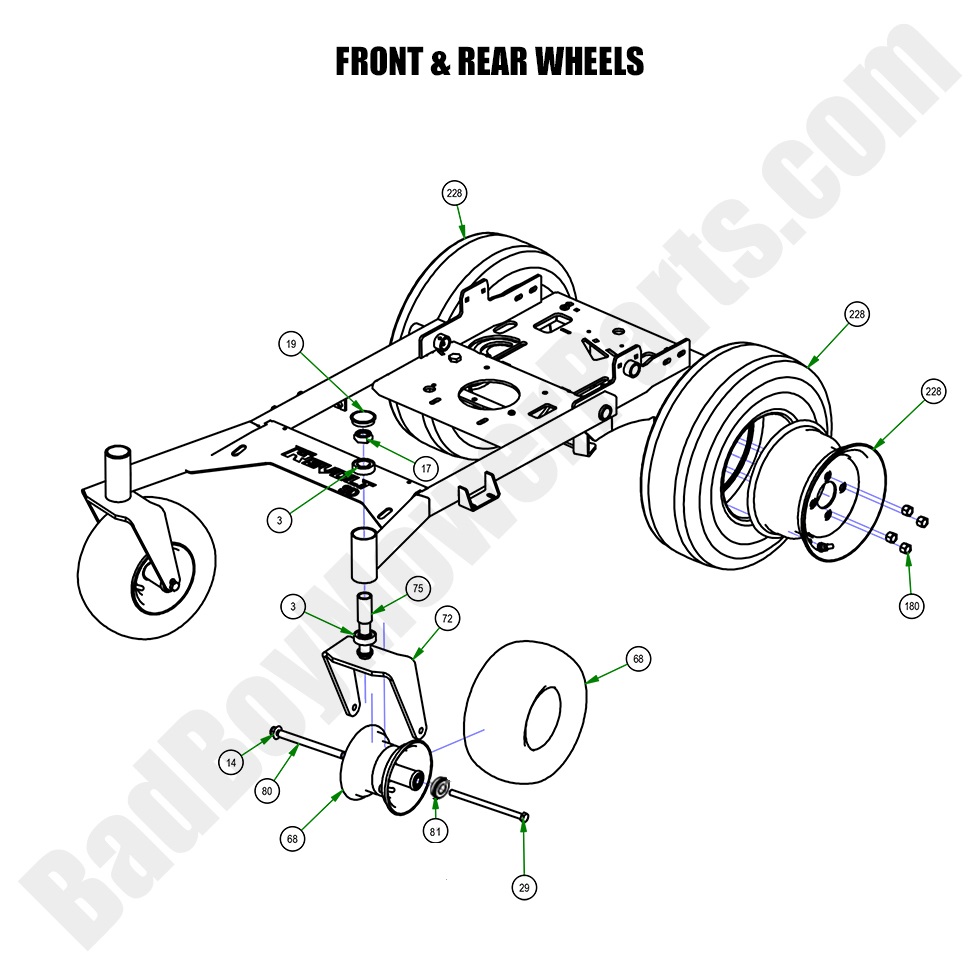

2023 Revolt SD - Front & Rear Wheels

2023 Revolt SD - Front & Rear Wheels

The 2023 Revolt SD Front & Rear Wheels are essential for providing stability and smooth maneuverability while cutting. Over time, these wheels may experience wear and tear, affecting performance. If you're in need of replacement or maintenance, Bad Boy Mower Part diagrams can help you locate the exact parts needed for your model. At BadBoyMowerParts.com, we offer a variety of Bad Boy Mower Parts for the front and rear wheels, including tires, hubs, and bearings. Our Bad Boy Lawn Mower Parts are built for durability, ensuring that your mower performs at its best. Ordering Bad Boy Parts Online is simple, and with Free Shipping On Orders Over $100, you can quickly replace the wheels and get back to mowing.

Bad Boy Mower Parts Lookup

2023 Revolt SD - Front & Rear Wheels
  Position Number SKU Product Title Price
3 010-1050-00 010-1050-00 - Front Fork Caster Bearing (See Models Used On For Details)
$18.39
14 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
17 013-9004-00 013-9004-00 - 1" Nylock Nut 1/2 Nut - Fine Thread
$3.62
19 014-2025-00 014-2025-00 - Caster Bearing Cover (See Models Used On For Details)
$2.99
29 018-0040-00 018-0040-00 - 1/2-13 x 8 1/2 Gr5 Hex Bolt
$7.18
68 022-2017-00 022-2017-00 - 13 x 6.50 - 6 Black Tire and Wheel Assembly
$94.15
72 023-0003-00 023-0003-00 - Front Fork (See Models Used On For Details)
$39.04
75 025-0003-00 025-0003-00 - Front Bearing Spacer
$14.04
80 025-5202-00 025-5202-00 - Front Wheel Spanner-All Models Except MZ
$10.44
81 022-7009-00 022-7009-00 - 1 3/8" Small Bore Bearing-Hoosier
$13.36
180 013-3000-00 013-3000-00 - Acorn Lug Nut
$3.29
228 022-4041-00 022-4041-00 - 36" Revolt Reaper Wheel Assy. 21x7x10
$195.99
