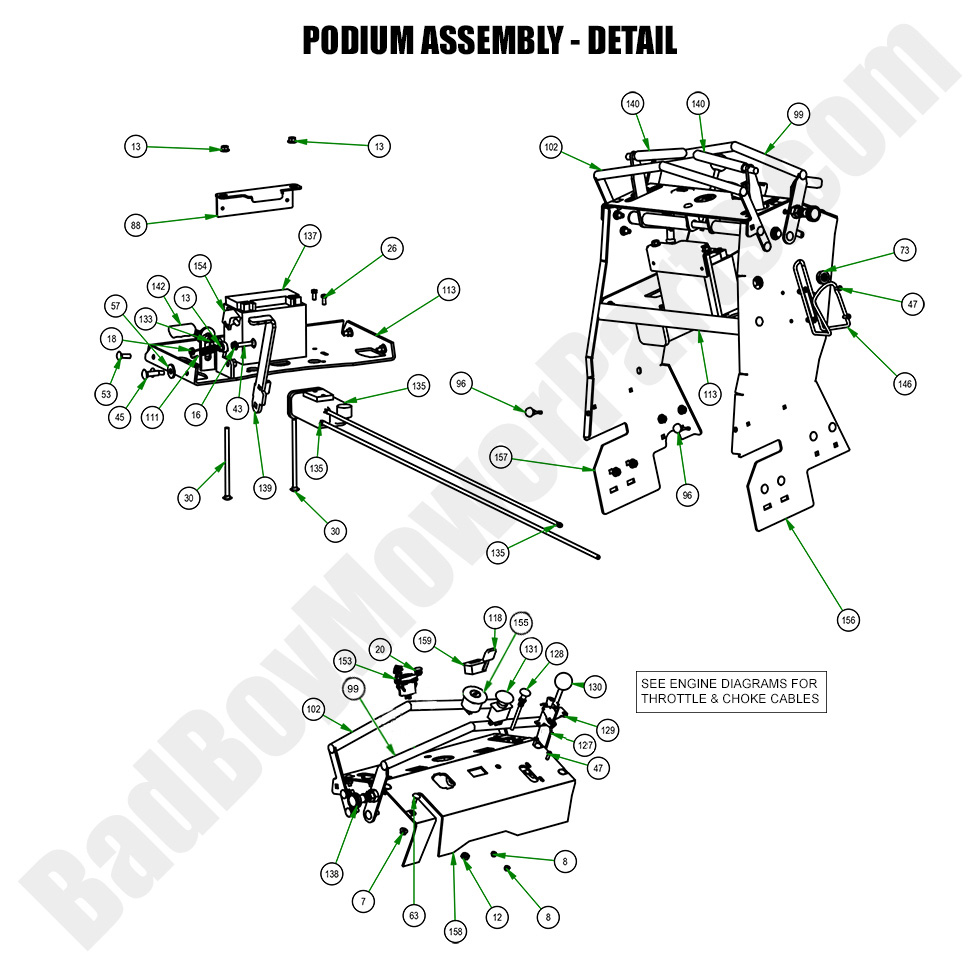

2023 Revolt SD - Podium Assembly - Detail

2023 Revolt SD - Podium Assembly - Detail

The 2023 Revolt SD Podium Assembly - Detail provides a closer look at the specific components that make up the podium assembly. These parts help reinforce your mower's frame, ensuring a secure and stable structure for the machine. Bad Boy Mower Part diagrams are extremely helpful for identifying the exact parts you need for repairs or replacements. At BadBoyMowerParts.com, we offer an array of Bad Boy Mower Parts for the podium assembly, from the central frame to the side support components. Our Bad Boy Lawn Mower Parts are made to last and are engineered to keep your mower operating at its best. Shopping Bad Boy Parts Online is quick, and with Free Shipping On Orders Over $100, you can order the parts you need without worrying about shipping fees.

Bad Boy Mower Parts Lookup

2023 Revolt SD - Podium Assembly - Detail
  Position Number SKU Product Title Price
7 013-2050-00 013-2050-00 - 1/4-20 Nylon Insert Flange Nut
$2.99
8 013-5019-00 013-5019-00 - 10-24 Nylon Insert Locknut Zinc
$2.99
12 013-6051-00 013-6051-00 - 3/8-24 Hex Jam Nut Zinc
$2.99
13 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
16 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
18 013-9005-00 013-9005-00 - 5/16-18 Nylock Jam Nut
$2.99
20 014-3010-00 014-3010-00 - 5/8 Round Insert
$2.99
26 018-0024-00 018-0024-00 - M6-1.0 X 16MM HEX BOLT
$2.99
30 018-0056-00 018-0056-00 - 5/16x6 Carriage Bolt
$2.99
43 018-5020-00 018-5020-00 - 5/16-18 X 1-1/2 Carriage Bolt
$2.99
45 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
47 018-5200-00 018-5200-00 - 10-24 X 5/8 BS C/S 18-8 SS
$2.99
53 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
57 019-2073-00 019-2073-00 -.390 ID Plastic Washer
$2.99
63 019-8040-00 019-8040-00 - 1/4 x 3/4 Carriage Bolt
$2.99
73 024-0016-00 024-0016-00 - 2023 Expandable Locking Grommet No Longer Available
Obsolete.
88 026-0264-00 026-0264-00 - 2023-2025 Stand on Battery Hold Down
$16.04
96 029-4011-00 029-4011-00 2023 Floorboard Rubber Bumpers
$2.99
99 031-0034-00 031-0034-00 - 36" Front Control Arm Stop Weldment--Bla
$32.05
111 034-1025-00 034-1025-00 - Brake Spring (See Models Used On For Detail)
$12.48
118 042-9000-00 042-9000-00 - Ignition Key
$4.06
129 055-2012-00 055-2012-00 - Universal Throttle/Brake Lever (Knob Not Included)
$25.54
130 055-2013-00 055-2013-00 - Throttle/Brake Head Ball
$12.48
131 056-8058-00 056-8058-00 - PTO Engager-Switch for Blades
$34.29
133 064-3000-00 064-3000-00 - 44" Brake Cable
$31.22
135 067-0015-02 067-0015-02 - MZ Kohler EPA Cannister Assy
$56.72
138 069-0002-00 069-0002-00 - Retractable Spring Plunger Black Steel 5/8-11
$84.52
139 069-2013-00 069-2013-00 - 2019 Revolt Brake Handle
$109.99
140 069-2014-00 069-2014-00 - 2019-2022 Cushioned Grip (See Models Used On For Details)
$8.01
142 069-7000-00 069-7000-00 - Rubber Brake Grip
$6.41
146 071-6005-00 071-6005-00 - Revolt Cup Holder (See Models Used On For Details)
$22.71
153 077-2076-00 077-2076-00 - USB Port
$46.84
154 077-8073-00 077-8073-00 - Safety Switch (See Models Used On For Detail)
$10.99
155 077-8076-00 077-8076-00 - 3-Position Ignition Switch (key not included)
$21.39
158 079-4113-00 079-4113-00 - 36" Podium Front Panel Weldment
$106.99
159 083-4013-00 083-4013-00 - Tachometer-N211-0100-1003
$74.89
