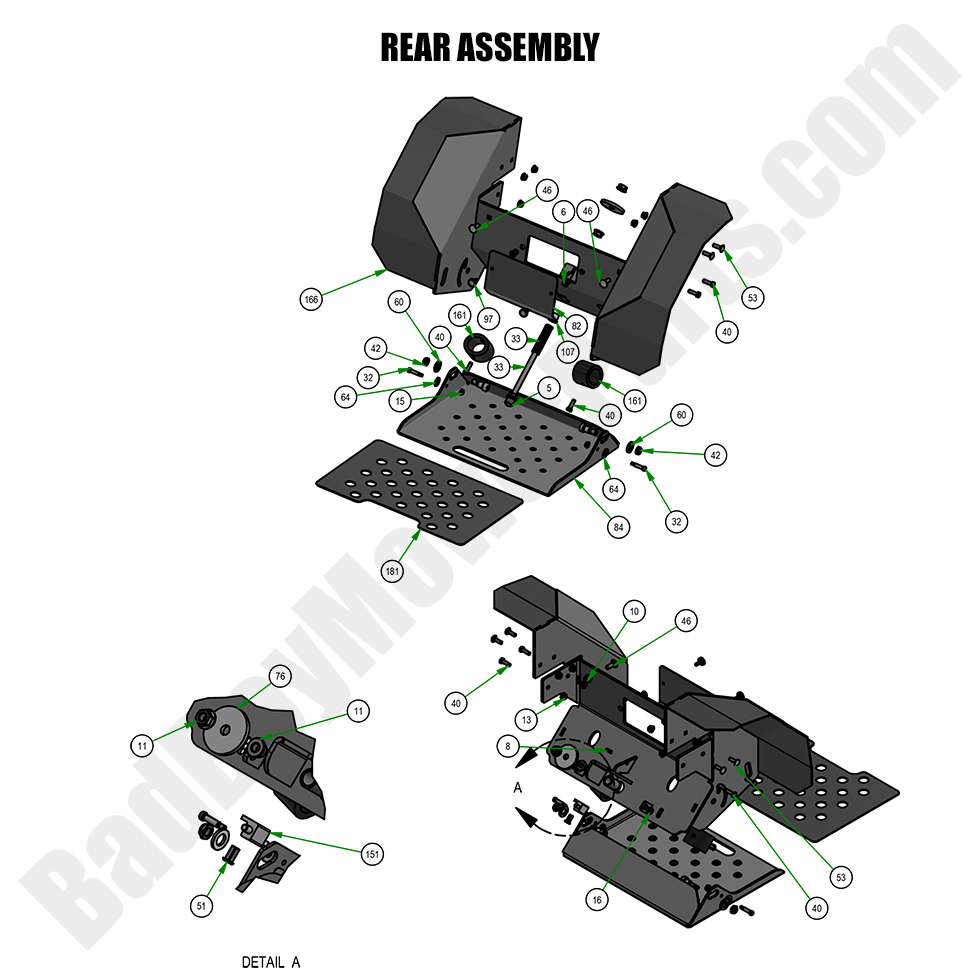

2023 Revolt SD - Rear Assembly

2023 Revolt SD - Rear Assembly

The 2023 Revolt SD Rear Assembly is a key part of your mower, responsible for ensuring smooth movement and stability. This assembly includes various components such as the rear axle, suspension parts, and brackets that keep your mower balanced during use. If you're in need of replacement or maintenance, Bad Boy Mower Part diagrams are a helpful tool to locate the exact components for your repair. At BadBoyMowerParts.com, we provide a range of Bad Boy Mower Parts for the rear assembly, including axles, mounts, and hardware. Our Bad Boy Lawn Mower Parts are built for durability and precision. Shopping Bad Boy Parts Online is convenient, and with Free Shipping On Orders Over $100, you can easily replace parts without additional shipping costs.

Bad Boy Mower Parts Lookup

2023 Revolt SD - Rear Assembly
  Position Number SKU Product Title Price
5 013-0029-00 013-0029-00 - Hex Nut Cap
$5.49
6 013-0057-00 013-0057-00 - Wellnut 1/4-20 x 5/8
$4.39
8 013-5019-00 013-5019-00 - 10-24 Nylon Insert Locknut Zinc
$2.99
10 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
11 013-5300-00 013-5300-00 - 1/2-13 Hex Fange Nuts Zinc w/ Serrations
$2.99
13 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
15 013-9001-00 013-9001-00 - 1/4-20 Hex Flange Nuts Zinc w/Serrations
$2.99
16 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
32 018-0059-00 018-0059-00 - Steel Shoulder Screw 1/4"-20 x 7/8" Diameter 5/16"
$4.39
33 018-0062-00 018-0062-00 - 1/2-13 X 6 Hex Head Bolt Gr5
$3.29
40 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
42 018-4010-00 018-4010-00 - 1/2-13 Nylon Insert Jam Locknut Zinc Orange Nylon
$2.99
46 018-5044-00 018-5044-00 - 3/8 x 1 Carriage Bolt
$2.99
51 018-8057-00 018-8057-00 - 10-24 X 3/4 Button Screw
$2.99
53 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
60 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
64 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
76 025-0025-00 025-0025-00 - Round Spacer (See Models Used On For Details)
$7.28
82 026-0063-00 026-0063-00 - 2019-2022 Revolt Access Panel Plate
$35.48
84 026-0158-00 026-0158-00 - 36" Revolt Platform Plate (Not for 48"-61" Models)
$113.99
97 030-0015-00 030-0015-00 - 1/4-20 x 3/4 Knurled Thumb Screw
$16.04
107 032-0005-00 032-0005-00 - 2023 Revolt Drive Arm Bushings
$2.99
151 077-0002-00 077-0002-00 - Safety Switch (See Models Used On For Detail)
$23.41
161 087-0003-00 087-0003-00 - 2019-2022 Revolt Platform Dampener
$85.17
181 088-0051-00 088-0051-00 - Grip Tape for 026-0158-00
$25.67
