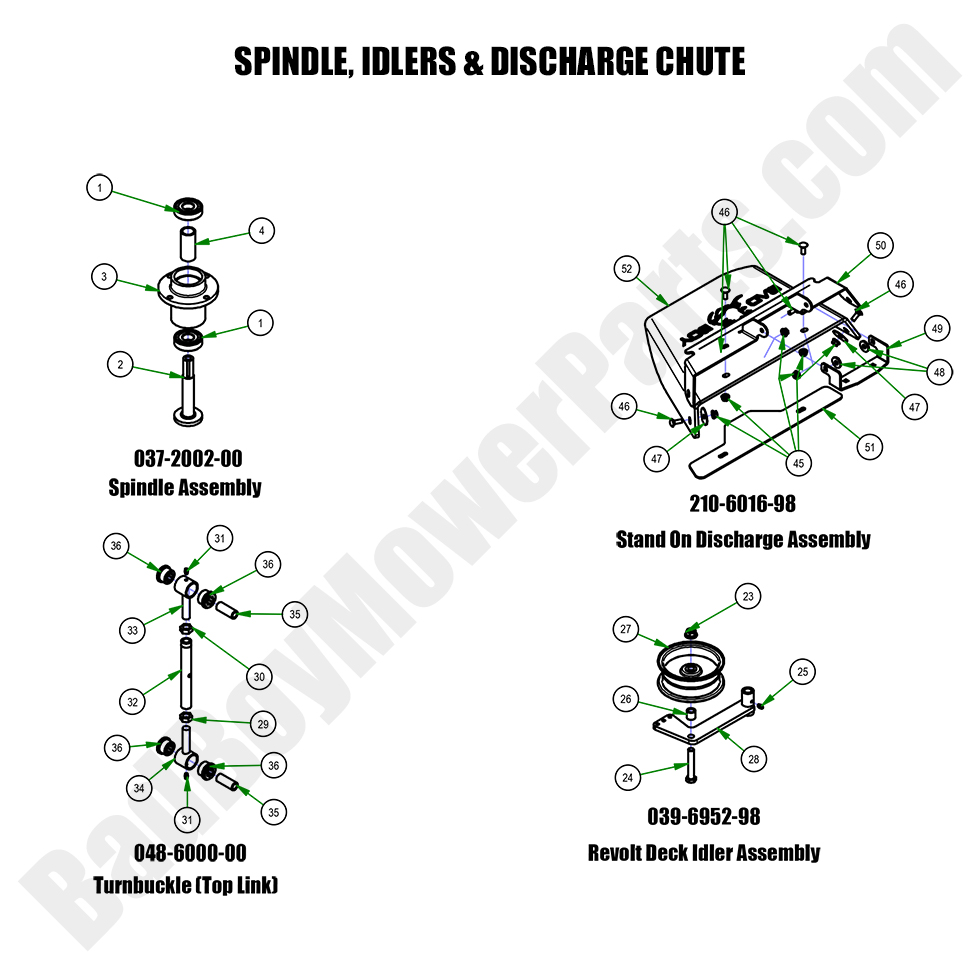

2023 Revolt SD - Spindle, Idlers & Discharge Chute

2023 Revolt SD - Spindle, Idlers & Discharge Chute

The 2023 Revolt SD Spindle, Idlers & Discharge Chute are vital components for ensuring efficient operation of the mower’s cutting deck. The spindles and idlers control the belt’s movement, while the discharge chute directs the grass clippings. Over time, these parts may require replacement due to wear and tear. Bad Boy Mower Part diagrams can help you pinpoint the exact components you need. At BadBoyMowerParts.com, we offer a wide selection of Bad Boy Mower Parts for the spindle, idlers, and discharge chute, ensuring your mower stays in peak condition. Our Bad Boy Lawn Mower Parts are designed for durability and smooth operation. Shopping Bad Boy Parts Online is fast and easy, and with Free Shipping On Orders Over $100, you can replace these parts without the extra cost.

Bad Boy Mower Parts Lookup

2023 Revolt SD - Spindle, Idlers & Discharge Chute
  Position Number SKU Product Title Price
1A 037-2002-00 037-2002-00 - Revolt SD 34" and 42" Decks, Revolt 36" Deck Spindle (See Models Used On For Details)
$212.29
1B 210-6016-98 210-6016-98 - 36" Stand On Chute Assembly
$145.95
1C 048-6000-00 048-6000-00 - Maverick/Compact Outlaw/Revolt Toplink
$80.24
1D 039-6952-98 039-6952-98 - 36" Revolt Deck Idler Assembly (See Models Used On For Detail)
$70.61
1 037-6024-00 037-6024-00 - All MZ Models & 2016-2022 Stand-On (36" Deck) Spindle Bearing
$34.35
2 037-6025-01 037-6025-01 - 36" Revolt Spindle Shaft
$72.75
3 037-6027-00 037-6027-00 - Spindle Housing For 037-2000-00 Spindle Assembly (See Models Used On For Details)
$99.32
4 037-6028-00 037-6028-00 - Spacer for 037-2000-00 Spindle
$14.19
23 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
24 018-7016-00 018-7016-00 - 1/2-13 X 3 Hex Bolts Zinc
$2.99
25 024-0001-00 024-0001-00 - 1/4-28 Threaded Grease Fitting
$2.99
26 025-5203-00 025-5203-00 - Spacer 3/4" OD x 1/2" ID x 0.75"
$3.29
27 033-5000-00 033-5000-00 - 5 3/4" Double Bearing Flat Idler Pulley (See Description For Details)
$56.77
28 039-6952-00 039-6952-00 - Deck Idler Arm
$10.99
29 013-0019-00 013-0019-00 - Nut, 5/8-18 RH
$4.39
30 013-0020-00 013-0020-00 - Nut, 5/8-18 LH
$4.39
32 048-6001-00 048-6001-00 - Maverick/Compact Outlaw Toplink Body (See Models Used On For Details)
$28.32
33 048-6002-00 048-6002-00 - Maverick/Compact Outlaw Topllink Bushing Retainer (See Models Used On For Details)
$28.32
34 048-6003-00 048-6003-00 - Toplink Bushing Retainer (See Models Used On For Details)
$28.32
35 048-6004-00 048-6004-00 - Maverick/Compact Outlaw Topllink Bushing Sleeve (See Models Used On For Details)
$11.29
36 048-6005-00 048-6005-00 - Toplink Bushing (See Models Used On For Details)
$32.09
45 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
46 018-8066-00 018-8066-00 - 5/16 x 7/8 Carriage Bolt
$2.99
47 019-0002-00 019-0002-00 - 5/16 Fender Washer
$2.99
48 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
49 039-0152-00 039-0152-00 - 36" Chute Hanger Bracket (See Models Used On For Detail)
$21.39
50 039-4891-00 039-4891-00 - Discharge Chute Bracket 48 MZ (Upper)
$35.43
51 039-4892-00 039-4892-00 - 2017-2022 MZ Discharge Chute Bracket (Lower) (obsolete)
use part #039-4890-00
$35.43
52 210-6014-00 210-6014-00 - Discharge Chute Rubber Only (See Models Used On For Details)
$53.49
