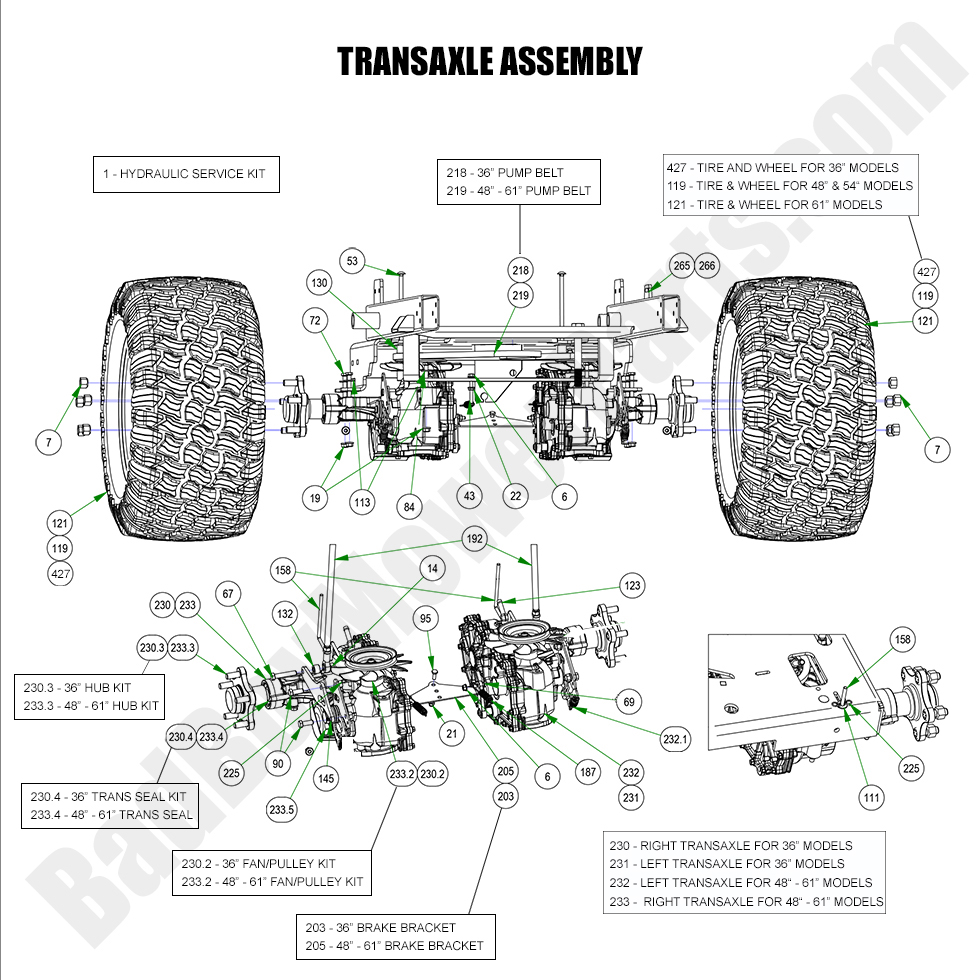

2023 Revolt - Transaxle Assembly

2023 Revolt - Transaxle Assembly

The 2023 Revolt Transaxle Assembly is vital to your mower’s drivetrain, providing the necessary power and efficiency for the machine to move. Over time, transaxles may require repairs or replacement. Bad Boy Mower Part diagrams provide the detailed breakdown needed to identify the specific parts you need for your transaxle assembly. At BadBoyMowerParts.com, we offer a full range of Bad Boy Mower Parts for the transaxle, including gears, bearings, and housings. With our Bad Boy Lawn Mower Parts, you can maintain optimal performance. Shopping for Bad Boy Parts Online is quick, and with Free Shipping On Orders Over $100, you can replace your transaxle assembly without worrying about additional shipping fees.

Bad Boy Mower Parts Lookup

2023 Revolt - Transaxle Assembly
  Position Number SKU Product Title Price
1 085-4051-00 085-4051-00 - Hydro Service Package for 2020 and Older Models with Expansion Tanks - ZT2800, ZT3100, ZT3200, and all ZT3400
$104.74
6 013-2050-00 013-2050-00 - 1/4-20 Nylon Insert Flange Nut
$2.99
7 013-3000-00 013-3000-00 - Acorn Lug Nut
$3.29
14 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
19 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
21 013-8073-00 013-8073-00 - 1/4-20 Nylon Insert Locknut Zinc
$2.99
22 013-9001-00 013-9001-00 - 1/4-20 Hex Flange Nuts Zinc w/Serrations
$2.99
43 018-0011-00 018-0011-00 - 1/4-20 x 2 Hex Bolt
$2.99
53 018-0056-00 018-0056-00 - 5/16x6 Carriage Bolt
$2.99
67 018-3000-00 018-3000-00 - 3/8-16 X 2 Hex Bolts Zinc
$2.99
69 018-4007-00 018-4007-00 - 1/4-20 X 1 Hex Bolts Zinc
$2.99
72 018-4701-00 018-4701-00 - 5/16-18 X 3 Hex Bolt Zinc
$2.99
84 018-5344-00 018-5344-00 - 5/16 x 2 1/2 Bolt
$2.99
90 018-6049-00 018-6049-00 - 3/8-16 X 1 Hex Bolts Zinc
$2.99
95 018-8052-00 018-8052-00 - 1/4-20 X 3/4 Hex Bolt
$2.99
111 019-7040-00 019-7040-00 - 1/4 USS Flat Washer Zinc
$2.99
113 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
119 022-4040-00 022-4040-00 - 23x9-12 Reaper Turf (See Models Used On for Details)
$329.99
121 022-4200-00 022-4200-00 - 23x11-12 Reaper Tire/Wheel Assembly (See Models Used On For Details)
$320.99
123 024-1200-00 024-1200-00 - Fitting, 3/8 x 3/8 45 Degree, 4603-6-6 (See Models Used On For Details)
$19.93
130 025-0070-00 025-0070-00 - Transaxle Spacer
$6.41
132 025-2004-00 025-2004-00 - ACS Spacer 3/4x3/8x1/2
$15.60
158 028-0071-00 028-0071-00 - Neutral Release Rod 2019-2024 Revolt
$29.95
187 034-1025-00 034-1025-00 - Brake Spring (See Models Used On For Detail)
$12.48
192 035-0006-19 035-0006-19 - Push-Rod Assembly
$46.84
203 039-0151-00 039-0151-00 - 2020 36" Brake Bracket--Black
$14.11
205 039-0212-00 039-0212-00 - Brake Bracket (See Models Used On For Details)
$25.54
218 041-8000-00 041-8000-00 - Pump Belt (See Models Used On For Detail)
$80.24
219 041-8052-00 041-8052-00 - 2019-2025 Revolt Drive Belt, 48", 54", 61" Decks Only
$80.24
225 044-2004-00 044-2004-00 - Bow Pin
$2.99
230.2 050-2070-00 050-2070-00 - 2020 -2024 ZT Avenger/ ZT/Maverick Transaxle Fan/Pulley Kit
$85.17
230.3 050-2076-00 050-2076-00 - Transaxle Wheel Hub (See Models Used On For Details)
$90.56
230.4 050-8010-00 050-8010-00 - ZT/Maverick Transaxle Seal Kit (ZT-2800)
$109.46
230 050-2095-01 050-2095-01 - Right ZT Transaxle & 36" 2020-2022 Revolt
$729.99
231 050-2096-01 050-2096-01 - Left ZT Transaxle & 36" 2020-2022 Revolt
$729.99
232.1 034-9080-00 034-9080-00 - Gold Transaxle Spring
$14.89
232 050-6000-01 050-6000-01 - ZT3400 Transaxle - Left (obsolete)
use part #050-6000-02
$819.99
233.2 050-2072-00 050-2072-00 - Fan/Pulley Kit
$63.96
233.3 050-2077-00 050-2077-00 - 5 Bolt Hub Kit (See Models Used On For Details)
$102.71
233.4 050-8011-00 050-8011-00 - Seal Kit for 3400 Transaxle
$109.99
233.5 063-1050-00 063-1050-00 - ZT Hydraulic Filter
$22.71
233 050-6001-01 050-6001-01 - ZT3400 Transaxle Right (obsolete)
use part #050-6001-02
$819.99
265 070-5220-19 070-5220-19 - 2019-2022 Revolt Frame
$1149.99
266 070-5221-20 070-5221-20 - 2020 36" Revolt Frame
$1299.99
427 022-4041-00 022-4041-00 - 36" Revolt Reaper Wheel Assy. 21x7x10
$195.99
