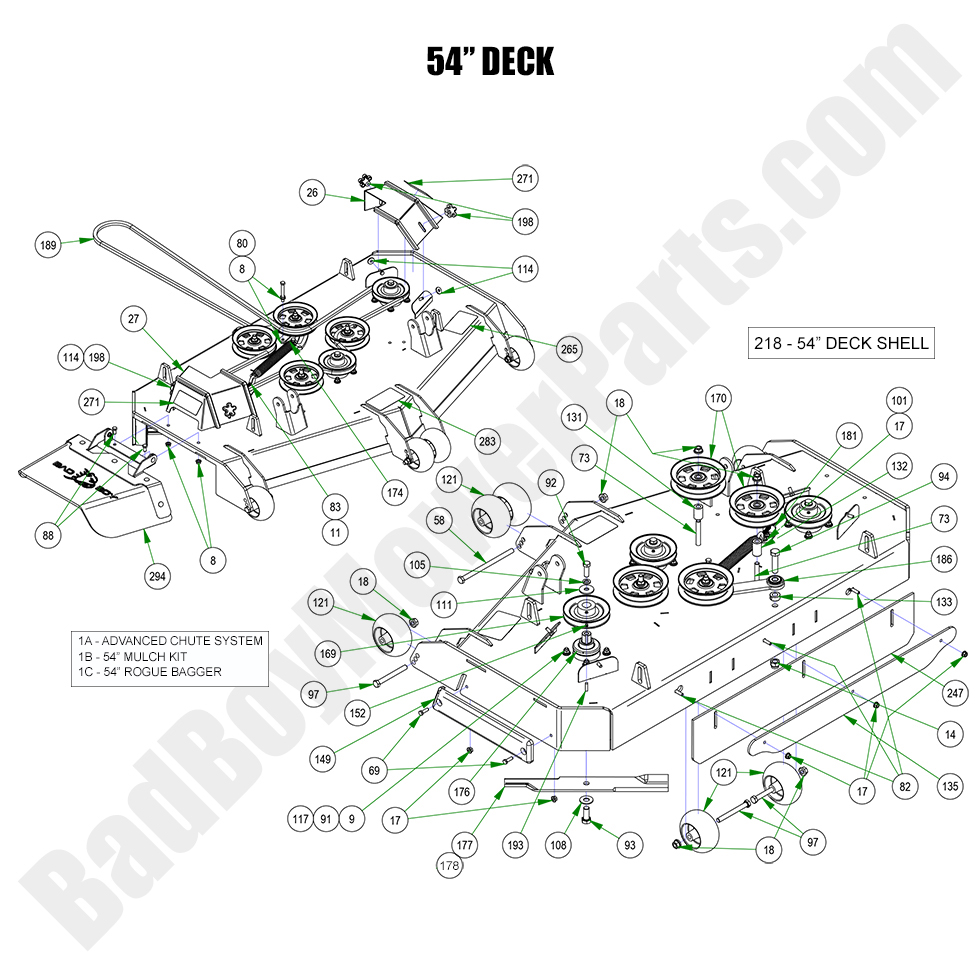

2023 Rogue - 54" Deck Assembly

2023 Rogue - 54" Deck Assembly

The 2023 Rogue 54" Deck Assembly is designed to offer precision cutting for a variety of lawn types. Over time, parts of the deck may need replacement due to wear and tear. Bad Boy Mower Part diagrams provide easy access to the parts you need, from blades to pulleys. At BadBoyMowerParts.com, we offer an extensive selection of Bad Boy Mower Parts specifically for the 54" deck. Our Bad Boy Lawn Mower Parts are built for long-term durability and smooth operation, ensuring that your mower provides excellent cutting performance season after season. Shopping for Bad Boy Parts Online is simple, and with Free Shipping On Orders Over $100, you'll enjoy cost-effective repairs and maintenance.

Bad Boy Mower Parts Lookup

2023 Rogue - 54" Deck Assembly
  Position Number SKU Product Title Price
1A 088-5419-00 088-5419-00 - Advanced Chute System for 2019-2025 54" Outlaws
$249.00
1B 210-0354-00 210-0354-00 - 54" Mulch Kit w/Blades (Not for MZ or Avenger) (See Models Used On for Detail)
$318.45
8 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
9 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
11 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
14 013-7021-00 013-7021-00 - 5/8-11 Nylon Insert Locknut Zinc
$2.99
17 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
18 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
26 014-5050-00 014-5050-00 - 54" Deck Left Pulley Cover 2019-2022 Rebel & Rogue
$17.86
27 014-5051-00 014-5051-00 - 54" Deck Right Pulley Cover 2019-2025 Rebel & Rogue
$17.86
58 018-0046-00 018-0046-00 - 1/2-13 x 8" Hex Bolt
$4.06
69 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
73 018-2018-00 018-2018-00 - 1/2 x 3 1/2 Flange Bolt - Gr 8
$3.62
80 018-4700-00 018-4700-00 - 3/8-16 X 3 Hex Bolts Zinc
$2.99
82 018-4703-00 018-4703-00 - 5/16-18 X 1-1/4 Carriage Bolt
$2.99
83 018-4707-00 018-4707-00 - 4" 3/8-16 Eye Bolt
$4.06
88 018-5250-00 018-5250-00 - 3/8-16 X 3/4 Hex Bolts
$2.99
91 018-6012-00 018-6012-00 - 3/8 x 1 1/2 Bolt
$2.99
92 018-6019-00 018-6019-00 - 1/2-20 X 1-1/2 Bolt Zinc, Fine Thread Bolt
$2.99
93 018-6020-00 018-6020-00 - 5/8-18 X 1-1/2 GR 8 Hex Bolts Zinc Yellow for Blade Spindle
$2.99
94 018-6059-00 018-6059-00 - 5/8-11 X 2-1/2 Hex Bolts
$2.99
97 018-7050-00 018-7050-00 - 1/2-13 X 4-1/2 Hex Bolts
$2.99
101 018-8066-00 018-8066-00 - 5/16 x 7/8 Carriage Bolt
$2.99
105 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
108 019-5038-00 019-5038-00 - 5/8 Flat Washer
$2.99
111 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
114 019-6050-00 019-6050-00 -.360 ID Black Plastic Washer
$2.99
117 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
121 022-1001-00 022-1001-00 - Deck Wheel (See Models Used On For Detail)
$17.11
131 025-5338-00 025-5338-00 -.502 ID X.750 OD X 1.500" Spacer Zinc
$3.62
132 025-5339-00 025-5339-00 - .502 ID X 1.00 OD X 1.750 Length Spacer Zinc
$5.36
133 025-7020-00 025-7020-00 - 5/8 Set Collar w/One Set Screw
$4.37
135 026-0234-00 026-0234-00 - 61" Bolt In Baffle Deck V2 Striping Plat
$172.99
149 029-7036-00 029-7036-00 - Deck Trim Bumper
$23.41
152 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
169 033-6006-00 033-6006-00 - 5.25" Deck Pulley-54" ZT/Maverick/Outlaw (without set screw)
$35.48
170 033-7201-25 033-7201-25 - 5 3/4 Idler Pulley
$35.48
174 034-2030-00 034-2030-00 - 2019-Newer Deck Spring (See Models Used On For Details)
$31.22
176 037-4000-00 037-4000-00 - Commercial Spindle Assembly (See Models Used On For Details)
$291.91
177 038-0001-00 038-0001-00 - 54" & 2024 Raider 36" High Lift Fusion Blade
$22.99
178 038-0003-00 038-0003-00 - 54" & 2024 Raider 36" Deck Gator Mulching Blade
$22.99
181 039-0144-00 039-0144-00 - Deck Eye Bolt Tab For Rebel/Renegade/Rogue (See Models Used On For Details)
$14.19
186 039-6946-18 039-6946-18 - Deck Idler Assembly
$78.08
189 041-1650-00 041-1650-00 - B165 Deck Belt (See Models Used On For More Details, Not For 54" ZT/CZT/Maverick)
$90.94
193 042-6030-00 042-6030-00 - 1/4" x 1" Square Key
$4.81
198 045-6043-00 045-6043-00 - Black Plastic Knob Spindle Cover
$4.39
218 060-5551-19 060-5551-19 - 2019 54" Sloped Deck Weldment
$1099.99
247 084-5004-00 084-5004-00 - R Series Rubber for Deck
$56.77
265 091-0904-18 091-0904-18 - 54" Deck Decal (See Models Used On For Details)
$6.41
271 091-3012-00 091-3012-00 - Danger Decal-Spindle/Discharge
$2.99
283 091-4036-00 091-4036-00 - 2019-2022 Rebel & Rogue Deck Belt Route Decal
$9.61
294 210-7000-98 210-7000-98 - Chute Assembly (See Models Used On for Detail)
$159.22
