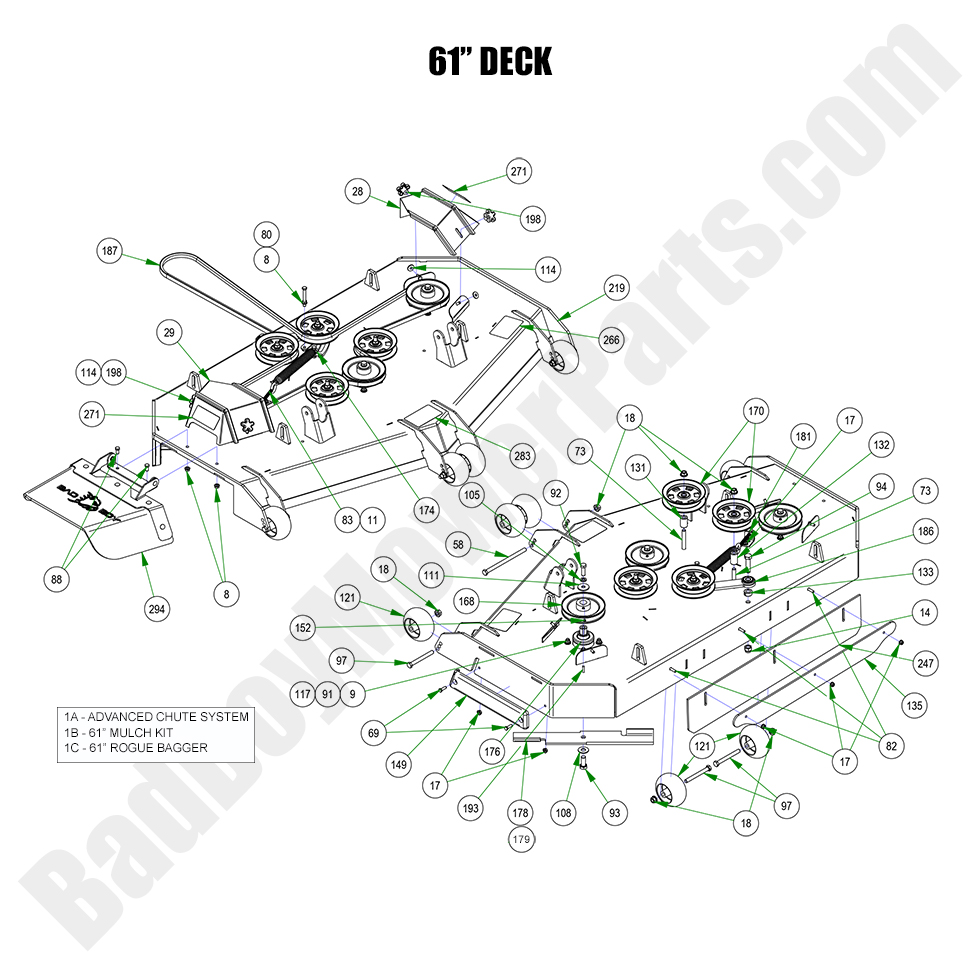

2023 Rogue - 61" Deck Assembly

2023 Rogue - 61" Deck Assembly

The 2023 Rogue 61" Deck Assembly provides a balance between cutting width and maneuverability, making it ideal for medium to large lawns. It ensures an even cut across a variety of terrain, but regular maintenance is necessary to keep it in top shape. Over time, parts such as the blades, spindles, pulleys, and belts can wear down and may need replacing. Bad Boy Mower Part diagrams are an excellent resource to help you find the right parts for repairs or replacements. At BadBoyMowerParts.com, we offer a wide selection of Bad Boy Mower Parts designed specifically for the 61" deck assembly. Our Bad Boy Lawn Mower Parts are made to the highest standards, ensuring you get optimal performance. Shopping for Bad Boy Parts Online is quick and easy, and with Free Shipping On Orders Over $100, you can save on delivery while keeping your mower in excellent working condition.

Bad Boy Mower Parts Lookup

2023 Rogue - 61" Deck Assembly
  Position Number SKU Product Title Price
1A 088-6000-00 088-6000-00 - Advanced Chute System for Select 2007-2025 Models with 60", 61", and 72" Decks & 2014-Newer ZT/CZT/Maverick 54" Decks (Will Not Work on 54" Outlaw)
$249.00
1B 210-0361-00 210-0361-00 - Revolt/Rebel/Rogue/Renegade 61" Mulch Kit w/Blades
$318.45
8 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
9 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
11 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
14 013-7021-00 013-7021-00 - 5/8-11 Nylon Insert Locknut Zinc
$2.99
17 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
18 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
28 014-5052-00 014-5052-00 - 61" Left Deck Pulley Cover - Rebel, Renegade & Rogue
$17.86
29 014-5053-00 014-5053-00 - 61" Right Deck Pulley Cover 2019-& Up Rebel, Renegade & Rogue
$17.86
58 018-0046-00 018-0046-00 - 1/2-13 x 8" Hex Bolt
$4.06
69 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
73 018-2018-00 018-2018-00 - 1/2 x 3 1/2 Flange Bolt - Gr 8
$3.62
80 018-4700-00 018-4700-00 - 3/8-16 X 3 Hex Bolts Zinc
$2.99
82 018-4703-00 018-4703-00 - 5/16-18 X 1-1/4 Carriage Bolt
$2.99
83 018-8050-00 018-8050-00 - 1/4-20 X 8 Carriage Bolts Zinc Bolt for Battery Hold Down
$2.99
88 018-5250-00 018-5250-00 - 3/8-16 X 3/4 Hex Bolts
$2.99
91 018-6012-00 018-6012-00 - 3/8 x 1 1/2 Bolt
$2.99
92 018-6019-00 018-6019-00 - 1/2-20 X 1-1/2 Bolt Zinc, Fine Thread Bolt
$2.99
93 018-6020-00 018-6020-00 - 5/8-18 X 1-1/2 GR 8 Hex Bolts Zinc Yellow for Blade Spindle
$2.99
94 018-6059-00 018-6059-00 - 5/8-11 X 2-1/2 Hex Bolts
$2.99
97 018-7050-00 018-7050-00 - 1/2-13 X 4-1/2 Hex Bolts
$2.99
105 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
108 019-5038-00 019-5038-00 - 5/8 Flat Washer
$2.99
111 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
114 019-6050-00 019-6050-00 -.360 ID Black Plastic Washer
$2.99
117 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
121 022-1001-00 022-1001-00 - Deck Wheel (See Models Used On For Detail)
$17.11
131 025-5338-00 025-5338-00 -.502 ID X.750 OD X 1.500" Spacer Zinc
$3.62
132 025-5339-00 025-5339-00 - .502 ID X 1.00 OD X 1.750 Length Spacer Zinc
$5.36
133 025-7020-00 025-7020-00 - 5/8 Set Collar w/One Set Screw
$4.37
135 026-0234-00 026-0234-00 - 61" Bolt In Baffle Deck V2 Striping Plat
$172.99
149 029-7036-00 029-7036-00 - Deck Trim Bumper
$23.41
152 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
168 033-6004-00 033-6004-00 - 6 1/4" Spindle Deck Pulley (without set screw) (See Models Used On For Detail)
$35.48
170 033-7201-25 033-7201-25 - 5 3/4 Idler Pulley
$35.48
174 034-2030-00 034-2030-00 - 2019-Newer Deck Spring (See Models Used On For Details)
$31.22
176 037-4000-00 037-4000-00 - Commercial Spindle Assembly (See Models Used On For Details)
$291.91
178 038-6080-00 038-6080-00 - 61" High Lift Fusion Blade
$22.99
179 038-6081-00 038-6081-00 - 61" Gator Blade for Outlaw
$22.99
181 039-0144-00 039-0144-00 - Deck Eye Bolt Tab For Rebel/Renegade/Rogue (See Models Used On For Details)
$14.19
186 039-6946-18 039-6946-18 - Deck Idler Assembly
$78.08
187 041-0178-00 041-0178-00 - B178 Deck Belt For 61" Decks (See Models Used On For Details)
$96.29
193 042-6030-00 042-6030-00 - 1/4" x 1" Square Key
$4.81
198 045-6043-00 045-6043-00 - Black Plastic Knob Spindle Cover
$4.39
219 060-6151-19 060-6151-19 - 61" Sloped Deck Shell 2019-Newer Rebel, Renegade & Rogue
$1461.53
247 084-5004-00 084-5004-00 - R Series Rubber for Deck
$56.77
266 091-0917-18 091-0917-18 - 2018-2023 61" Deck Decal
$6.41
271 091-3012-00 091-3012-00 - Danger Decal-Spindle/Discharge
$2.99
283 091-4036-00 091-4036-00 - 2019-2022 Rebel & Rogue Deck Belt Route Decal
$9.61
294 210-7000-98 210-7000-98 - Chute Assembly (See Models Used On for Detail)
$159.22
