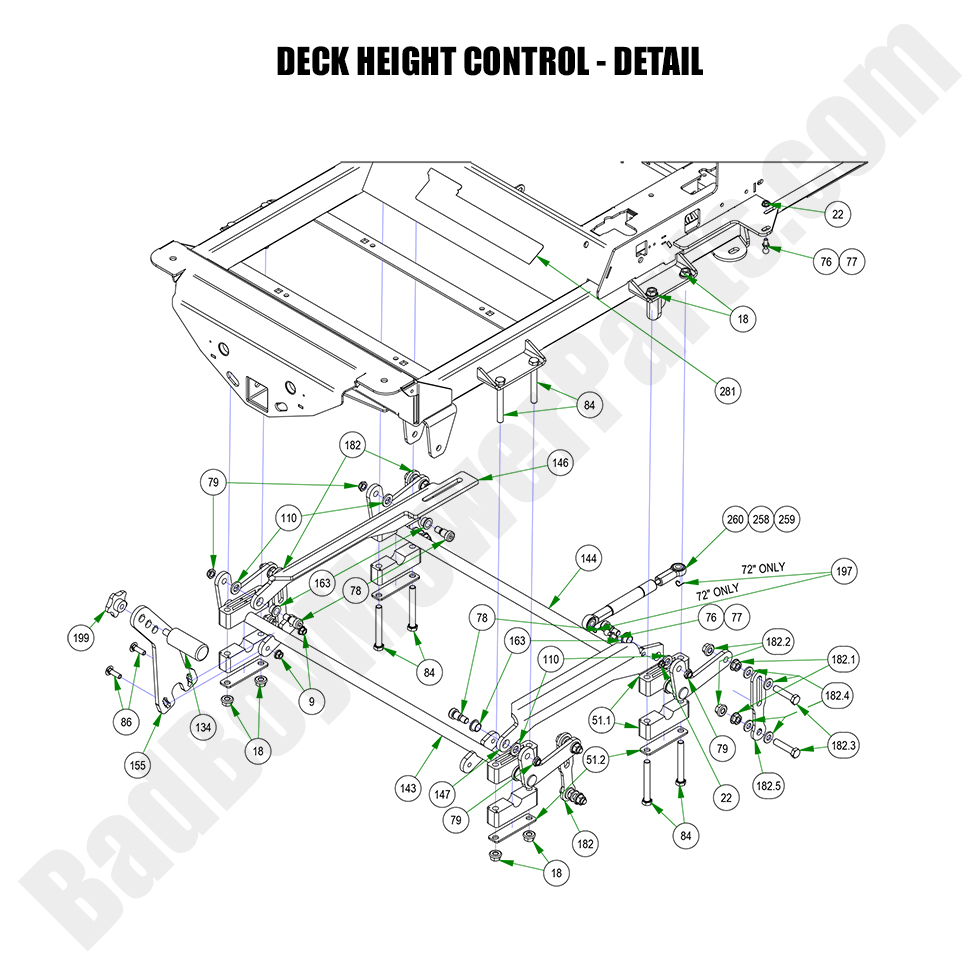

2023 Rogue - Deck Height Control - Detail

2023 Rogue - Deck Height Control - Detail

The 2023 Rogue Deck Height Control - Detail provides an in-depth look at the deck height adjustment system that allows you to modify the cutting height of your mower for different lawn conditions. This system includes components such as the control lever, cables, springs, and mounting brackets. Over time, these parts can wear out or become damaged, which may affect your mower's performance. Bad Boy Mower Part diagrams are extremely helpful for identifying the precise parts needed for repairs or replacements. At BadBoyMowerParts.com, we offer a wide variety of Bad Boy Mower Parts for the deck height control system, from levers to springs and cables. Our Bad Boy Lawn Mower Parts are built to be long-lasting and ensure your mower continues to perform at its best. Shopping for Bad Boy Parts Online is fast and easy, and with Free Shipping On Orders Over $100, you can have the parts delivered directly to your door without additional shipping costs.

Bad Boy Mower Parts Lookup

2023 Rogue - Deck Height Control - Detail
  Position Number SKU Product Title Price
9 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
18 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
22 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
51.1 017-9000-00 017-9000-00 - Two Piece Pillow Block-Male
$10.99
51.2 017-9025-00 017-9025-00 - Two Piece Pillow Block-Plate
$32.09
76 018-2049-00 018-2049-00 - 13mm Ball Stud for 72" Deck Damper (See Models Used On For Details)
$4.83
77 018-2055-00 018-2055-00 - 10mm Damper Stud-XP Linkage
$2.99
78 018-3001-00 018-3001-00 - 5/8 x 5/8 Shoulder Bolt
$15.61
79 018-4010-00 018-4010-00 - 1/2-13 Nylon Insert Jam Locknut Zinc Orange Nylon
$2.99
84 018-5019-00 018-5019-00 - 1/2-13 X 4 GR 8 Hex Bolt
$4.39
86 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
110 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
134 026-0026-00 026-0026-00 - Knurled Foot Pedal
$39.03
143 028-0026-00 028-0026-00 - Front Actuator Bar 2019-2022 Rebel, Renegade & Rogue
$119.41
144 028-0027-00 028-0027-00 - Rear Actuator Bar 2019-2022 Rebel, Renegade & Rogue
$82.38
146 028-6075-22 028-6075-22 - Actuator Linkage-Right
$43.86
155 031-0003-00 031-0003-00 - Foot Lift Upright Lever
$17.11
163 032-5052-00 032-5052-00 - Bronze Bushing
$4.81
182.1 013-5300-00 013-5300-00 - 1/2-13 Hex Fange Nuts Zinc w/ Serrations
$2.99
182.3 018-6037-00 018-6037-00 - 1/2-13 X 2-1/4 Hex Bolt
$2.99
182.4 019-8054-00 019-8054-00 -.505 ID X 1 OD X.128 THK Flat Washer Nylon
$2.99

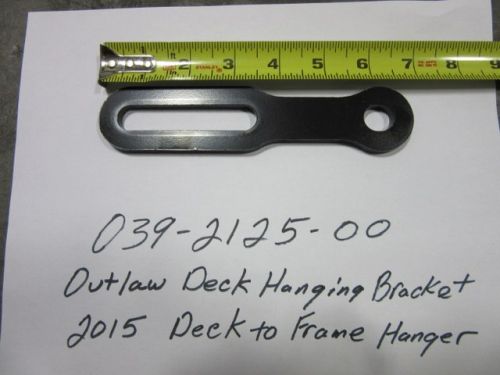

182.5 039-2125-00 039-2125-00 - Outlaw Deck Hanger Bracket (See Models Used On For Details) (obsolete)
use part #039-2125-17
$15.60
182 039-2125-17 039-2125-17 - Deck Hanger Assembly (See Models Used On For Details)
$15.60
197 044-6050-00 044-6050-00 - Security Ring - PC744
$2.99
199 045-6044-00 045-6044-00 - Foot Pedal Knob 1/2-13
$12.48
258 087-5400-00 087-5400-00 - 200lb Gas Spring - 54" Outlaw Deck Damper
$62.40
259 087-6100-00 087-6100-00 - 250lb Gas Spring - 61" Outlaw Deck Damper
$78.01
260 087-7200-00 087-7200-00 - 300 lb Gas Spring -72" Deck Damper
$62.40

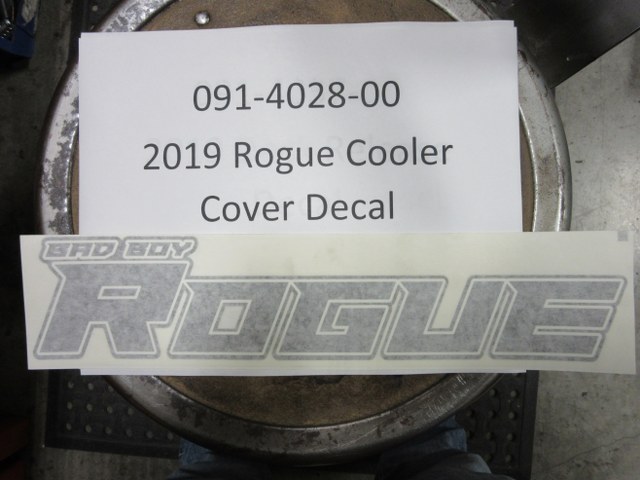

281 091-4028-00 091-4028-00 - 2019-2022 Rogue Cooler Cover Decal
$12.48
