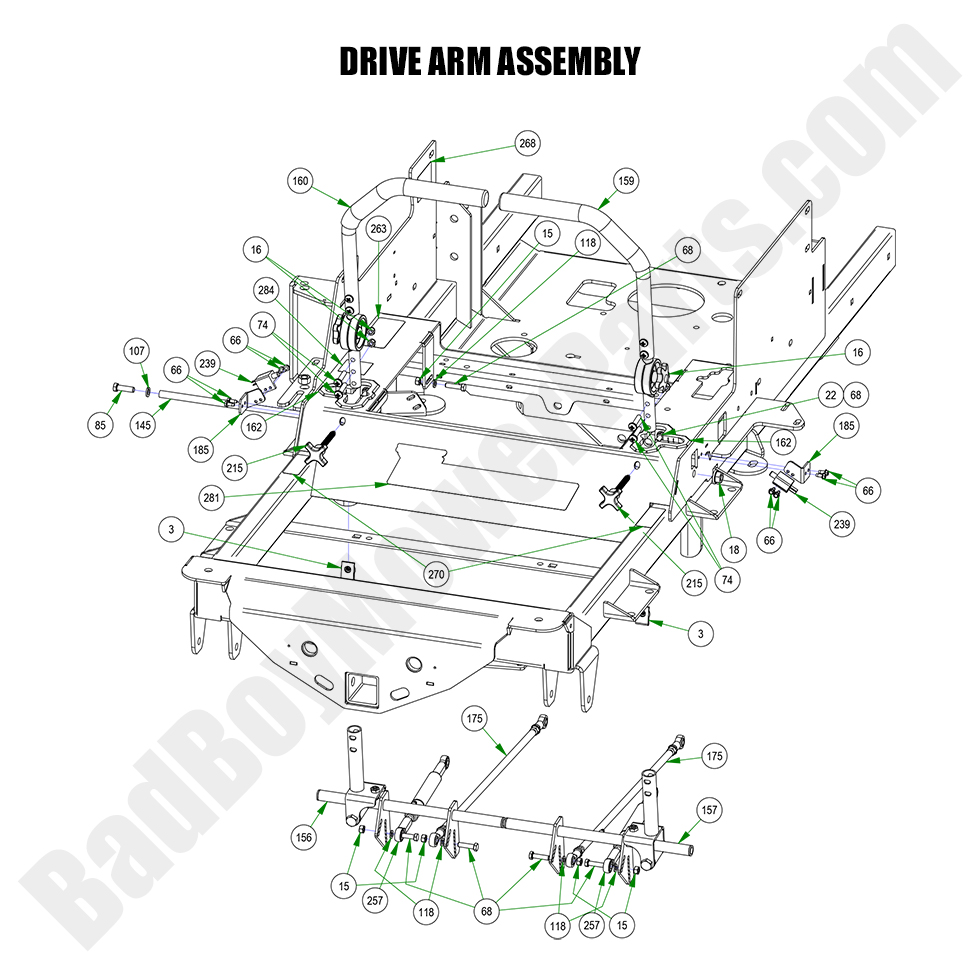

2023 Rogue - Drive Arm Assembly

2023 Rogue - Drive Arm Assembly

The 2023 Rogue Drive Arm Assembly is an essential component that transmits power from the engine to the wheels, enabling smooth movement and operation of your mower. Over time, the drive arm may experience wear or damage, affecting the mower’s performance. Bad Boy Mower Part diagrams are an excellent tool for identifying the exact parts needed for replacement. At BadBoyMowerParts.com, we offer a wide selection of Bad Boy Mower Parts for the drive arm assembly, including arms, shafts, and related components. Our Bad Boy Lawn Mower Parts are made for long-lasting durability and are built to withstand tough mowing conditions. Shopping Bad Boy Parts Online is simple, and with Free Shipping On Orders Over $100, you can replace the drive arm assembly and get back to mowing without the worry of additional shipping fees.

Bad Boy Mower Parts Lookup

2023 Rogue - Drive Arm Assembly
  Position Number SKU Product Title Price
3 013-0021-00 013-0021-00 - Extruded Nut 3/8"-16 3/4"
$4.39
15 013-8043-00 013-8043-00 - 5/16-18 Hex Nut
$2.99
16 013-8047-00 013-8047-00 - 5/16-18 Nylon Insert Locknut - Zinc
$2.99
18 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
22 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
66 018-1080-00 018-1080-00 - 12-24 x 1/2 HWH Bolt - Safety Switch
$2.99
66 018-1040-00 018-1040-00 - Light Plug
$2.99
68 018-2006-00 018-2006-00 - 5/16-18 X 1-1/4 Hex Bolt
$2.99
74 018-2020-18 018-2020-18 - 5/16-18 x 1 3/8" Button Head Torx Drive
$2.99
85 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 Hex Bolt
$2.99
107 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
118 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
145 028-0051-00 028-0051-00 - Steering Actuator Rod 2019-2025 Rebel, Renegade & Rogue
$23.41
156 031-0030-19 031-0030-19 - R Series Right Arm Rod Assembly (See Models Used On For Details)
$85.17
157 031-0031-19 031-0031-19 - R Series Left Arm Rod Assembly, 2019-2023 Rebel/Renegade/Rogue
$85.17
159 031-9005-70 031-9005-70 - Left Hand Adjustable Steering Arm Kit 2019-2022 Rebel, Renegade & Rogue
$132.68
160 031-9055-70 031-9055-70 - Right Hand Adjustable Steering Arm Kit 2019-2022 Rebel, Renegade & Rogue
$115.31
162 032-0002-00 032-0002-00 - Snap-In Bushing 2019-2022 Rebel, Renegade & Rogue
$15.55
175 035-0004-00 035-0004-00 - 2019-2022 Rogue Push Rod Assembly
$42.58
185 039-2160-00 039-2160-00 - Arm Switch Bracket (See Models Used On For More Detail)
$13.90
215 057-5800-00 057-5800-00 - Speed Limiting Knob 3/8-16X 3"
$6.41
239 077-8073-00 077-8073-00 - Safety Switch (See Models Used On For Detail)
$10.99
257 087-0002-00 087-0002-00 - Steering Rod Damper With Spherical Rod Ends For Renegade/Rogue (See Models Used On For Details)
$62.46
263 091-0015-23 091-0015-23 - 2023 EPA Build Date Punch Decal
$2.99
268 091-1020-00 091-1020-00 - Hydraulic Decal (See Models Used On For Details)
$2.99
270 091-1114-00 091-1114-00 - 2018-2022 LH/RH Steering Control Decal Roll
$15.60
281 091-4028-00 091-4028-00 - 2019-2022 Rogue Cooler Cover Decal
$12.48
284 091-4037-00 091-4037-00 - 2019-2022 Deck Release Decal
$8.01
