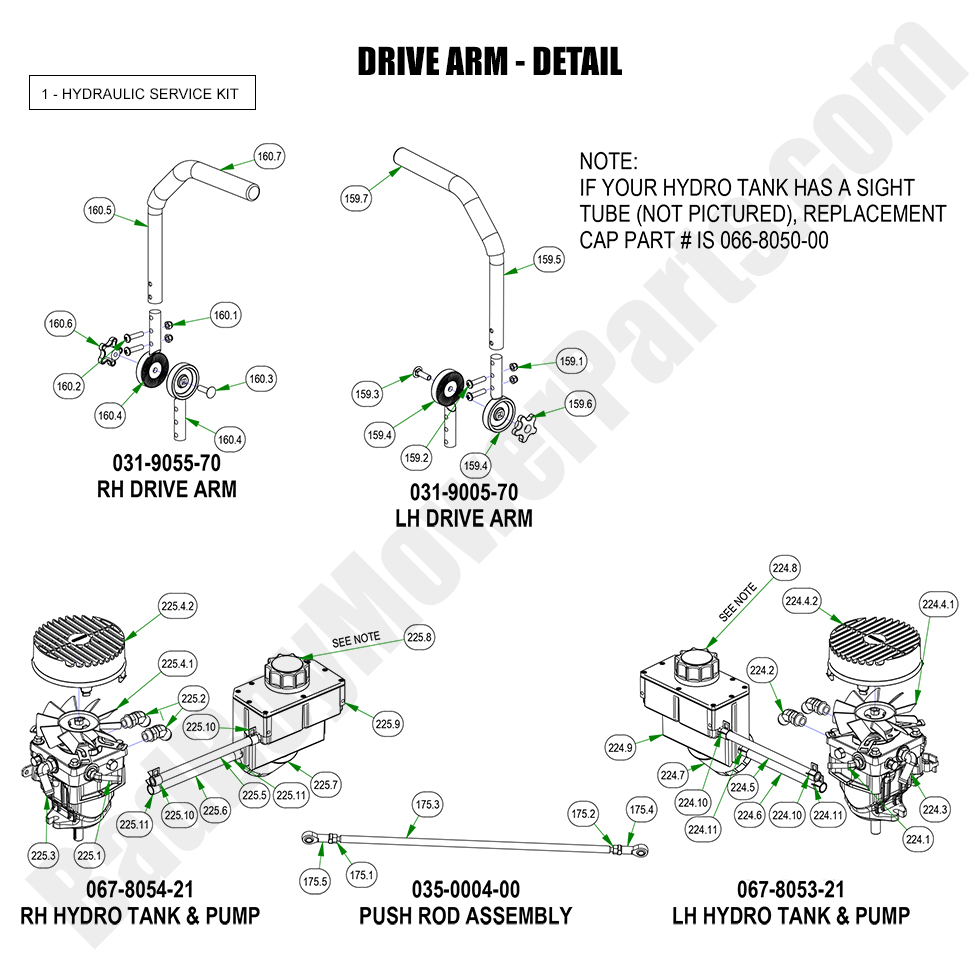

2023 Rogue - Drive Arm - Detail

2023 Rogue - Drive Arm - Detail

The 2023 Rogue Drive Arm - Detail provides a closer look at the specific components that make up the drive arm system, which is crucial for power transfer in your mower. Parts such as the drive shafts, gears, and bearings can become worn over time. Bad Boy Mower Part diagrams make it easy to identify and order the parts you need. BadBoyMowerParts.com offers a comprehensive selection of Bad Boy Mower Parts for the drive arm assembly, from individual components to full assemblies. Our Bad Boy Lawn Mower Parts are designed to provide smooth, reliable operation, ensuring your mower performs at its best. Shopping Bad Boy Parts Online is convenient, and with Free Shipping On Orders Over $100, you can get all the parts you need with no added shipping costs.

Bad Boy Mower Parts Lookup

2023 Rogue - Drive Arm - Detail
  Position Number SKU Product Title Price
1 085-4052-00 085-4052-00 - Pump/Wheel Motor Hydro Service Pack
$133.30
159.0 031-9005-70 031-9005-70 - Left Hand Adjustable Steering Arm Kit 2019-2022 Rebel, Renegade & Rogue
$132.68
159.1 013-8047-00 013-8047-00 - 5/16-18 Nylon Insert Locknut - Zinc
$2.99
159.2 018-2020-18 018-2020-18 - 5/16-18 x 1 3/8" Button Head Torx Drive
$2.99
159.3 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
159.4 031-9005-00 031-9005-00 - Upper/Lower Steering Arm Casting 2019-2023 Rebel, Renegade & Rogue
$28.39
159.5 031-9006-00 031-9006-00 - Steering Arm Tube
$42.79
159.6 045-5000-00 045-5000-00 - Knob - Adjustable Steering Arm
$5.49
159.7 069-4010-00 069-4010-00 - Black Steering Grip
$8.12
160.0 031-9055-70 031-9055-70 - Right Hand Adjustable Steering Arm Kit 2019-2022 Rebel, Renegade & Rogue
$115.31
175.0 035-0004-00 035-0004-00 - 2019-2022 Rogue Push Rod Assembly
$42.58
175.1 013-6049-00 013-6049-00 - 5/16 RH Nut For Push Rods
$4.39
175.2 013-6050-00 013-6050-00 - 5/16 LH Nut For Push Rods
$4.39
175.3 035-0004-01 035-0004-01 - 2019-2022 Rogue Push Rod
$39.74
175.4 048-3002-00 048-3002-00 - Spherical Rod End - LH Thread (See Models Used On For Details)
$32.09
175.5 048-3003-00 048-3003-00 - Spherical Rod End - RH Thread (See Models Used On For Details)
$21.28
224.0 067-8053-21 067-8053-21 - LH Drive Pump & Hydraulic Tank Assembly
$699.99
224.1 024-1200-00 024-1200-00 - Fitting, 3/8 x 3/8 45 Degree, 4603-6-6 (See Models Used On For Details)
$19.93

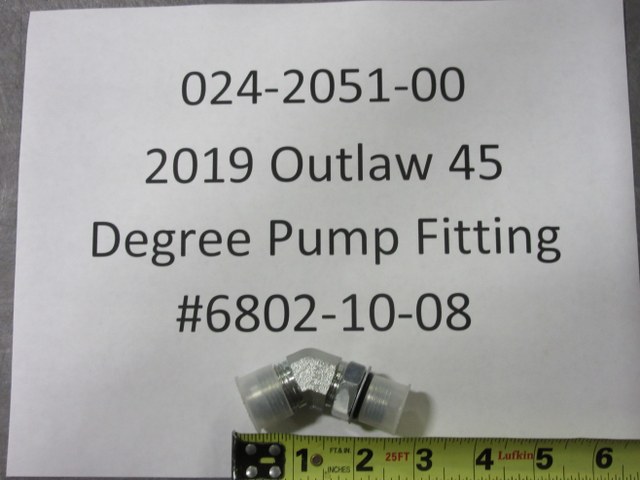

224.2 024-2051-00 024-2051-00 - 2019-2025 Rogue 45 Degree Pump Fitting # 6802-10-08
$14.04
224.3 024-5002-00 024-5002-00 - 90 Degree Fitting, 1/2 x 3/4, 986741
$17.63
224.4.1 015-9999-00 015-9999-00 - Hydro Fan - Fits Hydraulic Pumps
$28.88
224.4.2 014-5600-00 014-5600-00 - Fan Guard 6.5" - Fits Wheel Motor Pumps
$39.81
224.5 051-8063-04 051-8063-04 - 3/8 Clear Hose - 4 1/2"
$4.83
224.6 051-8064-10 051-8064-10 - 1/2 Braided Hose - 9.5"
$6.04
224.7 063-8014-00 063-8014-00 - Hydraulic Filter For Units with Pumps and Wheel Motors
$31.17
224.8 066-8050-22 066-8050-22 - Cap With Dip Stick
$29.95
224.9 067-8053-00 067-8053-00 - Hydro Tank LH (See Models Used On For Details)
$150.99
224.10 072-8065-00 072-8065-00 - 3/8" Hose Clamp - CTB-16-STFS
$2.99
224.11 072-8066-00 072-8066-00 - 1/2" Hose Clamp
$2.99
225.0 067-8054-21 067-8054-21 - RH Drive Pump & Hydraulic Tank Assembly
$699.99
225.9 067-8054-00 067-8054-00 - Hydro Tank RH 2019-2022 Renegade & Rogue
$149.99
