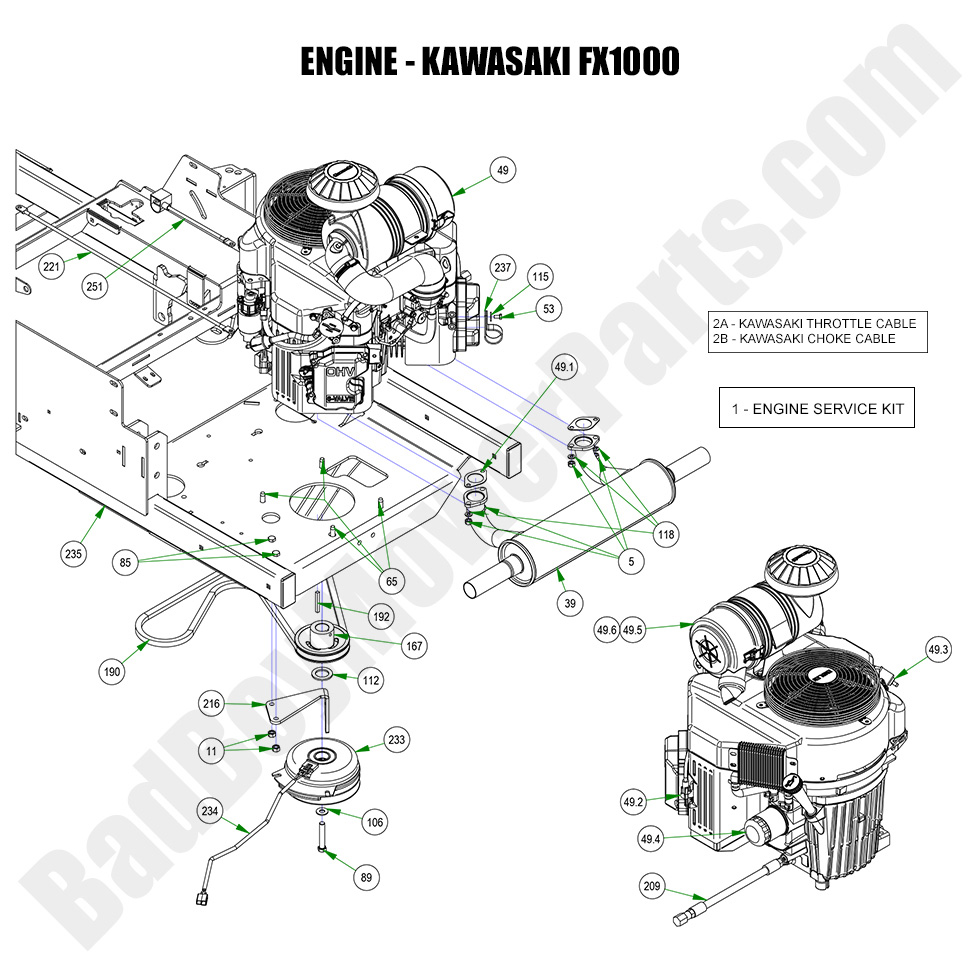

2023 Rogue - Engine - Kawasaki FX1000

2023 Rogue - Engine - Kawasaki FX1000

The 2023 Rogue Engine - Kawasaki FX1000 is a powerful engine designed for high performance and reliability. If you need to replace parts or perform maintenance, Bad Boy Mower Part diagrams can help you locate the necessary components for the Kawasaki FX1000 engine. At BadBoyMowerParts.com, we offer a wide variety of Bad Boy Mower Parts for the Kawasaki FX1000, including air filters, spark plugs, carburetors, and more. Our Bad Boy Lawn Mower Parts are built for durability and performance, ensuring that your engine runs smoothly for years. Shopping for Bad Boy Parts Online is easy, and with Free Shipping On Orders Over $100, you can save on shipping while keeping your mower in top working condition.

Bad Boy Mower Parts Lookup

2023 Rogue - Engine - Kawasaki FX1000
  Position Number SKU Product Title Price
1 063-2000-20 063-2000-20 - Kawasaki FX1000 Engine Service Kit
$123.99
2A 055-8022-00 055-8022-00 - Throttle Cable 35hp Kawasaki (NON-EFI) and 36 Vanguard Engines (NON-EFI) 2019-2025 Rebel & Rogue
$39.03
2B 054-8019-00 054-8019-00 - Choke Cable For 2019-2025 36HP Vanguard and FX1000 Engines
$26.54
5 013-0075-00 013-0075-00 - M8 - 1.25 Zinc Nut
$3.29
11 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
39 015-1010-00 015-1010-00 - Muffler for Kawasaki FX1000V/EFI Engines (See Models Used On For Details)
$199.00
49.1 015-1010-01 015-1010-01 - Exhaust Gasket for FX1000V Kawasaki
$8.79
49.2 515-0011-00 515-0011-00 Spark Plug for FX1000
$5.99
49.3 063-6000-00 063-6000-00 - Universal Inline Fuel Filter
$14.19
49.4 063-8017-00 063-8017-00 - Oil Filter for Kawasaki Fits FX850 and FX1000 and Liquid Cooled /31 KAW
$28.88
49.5 063-8019-00 063-8019-00 - Outer Air Filter, Fits all except 23 Briggs/Diesel
$35.84
49.6 063-8020-00 063-8020-00 - Inner Canister Air Filter - Fits All except 23 Briggs/Diesel
$32.65
49 015-9911-00 015-9911-00 - 2019 - 2024 FX1000V Kawasaki Engine
$2799.99

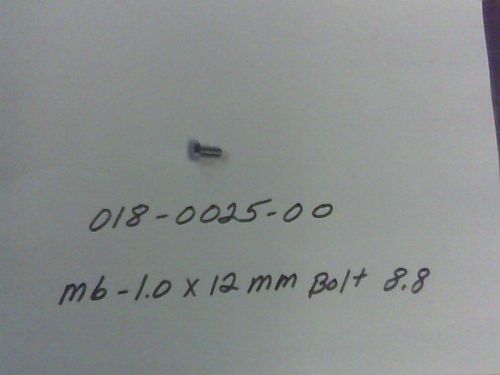

53 018-0025-00 018-0025-00 - M6-1.0x12mm Bolt
$2.99
65 018-1075-00 018-1075-00 - 3/8 x 1 1/8 Engine Mounting Bolt
$2.99
85 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 Hex Bolt
$2.99
89 018-5300-21 018-5300-21 - 7/16-20x2.5 Hex Bolt GR 8 W/ Patch
$3.73
106 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
112 019-6029-00 019-6029-00 - 1.140x1.750x.132 Flat Washer
$2.99
115 019-7040-00 019-7040-00 - 1/4 USS Flat Washer Zinc
$2.99
118 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
167 033-5035-00 033-5035-00 - 4 3/4 Motor Pulley - Extended Shaft (See Models Used On For Details)
$42.58
190 041-8051-00 041-8051-00 - Rogue Pump Belt 68"
$80.24
192 042-5020-00 042-5020-00 - 1/4 X 2 Square Key Stock
$2.99
209 051-5407-00 051-5407-00 - 12" Kawasaki Oil Drain FX850 / FX1000/ FX730
$42.58
216 057-5906-00 057-5906-00 - PTO Engager Holder-Clutch (See Models Used On For Details)
$20.67
221 064-5300-00 064-5300-00 - 24" Red Battery Cable
$21.85
233 070-1000-00 070-1000-00 - PTO Clutch (See Models Used On For Details)
$279.99
234 070-2000-00 070-2000-00 - Clutch Pigtail
$21.24
235 070-2305-00 070-2305-00 - 2023-Newer Rogue Frame--Orange
$1299.99
237 072-5000-00 072-5000-00 - Diesel Hydraulic Hose Clamp
$7.28
251 086-0005-00 086-0005-00 - Cable - Starter to Chassis (See Models Used On For Details)
$10.21
