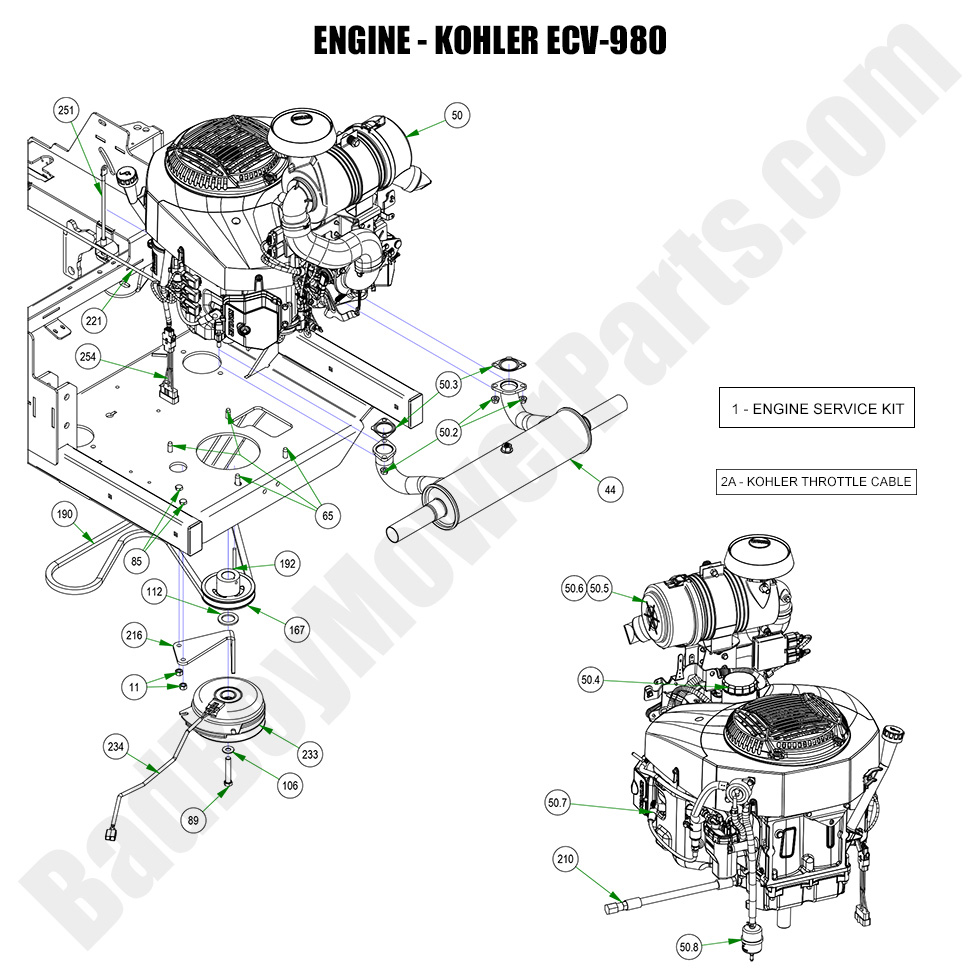

2023 Rogue - Engine - Kohler ECV980 EFI

2023 Rogue - Engine - Kohler ECV980 EFI

The 2023 Rogue Engine - Kohler ECV980 EFI is an efficient engine with EFI technology that provides excellent fuel efficiency and smooth operation. If you're looking to replace or maintain parts such as the fuel pump, air filter, or spark plugs, Bad Boy Mower Part diagrams will help you find the exact components you need. BadBoyMowerParts.com offers a wide selection of Bad Boy Mower Parts for the Kohler ECV980 EFI engine. Our Bad Boy Lawn Mower Parts are built for high-quality performance and durability. Shopping Bad Boy Parts Online is easy and convenient, and with Free Shipping On Orders Over $100, you can order all your necessary parts with no extra cost for shipping.

Bad Boy Mower Parts Lookup

2023 Rogue - Engine - Kohler ECV980 EFI
  Position Number SKU Product Title Price
1 063-2000-19 063-2000-19 - Kohler ECV980 & ECH980 Engine Service Kit
$138.99
2A 055-8021-75 055-8021-75 - 52" Throttle Cable ONLY (See Models Used On - Engine Diagrams To Verify This Fits your Mower)
$28.88
11 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
44 015-1025-00 015-1025-00 - Kohler ECV-980 EFI Exhaust (See Models Used On for Detail)
$74.89
50.2 013-8240-00 013-8240-00 - M8 Nut For Exhaust (See Models Used On For Details)
$7.36
50.3 015-9990-01 015-9990-01 - Muffler Gasket for 015-9990-00/015-9991-00
$10.99
50.4 063-5400-00 063-5400-00 - Oil Filter (Long) for Kohler Engines
$22.46
50.5 063-8020-00 063-8020-00 - Inner Canister Air Filter - Fits All except 23 Briggs/Diesel
$32.65
50.6 063-8019-00 063-8019-00 - Outer Air Filter, Fits all except 23 Briggs/Diesel
$35.84
50.7 015-8000-02 015-8000-02 - Spark Plug for ECV980 and ECH980
$7.69
50.8 063-6000-00 063-6000-00 - Universal Inline Fuel Filter
$14.19
50 015-9991-00 015-9991-00 - Kohler 38HP EFI 999 ECV980
$4699.00
65 018-1075-00 018-1075-00 - 3/8 x 1 1/8 Engine Mounting Bolt
$2.99
85 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 Hex Bolt
$2.99
89 018-5300-21 018-5300-21 - 7/16-20x2.5 Hex Bolt GR 8 W/ Patch
$3.73
106 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
112 019-6029-00 019-6029-00 - 1.140x1.750x.132 Flat Washer
$2.99
167 033-5035-00 033-5035-00 - 4 3/4 Motor Pulley - Extended Shaft (See Models Used On For Details)
$42.58
190 041-8051-00 041-8051-00 - Rogue Pump Belt 68"
$80.24
192 042-5020-00 042-5020-00 - 1/4 X 2 Square Key Stock
$2.99
210 051-5409-00 051-5409-00 - Kohler 980 Oil Drain Hose
$28.88
216 057-5906-00 057-5906-00 - PTO Engager Holder-Clutch (See Models Used On For Details)
$20.67
221 064-5300-00 064-5300-00 - 24" Red Battery Cable
$21.85
233 070-1000-00 070-1000-00 - PTO Clutch (See Models Used On For Details)
$279.99
234 070-2000-00 070-2000-00 - Clutch Pigtail
$21.24
251 086-0005-00 086-0005-00 - Cable - Starter to Chassis (See Models Used On For Details)
$10.21
254 086-9006-21 086-9006-21 2021-2024 Harness Adapter - Yamaha/Kohler EFI
$42.58
