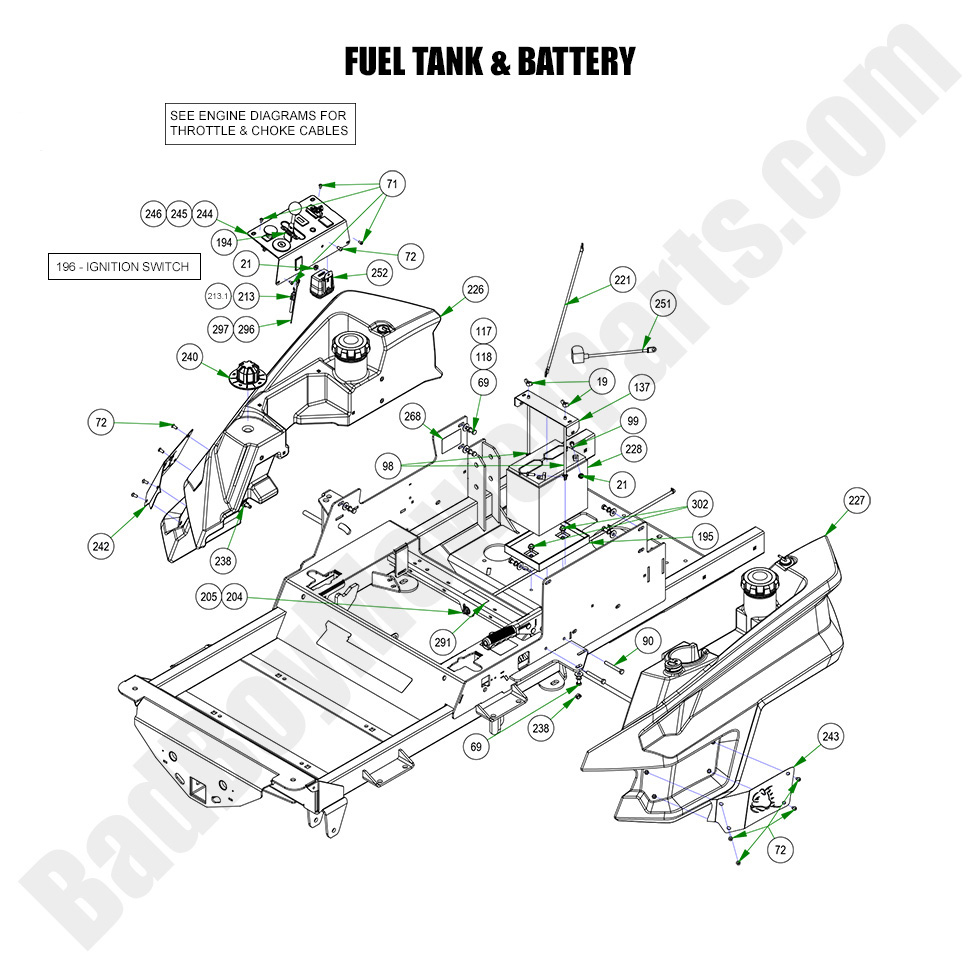

2023 Rogue - Fuel Tanks & Battery

2023 Rogue - Fuel Tanks & Battery

The 2023 Rogue Fuel Tanks & Battery are essential components for your mower’s operation, ensuring a steady fuel supply and reliable starting power. Over time, fuel tanks can develop cracks or leaks, and batteries may lose charge capacity. Bad Boy Mower Part diagrams can help you identify the correct fuel tank or battery replacement for your specific model. At BadBoyMowerParts.com, we offer a full range of Bad Boy Mower Parts for the fuel system and battery, including durable tanks and high-performance batteries. Our Bad Boy Lawn Mower Parts are designed for easy installation and long-lasting use. Shopping for Bad Boy Parts Online is simple, and with Free Shipping On Orders Over $100, you’ll get the parts you need delivered right to your door without any extra shipping fees.

Bad Boy Mower Parts Lookup

2023 Rogue - Fuel Tanks & Battery
  Position Number SKU Product Title Price
19 013-8051-00 013-8051-00 - 1/4-20 Wing Nuts Zinc
$2.99
21 013-9001-00 013-9001-00 - 1/4-20 Hex Flange Nuts Zinc w/Serrations
$2.99
69 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
71 018-2010-00 018-2010-00 - 10-32 X 3/8 BS C/S 18-8 SS
$2.99
72 018-2012-00 018-2012-00 - 1/4-20 X 1/2 BS C/S 18-8 SS
$2.99
90 018-5344-00 018-5344-00 - 5/16 x 2 1/2 Bolt
$2.99
98 018-8050-00 018-8050-00 - 1/4-20 X 8 Carriage Bolts Zinc Bolt for Battery Hold Down
$2.99
99 018-8052-00 018-8052-00 - 1/4-20 X 3/4 Hex Bolt
$2.99
117 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
118 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99

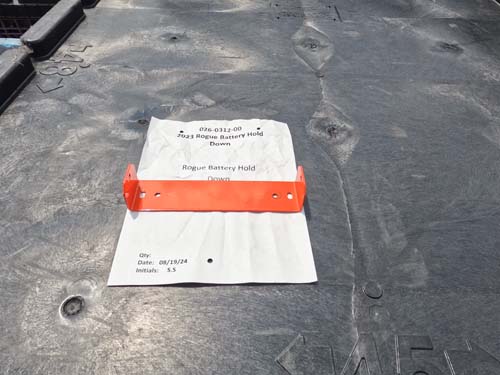

137 026-0312-00 026-0312-00 - Battery Hold Down Plate - Orange
$21.39
194 042-9000-00 042-9000-00 - Ignition Key
$4.06
195 043-8931-00 043-8931-00 - 2023 Battery Tray Only
$20.32
196 077-8076-00 077-8076-00 - 3-Position Ignition Switch (key not included)
$21.39
221 064-5300-00 064-5300-00 - 24" Red Battery Cable
$21.85
226 067-9950-50 067-9950-50 - Rebel/Rogue/Renegade Right Fuel Tank
$341.99
227 067-9960-50 067-9960-50 - Rebel/Rogue/Renegade Left Fuel Tank
$262.99
238 072-8076-00 072-8076-00 - 12.5mm/15mm OETIKER 2 Ear Clamp
$2.99
240 077-9001-00 077-9001-00 - Deck Height Dial Knob 2 to 6 2019-2022 Renegade & Rogue
$21.39
242 079-3290-00 079-3290-00 - Right Fuel Tank Insert 2019-& Up Rebel, Renegade, & Rogue
$8.79
243 079-3291-00 079-3291-00 - Renegade/Rogue/Rebel Left Fuel Tank Insert
$8.79
244 079-3481-10 079-3481-10 - Rogue/Rebel EFI Control Panel Assy
$109.00
245 079-3481-19 079-3481-19 - Rebel/Rogue Control Panel Assy (See Models Used On for Detail)
$109.00
246 079-3581-22 079-3581-22 - Drive by Wire Control Panel (See Models Used On For Detail)
$199.99
251 086-0005-00 086-0005-00 - Cable - Starter to Chassis (See Models Used On For Details)
$10.21
252 086-2050-19 086-2050-19 - Wiring Harness-No Display 2019-2025 Rebel & Rogue
$363.44
268 091-1020-00 091-1020-00 - Hydraulic Decal (See Models Used On For Details)
$2.99
291 091-6022-00 091-6022-00 R-Series Shut Off Valve Decal
$2.99
297 216-1051-00 216-1051-00 - Female Terminal End
$2.99
302 030-7044-00 030-7044-00 - 5/16-18 x HWH unslot (F) tcs zinc
$2.99
