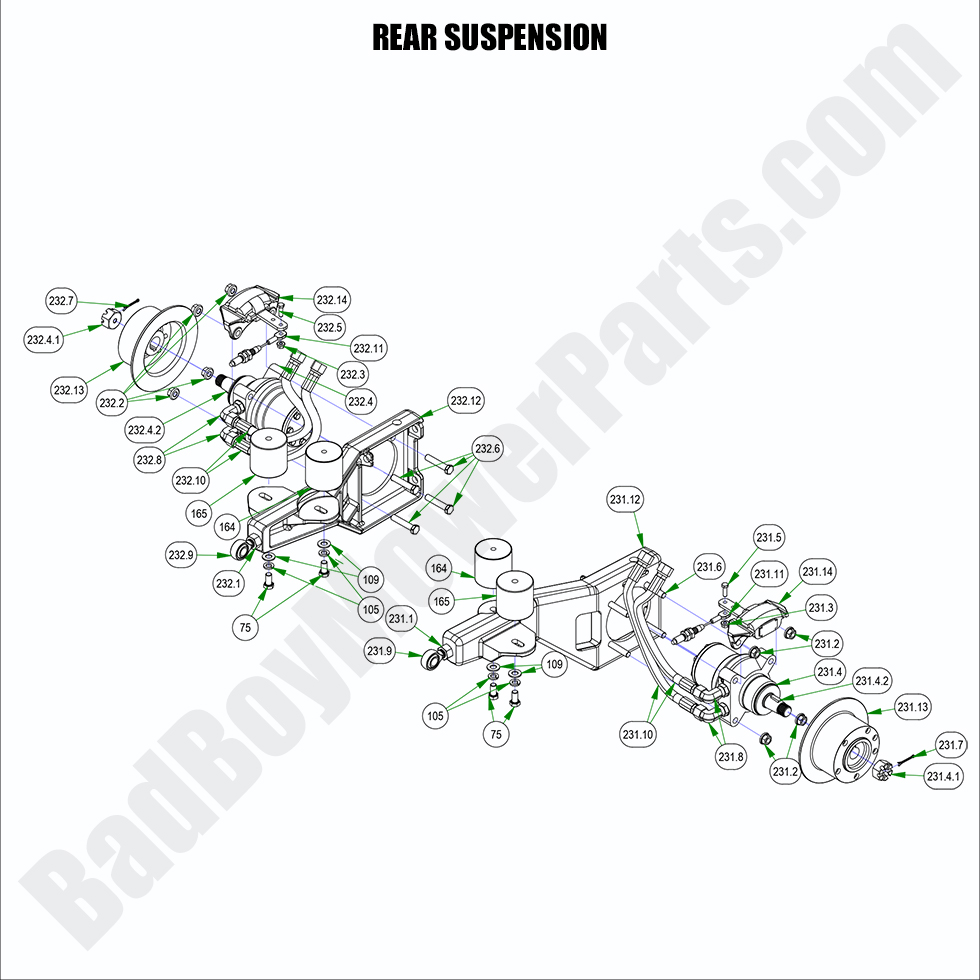

2023 Rogue - Rear Suspension

2023 Rogue - Rear Suspension

The 2023 Rogue Rear Suspension is a vital system that helps absorb shock and ensure a smooth ride over rough terrain. If your rear suspension begins to wear out, you may experience a rougher ride or reduced stability. Bad Boy Mower Part diagrams can help you identify the right suspension components for your mower. At BadBoyMowerParts.com, we offer a comprehensive range of Bad Boy Mower Parts for the rear suspension, including springs, shock absorbers, and mounting hardware. Our Bad Boy Lawn Mower Parts are built to provide optimal performance and durability. When you shop for Bad Boy Parts Online, you can quickly find the right parts for your rear suspension system, and with Free Shipping On Orders Over $100, you’ll get the parts delivered directly to you at no extra cost.

Bad Boy Mower Parts Lookup

2023 Rogue - Rear Suspension
  Position Number SKU Product Title Price
75 018-2030-00 018-2030-00 - 1/2 x 1 Bolt
$2.99
105 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
109 019-5702-00 019-5702-00 - 1/2 SAE Flat Washer GR 8
$2.99
164 032-8999-00 032-8999-00 - Vibration Mount - Blue Dot Rear Mount for Diesel Models
$64.22
165 032-9000-00 032-9000-00 - Isolator - Green Dot
$70.97
231.1 013-0022-00 013-0022-00 - 3/4"-16 Fine Full Nut
$7.36
231.2 013-6040-00 013-6040-00 - 1/2-13 Centerlock Flange Nut
$2.99
231.3 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
231.4.1 013-7050-00 013-7050-00 - 1" Castle Nut for Wheel Motor (obsolete)
use part #013-7055-00
$18.18
231.4.2 042-7041-00 042-7041-00 - Woodruff Key-Wheel Motor
$14.19
231.4 015-4601-00 015-4601-00 - 18cc Parker Wheel Motor
$599.99
231.5 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
231.6 018-6041-00 018-6041-00 - 1/2-13 x 2.75 Gr.8 Hex Head Bolt
$2.99
231.7 020-7022-00 020-7022-00 - 1/8 X 2-1/4 Cotter Pins Zinc
$2.99
231.8 024-2065-00 024-2065-00 - Rogue/Renegade Wheel Motor 90 Degree Fitting
$18.67
231.9 048-7001-00 048-7001-00 - 3/4-16 RH Male Rod End for suspension mowers -CMX12
$28.39
231.10 051-6006-00 051-6006-00 - 20" Hydraulic Hose (See Models Used On For Detail)
$46.84
231.11 064-8054-00 064-8054-00 - Short Brake Cable-Suspension Models (See Models Used On For Details)
$51.47
231.12 070-0001-00 070-0001-00 - Left Trailing Arm 2019-2022 Renegade & Rogue
$291.91
231.13 092-5201-00 092-5201-00 - 2007-2008 AOS/Diesel, 2014-2020 Diesel/Outlaw XP, 2019-2025 Renegade/Rogue Brake Disc 8
$119.36
231.14 092-7000-00 092-7000-00 - 2014-2018 Right Brake Caliper Outlaw XP/Diesel, 2019-2024 Renegade/Rogue Left Brake Caliper w/bracket
$99.32
232.4 015-4600-00 015-4600-00 - 18cc Parker Wheel Motor-Right (See Models Used On for Detail)
$599.99
232.11 064-9002-00 064-9002-00 - Long Brake Cable- 2019-2025 Renegade, Rogue
$51.47
232.12 070-0002-00 070-0002-00 - Right Trailing Arm 2019-2022 Renegade & Rogue
$219.99
232.14 092-7001-00 092-7001-00 - 2014-2018 Left Brake Caliper Outlaw XP/Diesel, 2019-2025 Renegade/Rogue
$99.32
