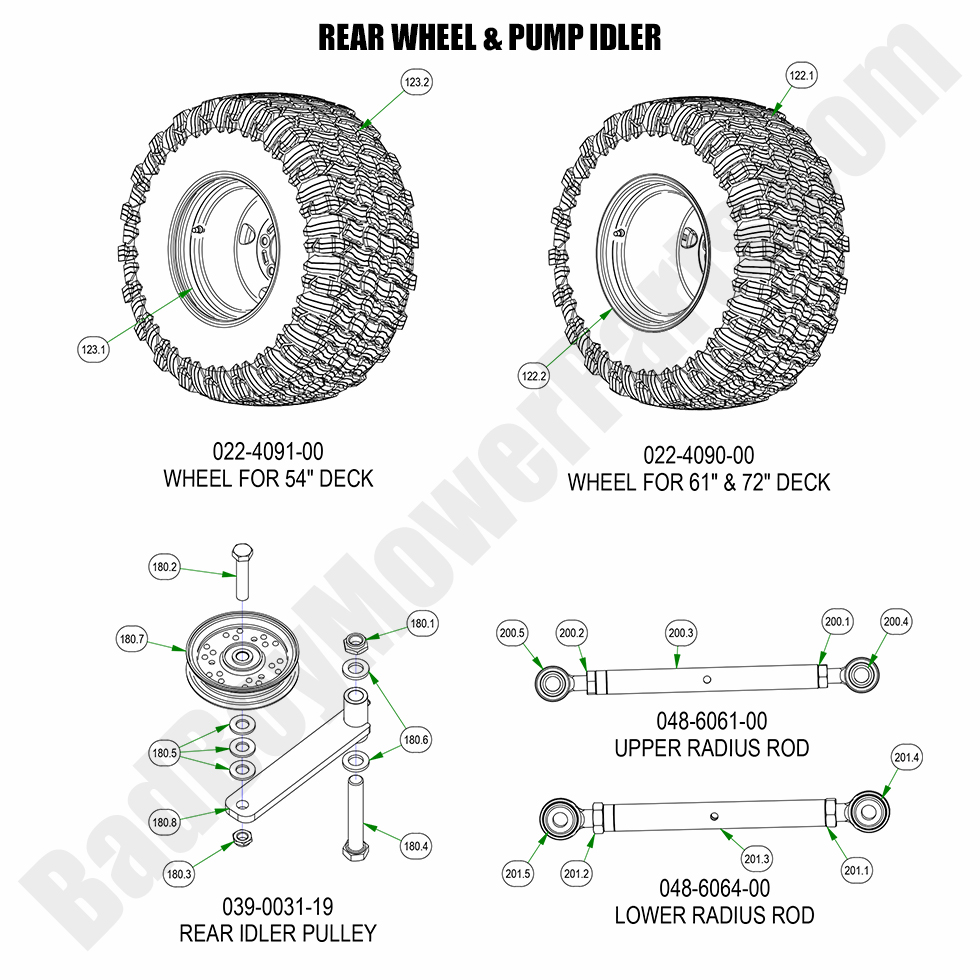

2023 Rogue - Rear Wheel & Pump Idler

2023 Rogue - Rear Wheel & Pump Idler

The 2023 Rogue Rear Wheel & Pump Idler are critical components for your mower’s traction and efficiency. The rear wheels provide the necessary support for movement, while the pump idler helps regulate hydraulic pressure for smooth operation. If these components become worn or damaged, your mower’s performance may suffer. Bad Boy Mower Part diagrams are a valuable tool for identifying the exact parts needed for replacement. At BadBoyMowerParts.com, we offer a wide selection of Bad Boy Mower Parts for the rear wheel and pump idler system, ensuring smooth and efficient operation. Our Bad Boy Lawn Mower Parts are made for long-lasting reliability, even under tough conditions. When you shop Bad Boy Parts Online, you can easily find the parts you need, and with Free Shipping On Orders Over $100, you won’t have to worry about additional shipping costs.

Bad Boy Mower Parts Lookup

2023 Rogue - Rear Wheel & Pump Idler
  Position Number SKU Product Title Price
122.0 022-4090-00 022-4090-00 - 26x12-12 Reaper Tire/Wheel Assembly
$371.99
122.1 022-4085-00 022-4085-00 - 2019-2025 26x12-12 Reaper Turf
$249.99
122.2 022-4086-00 022-4086-00 - 2019-2022 10.5" Wheel Fits 022-4090-00
$190.99
123.0 022-4091-00 022-4091-00 - 2019-2022 54" Tire Assy-26x12-12 Reaper Turf-8.5" Rim 54 Rogue Models only 8.5 Wide W
$379.99
123.1 022-4070-00 022-4070-00 - Black Wheel 12x8.5 (See Models Used On for Detail)
$141.99
180.1 013-5301-00 013-5301-00 - 5/8-11 Nylon Insert Jam Locknut Zinc
$2.99
180.2 018-0015-00 018-0015-00 - 1/2-13 x 2 1/2 Hex Bolt
$2.99
180.4 018-5311-00 018-5311-00 - 5/8-11 X 4" Hex Bolts Zinc
$4.06
180.5 019-5702-00 019-5702-00 - 1/2 SAE Flat Washer GR 8
$2.99
180.6 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
180.7 033-6001-00 033-6001-00 - 4 3/4 Idler Pulley (See Models Used On For Details)
$31.22
180.8 039-0031-00 039-0031-00 - Idler Arm (See Models Used On For Details)
$27.06
180 039-0031-19 039-0031-19 - Pump Idler Assembly For Rogue (See Models Used On For Details)
$70.97
200.1 013-0019-00 013-0019-00 - Nut, 5/8-18 RH
$4.39
200.2 013-0020-00 013-0020-00 - Nut, 5/8-18 LH
$4.39
200.3 048-0001-00 048-0001-00 - Suspension Link Body-RH and LH Threads 2019-& Up Renegade & Rogue
$28.32
200.4 048-6062-00 048-6062-00 - RH 5/8" Heim For Suspension (See Models Used On For Details)
$42.58
200.5 048-6063-00 048-6063-00 - LH 5/8" Heim For Suspension (See Models Used On For Details)
$42.58
200 048-6061-00 048-6061-00 - Rear Radius Rod W/ Greaseable Heim (See Models Used On For Detail)
$58.84
201.2 013-0028-00 013-0028-00 - 3/4-16 LH Half Nut
$2.99
201.3 048-0002-00 048-0002-00 - Rear Radius Rod (3/4 Body) [Rogue, Reneg No Longer Available
Obsolete.
201.4 048-6065-00 048-6065-00 - 3/4 Body 5/8 Hole, Heim RH (See Models Used On For Details)
$42.58
201.5 048-6066-00 048-6066-00 - 3/4 Body 5/8 Hole, Heim LH (See Models Used On For Details)
$42.58
201 048-6064-00 048-6064-00 - Suspension linkage (3/4 body | 5/8 Hole)
$78.08
