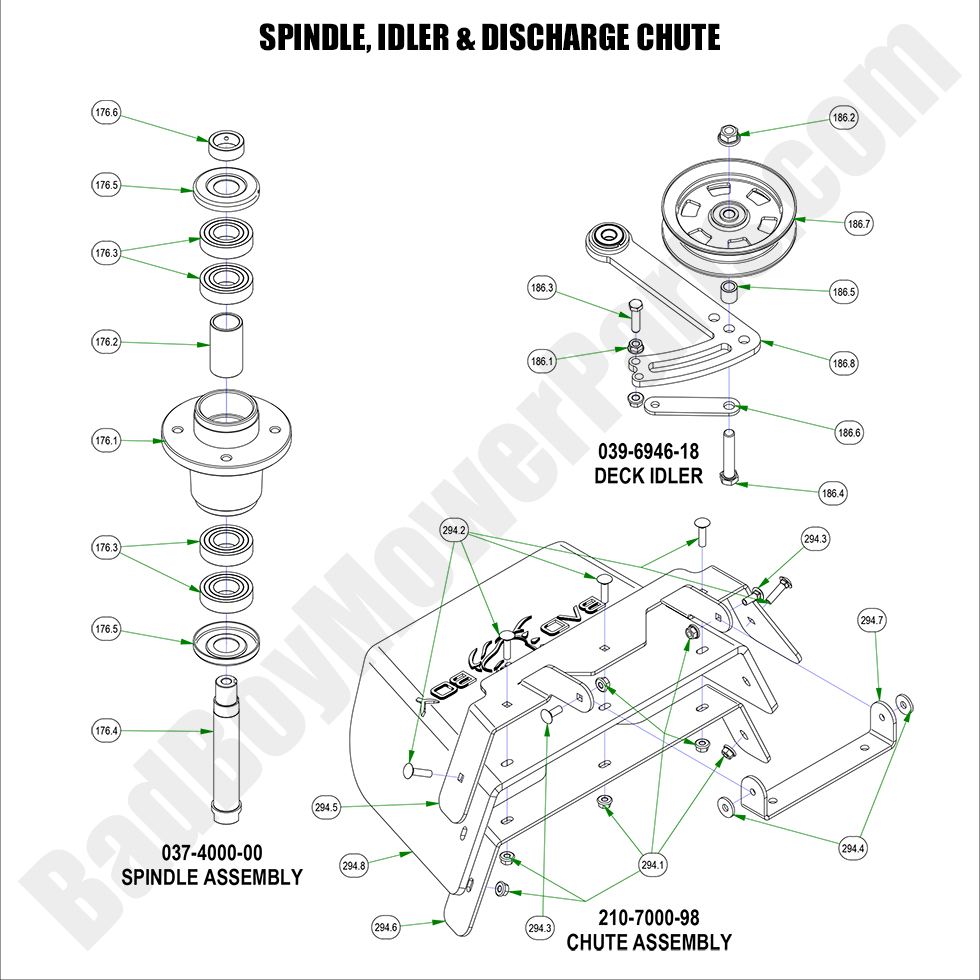

2023 Rogue - Spindle, Idler & Discharge

2023 Rogue - Spindle, Idler & Discharge

The 2023 Rogue Spindle, Idler & Discharge components are integral to your mower's cutting system. The spindles support the mower blades, the idlers help manage the belt tension, and the discharge chute directs the grass clippings. If any of these parts become damaged or worn, it can lead to poor performance or difficulty with mowing. Bad Boy Mower Part diagrams are an excellent resource for identifying the necessary parts for replacement. At BadBoyMowerParts.com, we offer a wide selection of Bad Boy Mower Parts for the spindle, idler, and discharge system. Our Bad Boy Lawn Mower Parts are made to ensure optimal cutting performance and durability. Shopping for Bad Boy Parts Online is quick and easy, and with Free Shipping On Orders Over $100, you can get the parts you need without the added expense of shipping.

Bad Boy Mower Parts Lookup

2023 Rogue - Spindle, Idler & Discharge
  Position Number SKU Product Title Price
176.0 037-4000-00 037-4000-00 - Commercial Spindle Assembly (See Models Used On For Details)
$291.91
176.2 037-4002-00 037-4002-00 - Spindle Spacer (See Models Used On For Details)
$7.28
176.3 037-6023-00 037-6023-00 - Spindle Bearing (See Models Used On For Details) (obsolete)
use part #037-6029-00
$42.58
176.4 037-6026-00 037-6026-00 - Short Spindle Shaft - No Grooved Shaft
$83.77
176.5 037-8002-00 037-8002-00 - Dust Cover (Used on 037-4000-00 & 037-6015-50)
$11.76
176.6 037-9050-00 037-9050-00 - Collar Spacer - Top of Spindle (See Models Used On For Details)
$7.28

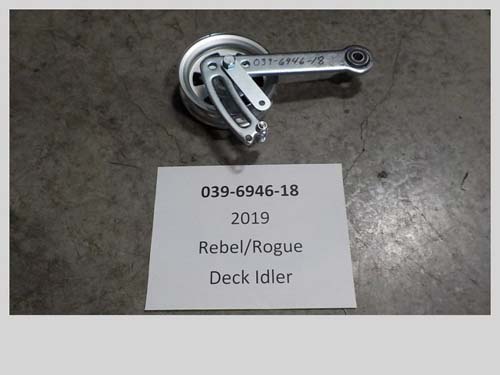

186.0 039-6946-18 039-6946-18 - Deck Idler Assembly
$78.08
186.1 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
186.2 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
186.3 018-6012-00 018-6012-00 - 3/8 x 1 1/2 Bolt
$2.99
186.4 018-6036-00 018-6036-00 - 1/2-13 X 2-3/4 Bolt Zinc
$2.99
186.5 025-5203-00 025-5203-00 - Spacer 3/4" OD x 1/2" ID x 0.75"
$3.29

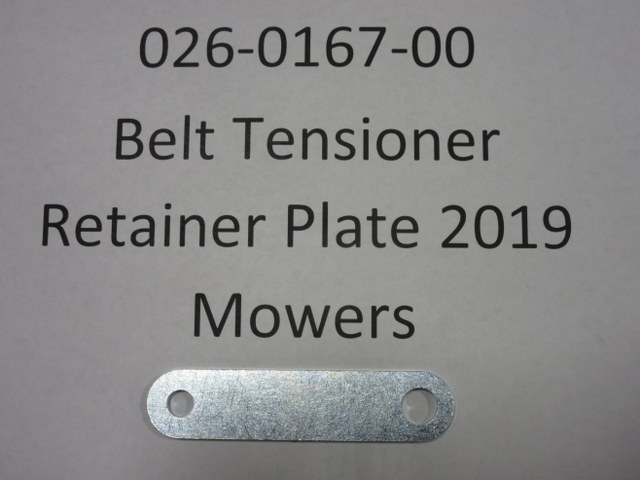

186.6 026-0167-00 026-0167-00 - Belt Tensioner Retainer Plate 2019-2022 Rebel, Renegade & Rogue
$26.74
186.7 033-8050-00 033-8050-00 - 2017-2025 5" Split Idler Pulley-Tensioner Only
$35.48

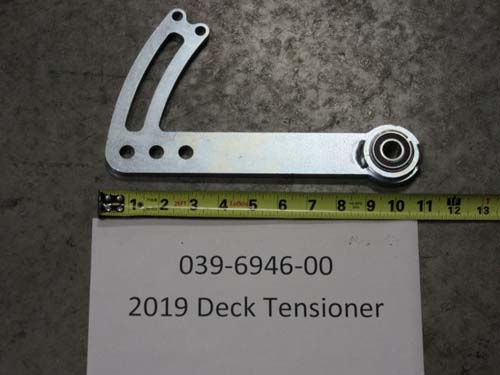

186.8 039-6946-00 039-6946-00 - Deck Tensioner 2019-2025 Rebel, Renegade & Rogue
$35.48
294.0 210-7000-98 210-7000-98 - Chute Assembly (See Models Used On for Detail)
$159.22
294.1 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
294.2 018-4703-00 018-4703-00 - 5/16-18 X 1-1/4 Carriage Bolt
$2.99
294.3 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
294.3 018-8066-00 018-8066-00 - 5/16 x 7/8 Carriage Bolt
$2.99
294.4 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99

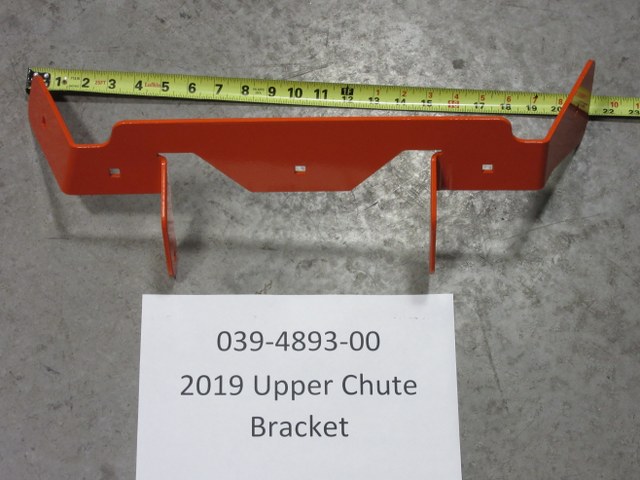

294.5 039-4893-00 039-4893-00 - Upper Chute Bracket (See Models Used On For Details)
$46.84

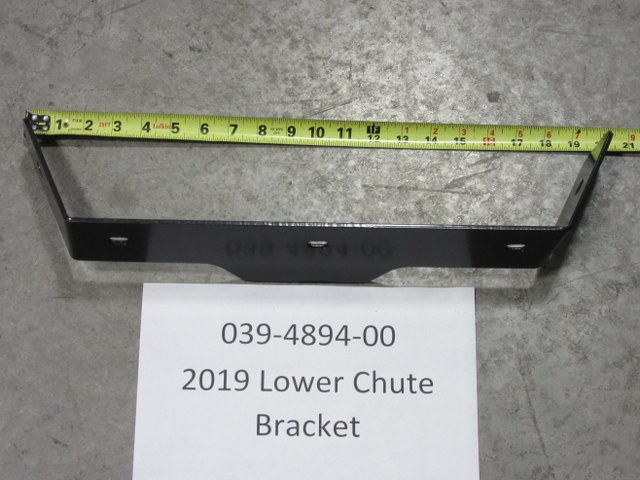

294.6 039-4894-00 039-4894-00 - Lower Chute Bracket (See Models Used On For Details)
$43.72

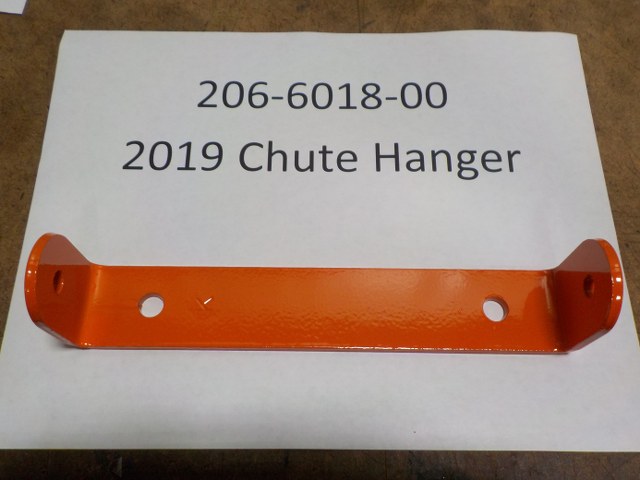

294.7 206-6018-00 206-6018-00 - Chute Hanger 2019-2025 Rebel, Revolt, Renegade & Rogue
$9.67

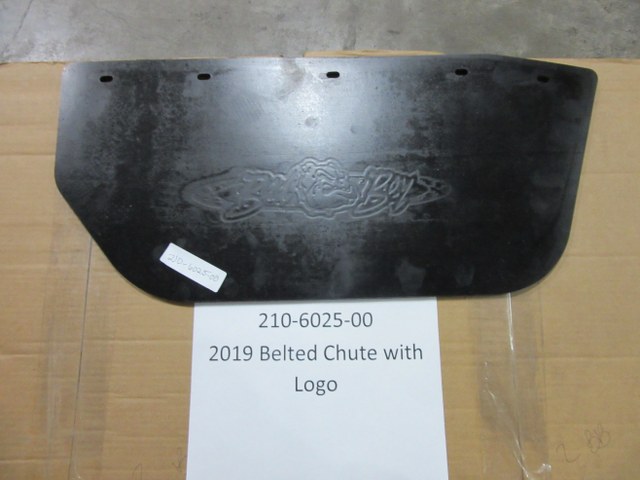

294.8 210-6025-00 210-6025-00 - Belted Chute with Logo 2019-& Up Rebel, Revolt, Renegade & Rogue
$62.40
