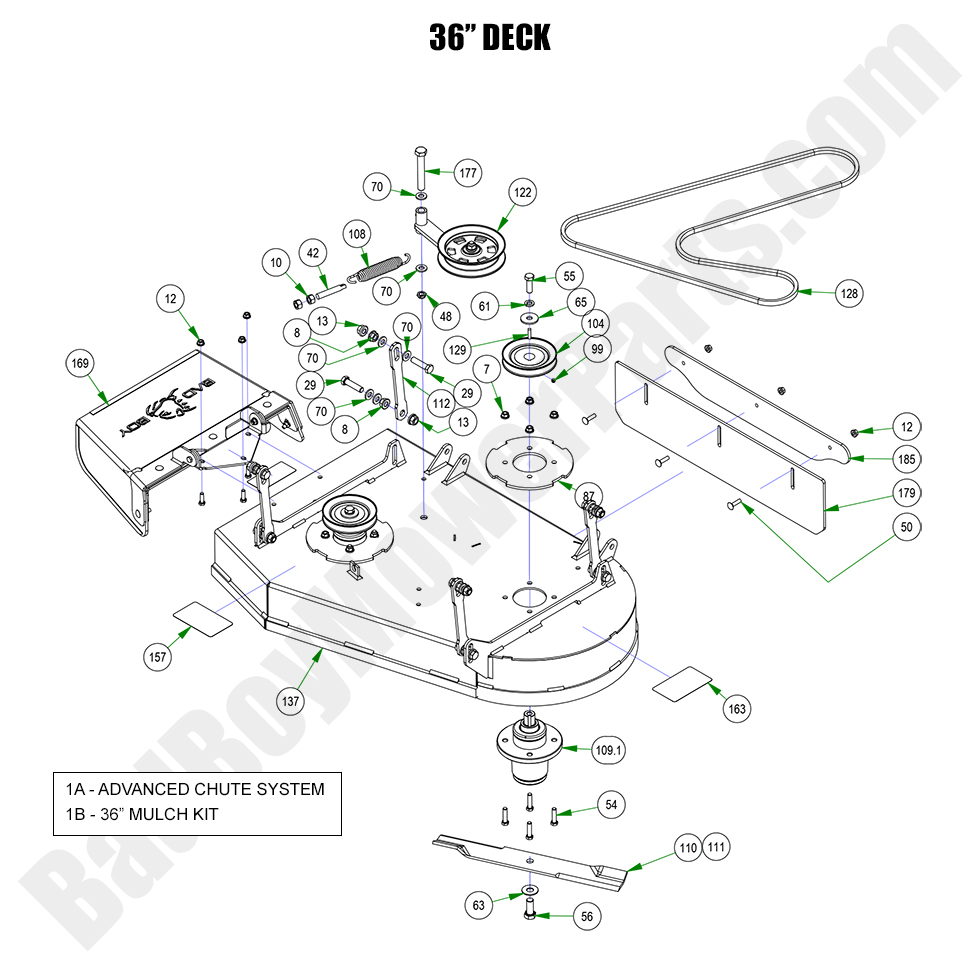

2023 Walk Behind - 36" Deck Assembly

2023 Walk Behind - 36" Deck Assembly

The 2023 Walk Behind 36" Deck Assembly is designed to give you a compact yet powerful cutting surface for your mower. This deck is ideal for maneuvering in tighter spaces, offering precision and control. The assembly includes the deck shell, pulleys, spindles, and other components that work together to provide an efficient mowing experience. Bad Boy Mower Part diagrams are an excellent resource to help you identify and replace parts when necessary. At BadBoyMowerParts.com, we offer a full selection of Bad Boy Mower Parts to keep your 36" deck in top condition. Our Bad Boy Lawn Mower Parts are built for durability and long-lasting performance. Shopping for Bad Boy Parts Online is simple, and with Free Shipping On Orders Over $100, you can easily replace parts without worrying about extra shipping fees.

Bad Boy Mower Parts Lookup

2023 Walk Behind - 36" Deck Assembly
  Position Number SKU Product Title Price
1A 088-6050-00 088-6050-00 - Cable Advanced Chute System Assembly (See Models Used On For Detail)
$249.00
1B 210-0036-00 210-0036-00 - 36" Walk Behind Mulch Kit w/Blades
$239.99
7 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
8 013-5300-00 013-5300-00 - 1/2-13 Hex Fange Nuts Zinc w/ Serrations
$2.99
10 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
12 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
13 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
29 018-0022-00 018-0022-00 - 1/2-13 x 2 Grade 8 Hex Bolt
$2.99
42 018-2004-50 018-2004-50 - All Thread (See Models Used On For Details)
$12.94
48 018-4010-00 018-4010-00 - 1/2-13 Nylon Insert Jam Locknut Zinc Orange Nylon
$2.99
50 018-4703-00 018-4703-00 - 5/16-18 X 1-1/4 Carriage Bolt
$2.99
54 018-6012-00 018-6012-00 - 3/8 x 1 1/2 Bolt
$2.99
55 018-6019-00 018-6019-00 - 1/2-20 X 1-1/2 Bolt Zinc, Fine Thread Bolt
$2.99
56 018-6020-00 018-6020-00 - 5/8-18 X 1-1/2 GR 8 Hex Bolts Zinc Yellow for Blade Spindle
$2.99
61 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
63 019-5038-00 019-5038-00 - 5/8 Flat Washer
$2.99
65 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
70 019-8054-00 019-8054-00 -.505 ID X 1 OD X.128 THK Flat Washer Nylon
$2.99
99 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
104 033-6003-00 033-6003-00 - 5" Spindle Deck Pulley - DB-80 (without set screw) (See Models Used On For Details)
$42.58
108 034-2020-00 034-2020-00 - Idler Spring (See Models Used On For Detail)
$17.11
109 037-4000-00 037-4000-00 - Commercial Spindle Assembly (See Models Used On For Details)
$291.91
110 038-0001-00 038-0001-00 - 54" & 2024 Raider 36" High Lift Fusion Blade
$22.99

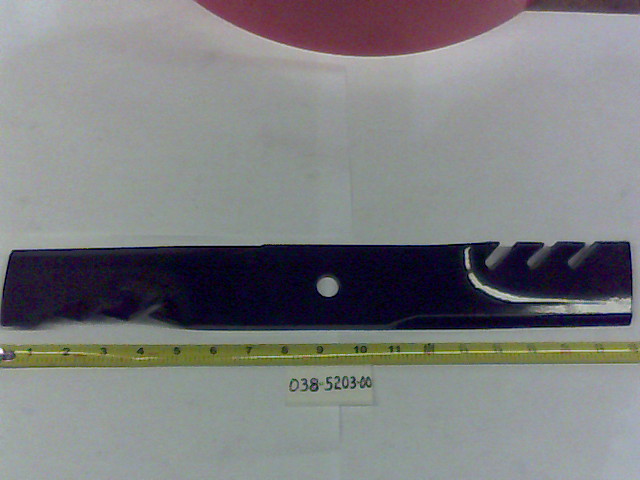

111 038-5203-00 038-5203-00 - 36" & 52" Gator Mulching Blade
$22.99
122 039-6945-23 039-6945-23 - Deck Idler Assembly
$99.99

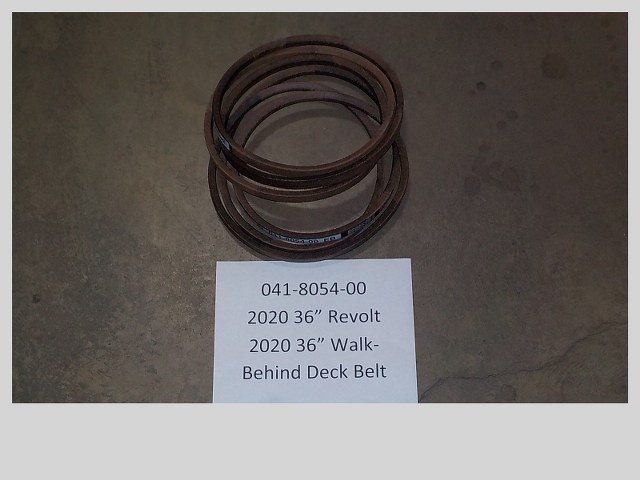

128 041-8054-00 041-8054-00 - Deck Belt 2020-Newer Revolt and Walk Behind (See Models Used On For Details)
$80.24
129 042-6030-00 042-6030-00 - 1/4" x 1" Square Key
$4.81
137 060-2317-00 060-2317-00 - 2023 36" Walk Behind Deck--Painted
$1399.99
157 091-0418-00 091-0418-00 - 2017-2024 Walk Behind 36" Deck Belt Route
$4.37
163 091-3601-18 091-3601-18 - 2018-2022 36" Deck Decal
$8.79
169 210-6005-48 210-6005-48 - Chute Assembly (See Models Used On For Detail)
$169.99
177 018-5311-00 018-5311-00 - 5/8-11 X 4" Hex Bolts Zinc
$4.06
179 084-5006-00 084-5006-00 - 2023 ZT Stripe Kit Rubber
$56.77
185 026-0307-00 026-0307-00 - 2023 4' & 5' Striping Kit Plate-Painted
$10.99
