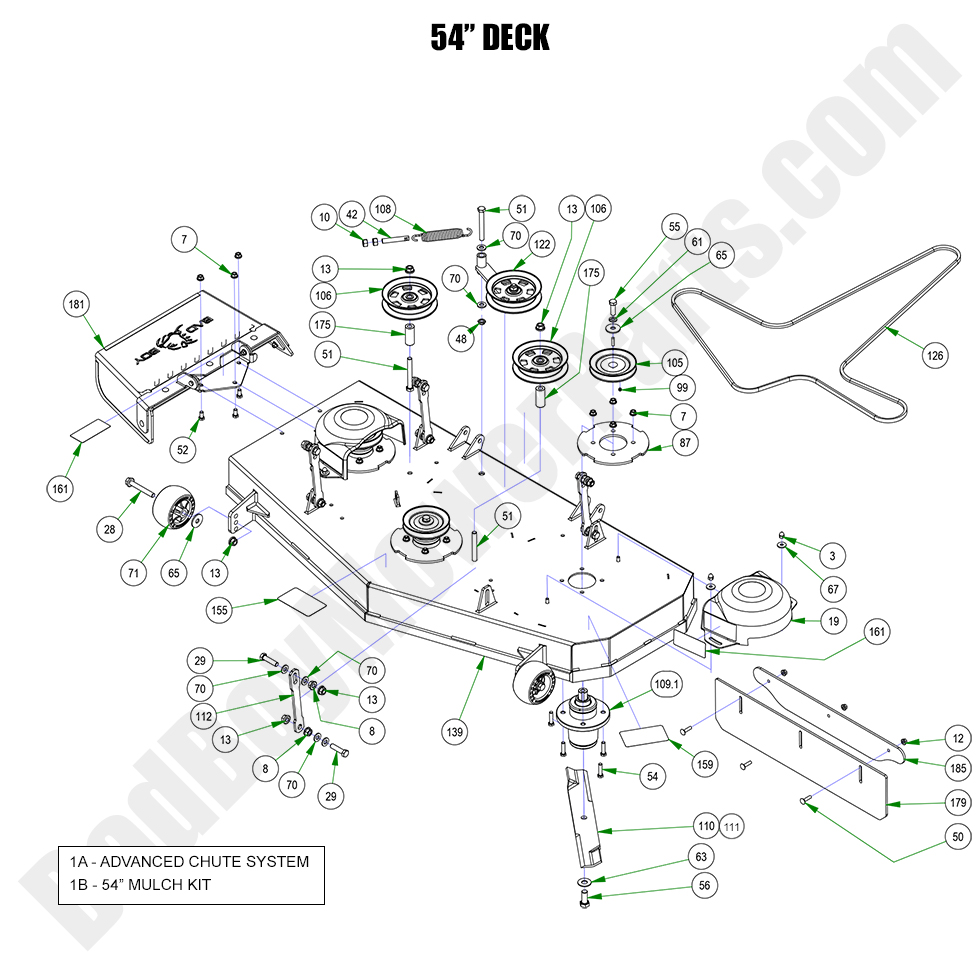

2023 Walk Behind - 54" Deck Assembly

2023 Walk Behind - 54" Deck Assembly

The 2023 Walk Behind 54" Deck Assembly is designed for those who need a larger deck for cutting more grass in less time. It includes the full deck structure, blades, pulleys, and spindles to ensure you can mow efficiently. The 54" deck is ideal for larger areas and offers excellent cutting performance, but it may require part replacements after extensive use. Bad Boy Mower Part diagrams are a helpful tool to find the exact parts for your deck assembly. At BadBoyMowerParts.com, we stock a variety of Bad Boy Mower Parts for the 54" deck, ensuring you can maintain top-quality performance. Our Bad Boy Lawn Mower Parts are made to last, providing durability and reliability. When you shop for Bad Boy Parts Online, you’ll find the parts you need quickly, and with Free Shipping On Orders Over $100, your order will be delivered directly to your doorstep.

Bad Boy Mower Parts Lookup

2023 Walk Behind - 54" Deck Assembly
  Position Number SKU Product Title Price
1A 088-6050-00 088-6050-00 - Cable Advanced Chute System Assembly (See Models Used On For Detail)
$249.00
1B 210-0354-00 210-0354-00 - 54" Mulch Kit w/Blades (Not for MZ or Avenger) (See Models Used On for Detail)
$318.45
3 013-0004-00 013-0004-00 - Acorn Nut-Pulley Cover
$3.29
7 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
8 013-5300-00 013-5300-00 - 1/2-13 Hex Fange Nuts Zinc w/ Serrations
$2.99
10 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
12 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
13 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
19 014-4000-00 014-4000-00 - Pulley Cover (See Models Used On For Details)
$28.39
28 018-0010-00 018-0010-00 - Deck Wheel Bolt
$6.48
29 018-0022-00 018-0022-00 - 1/2-13 x 2 Grade 8 Hex Bolt
$2.99
42 018-2004-50 018-2004-50 - All Thread (See Models Used On For Details)
$12.94
48 018-4010-00 018-4010-00 - 1/2-13 Nylon Insert Jam Locknut Zinc Orange Nylon
$2.99
50 018-4703-00 018-4703-00 - 5/16-18 X 1-1/4 Carriage Bolt
$2.99
51 018-5019-00 018-5019-00 - 1/2-13 X 4 GR 8 Hex Bolt
$4.39
52 018-5250-00 018-5250-00 - 3/8-16 X 3/4 Hex Bolts
$2.99
54 018-6012-00 018-6012-00 - 3/8 x 1 1/2 Bolt
$2.99
55 018-6019-00 018-6019-00 - 1/2-20 X 1-1/2 Bolt Zinc, Fine Thread Bolt
$2.99
56 018-6020-00 018-6020-00 - 5/8-18 X 1-1/2 GR 8 Hex Bolts Zinc Yellow for Blade Spindle
$2.99
61 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
63 019-5038-00 019-5038-00 - 5/8 Flat Washer
$2.99
65 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
67 019-6050-00 019-6050-00 -.360 ID Black Plastic Washer
$2.99
70 019-8054-00 019-8054-00 -.505 ID X 1 OD X.128 THK Flat Washer Nylon
$2.99
71 022-1000-00 022-1000-00 - Deck Wheel Only
$17.11
87 026-0025-00 026-0025-00 - Deck Spindle Support Plate
$14.19
99 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
105 033-6006-00 033-6006-00 - 5.25" Deck Pulley-54" ZT/Maverick/Outlaw (without set screw)
$35.48
106 033-7201-25 033-7201-25 - 5 3/4 Idler Pulley
$35.48
108 034-2020-00 034-2020-00 - Idler Spring (See Models Used On For Detail)
$17.11
109.1 037-4000-00 037-4000-00 - Commercial Spindle Assembly (See Models Used On For Details)
$291.91
110 038-0001-00 038-0001-00 - 54" & 2024 Raider 36" High Lift Fusion Blade
$22.99

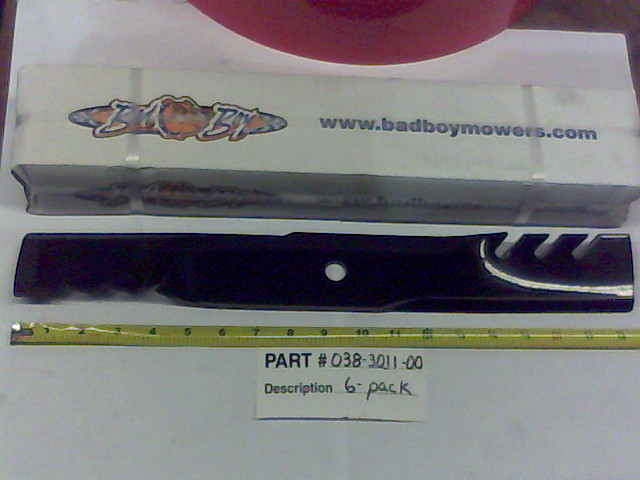

111 038-3011-00 038-3011-00 - 54" & 2024 Raider 36" Gator Blade-Fusion 6-Pack (038-0003-00)
$118.99
122 039-6945-23 039-6945-23 - Deck Idler Assembly
$99.99
126 041-6027-00 041-6027-00 - B128 Deck Belt for 2010-2016 48" MZ & MZ Magnum & 2020 - 2023 Walk-Behind 54"
$80.24
139 060-2319-00 060-2319-00 - 2023 54" Walk Behind Deck--Painted
$1399.99

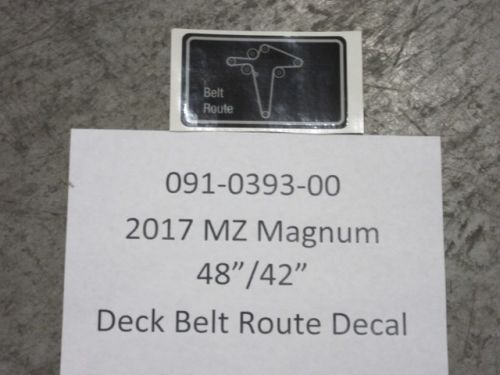

155 091-0393-00 091-0393-00 - 48"/ 42" Deck Route Decal (See Models Used On for Details)
$11.76
159 091-0904-18 091-0904-18 - 54" Deck Decal (See Models Used On For Details)
$6.41
161 091-3012-00 091-3012-00 - Danger Decal-Spindle/Discharge
$2.99
175 025-0032-00 025-0032-00 - Stationary Idler Spacer (See Models Used On For Details)
$8.46
179 084-5006-00 084-5006-00 - 2023 ZT Stripe Kit Rubber
$56.77
181 210-6005-98 210-6005-98 - Chute Assembly (See Models Used On For Detail)
$149.99
185 026-0307-00 026-0307-00 - 2023 4' & 5' Striping Kit Plate-Painted
$10.99
