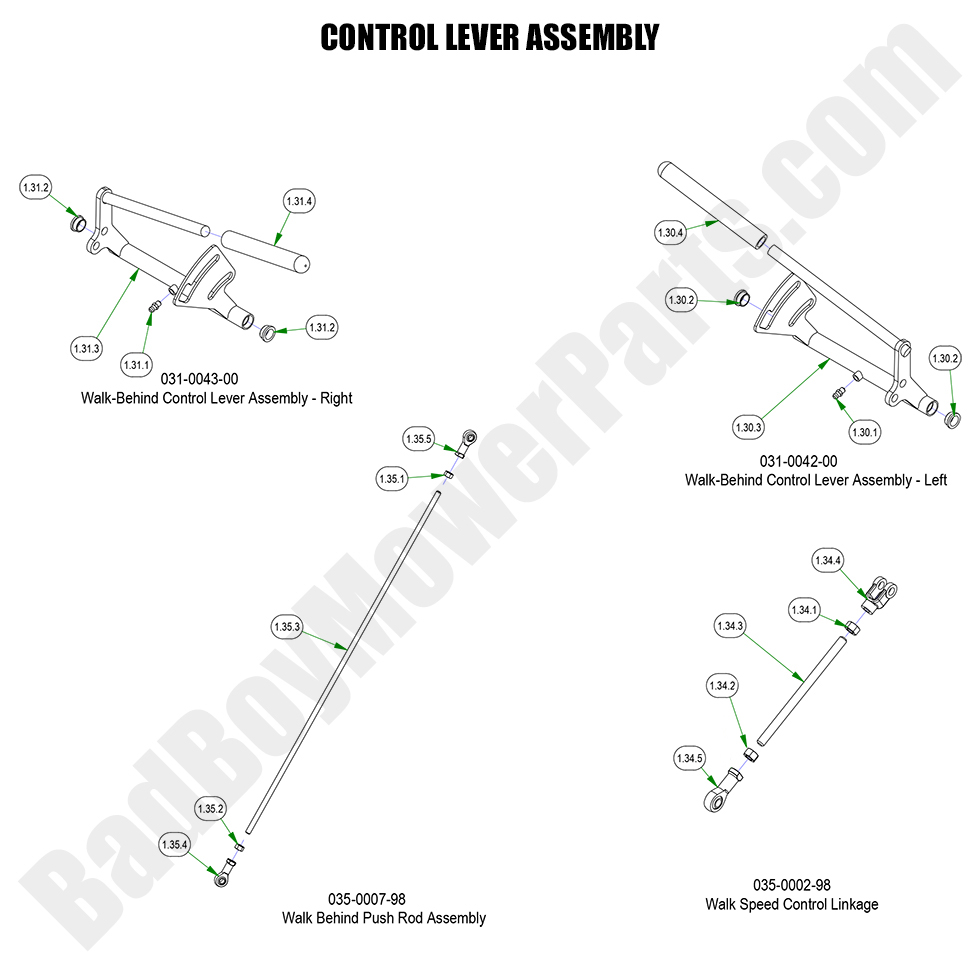

2023 Walk Behind - Control Lever Assembly

2023 Walk Behind - Control Lever Assembly

The 2023 Walk Behind Control Lever Assembly is an essential part of your mower's operation, as it allows you to control the speed and direction of the mower with ease. If the control lever becomes worn or damaged, it can affect your ability to maneuver the mower properly. Bad Boy Mower Part diagrams are incredibly useful for identifying the exact control lever and related components needed for replacement. At BadBoyMowerParts.com, we offer a wide selection of Bad Boy Mower Parts for the control lever assembly, including levers, springs, and mounting hardware. Our

Bad Boy Mower Parts Lookup

2023 Walk Behind - Control Lever Assembly
  Position Number SKU Product Title Price
1.30.1 024-6034-00 024-6034-00 - 1/4 Drive-in Grease Fitting
$2.99
1.30.2 031-0032-00 031-0032-00 - Drive Arm Bushing (Plastic Flange)
$7.28
1.30.3 031-0042-01 031-0042-01 - 2020-2022 Walk-Behind Control Lever Weldment-Left
$32.09
1.30.4 069-2014-00 069-2014-00 - 2019-2022 Cushioned Grip (See Models Used On For Details)
$8.01
1.30 031-0042-00 031-0042-00 - Walk-Behind Control Lever Assy-Left (See Models Used On For Detail)
$42.58
1.31.3 031-0043-01 031-0043-01 - Walk-Behind Control Lever Weldment-Right--Black
$32.09
1.31 031-0043-00 031-0043-00 - Walk-Behind & Raider Control Lever Assy-Right
$42.58
1.34.2 013-6051-00 013-6051-00 - 3/8-24 Hex Jam Nut Zinc
$2.99
1.34.3 035-0002-00 035-0002-00 - Walk Behind Speed Control Rod (See Models Used On For Detail)
$17.07
1.34.4 046-0001-00 046-0001-00 - Walk Behind Left Hand Yoke Speed Control
$10.99
1.34.5 048-3000-00 048-3000-00 - Spherical Rod End (See Models Used On For Details)
$14.19
1.34 035-0002-98 035-0002-98 - 2017-2024 Walk Behind Speed Control Rod Assembly
$38.47
1.35.3 035-0007-00 035-0007-00 - 2020 Walk-Behind Push Rod (Rod Only) No Longer Available
Obsolete.
1.35.5 048-3001-00 048-3001-00 - Left Handed Spherical Rod End (obsolete)
use part #035-0007-98
$42.79
1.35 035-0007-98 035-0007-98 - Walk-Behind Push Rod Assembly
$42.79
