2023 Walk Behind - Deck Height Linkage

2023 Walk Behind - Deck Height Linkage

The 2023 Walk Behind Deck Height Linkage plays a vital role in adjusting the cutting height of your mower's deck. If the linkage becomes damaged or worn, you may find it difficult to adjust the deck to the desired height. Replacing the linkage is crucial for maintaining an even cut across your lawn. Bad Boy Mower Part diagrams are a great resource for identifying the specific parts you need for the deck height linkage. At BadBoyMowerParts.com, we offer a full selection of Bad Boy Mower Parts for deck height adjustments, including linkages, springs, and related components. Our Bad Boy Lawn Mower Parts are made for lasting durability, ensuring smooth operation. When you shop Bad Boy Parts Online, you can easily find the right parts and enjoy Free Shipping On Orders Over $100.

Bad Boy Mower Parts Lookup

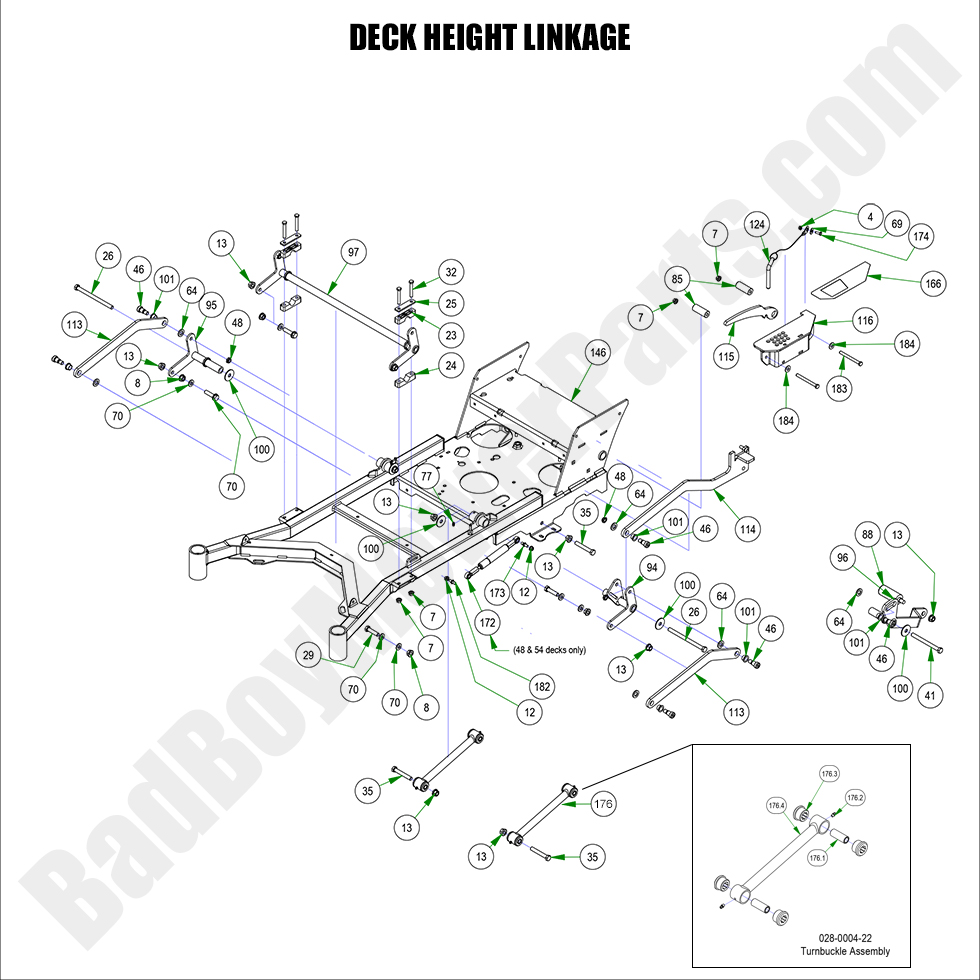

2023 Walk Behind - Deck Height Linkage
  Position Number SKU Product Title Price
4 013-2050-00 013-2050-00 - 1/4-20 Nylon Insert Flange Nut
$2.99
7 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
8 013-5300-00 013-5300-00 - 1/2-13 Hex Fange Nuts Zinc w/ Serrations
$2.99
12 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
13 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
23 017-9077-00 017-9077-00 - Pillow Block-Male
$21.28
24 017-9078-00 017-9078-00 - Pillow Block-Female (obsolete)
use part #017-9077-00
$21.28
25 017-9079-00 017-9079-00 - Pillow Block-Metal Plate
$21.28
26 018-0004-00 018-0004-00 - 1/2-13 X 7" Hex Bolt -
$5.49

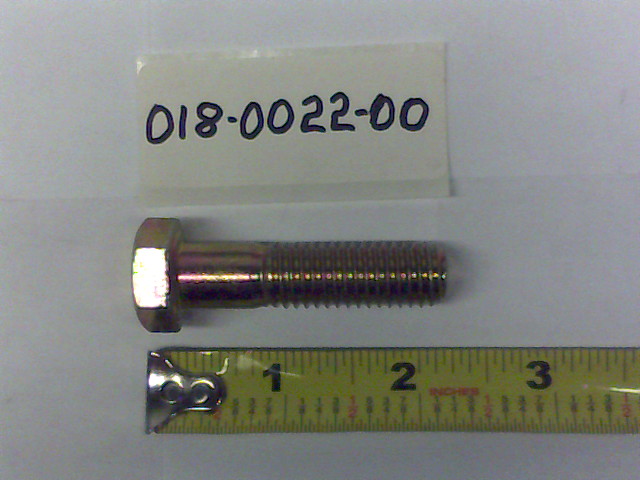

29 018-0022-00 018-0022-00 - 1/2-13 x 2 Grade 8 Hex Bolt
$2.99
32 018-0028-00 018-0028-00 - 3/8x2 1/2" Hex Bolt
$4.39
35 018-0050-00 018-0050-00 - 1/2-13 X 3.25 Hex Bolt-
$2.99
41 018-1090-00 018-1090-00 - 1/2-13x5 1/2 Hex Bolt
$3.29
46 018-3001-00 018-3001-00 - 5/8 x 5/8 Shoulder Bolt
$15.61
48 018-4010-00 018-4010-00 - 1/2-13 Nylon Insert Jam Locknut Zinc Orange Nylon
$2.99
64 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
69 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
70 019-8054-00 019-8054-00 -.505 ID X 1 OD X.128 THK Flat Washer Nylon
$2.99
77 024-3050-00 024-3050-00 - 1/4" Drive-in Grease Fitting (See Models Used On For Details)
$2.99
85 025-0081-00 025-0081-00 - Stand On Spacer 2.5" With Shoulder
$14.97
88 026-0026-00 026-0026-00 - Knurled Foot Pedal
$39.03

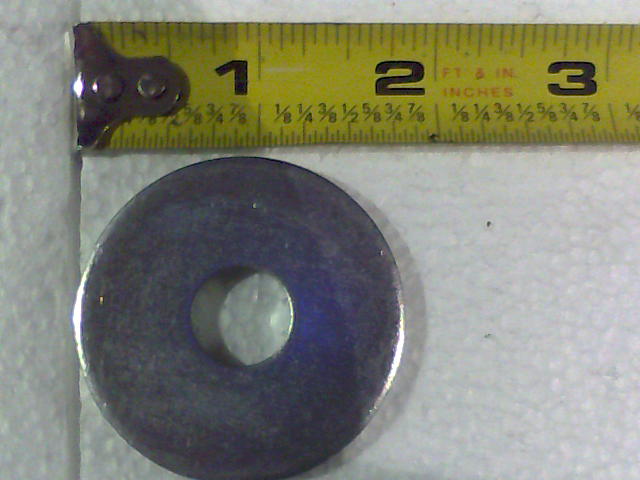

100 032-4051-00 032-4051-00 - Snubbing Washer for Rubber Compression Mount
$17.02
101 032-5052-00 032-5052-00 - Bronze Bushing
$4.81
124 040-4004-00 040-4004-00 - 2023 Revolt Deck Height Pin
$16.04
166 091-9002-00 091-9002-00 - 2023 WB Deck Height Decal No Longer Available
Obsolete.
172 087-5400-00 087-5400-00 - 200lb Gas Spring - 54" Outlaw Deck Damper
$62.40
173 018-2055-00 018-2055-00 - 10mm Damper Stud-XP Linkage
$2.99
174 018-8052-00 018-8052-00 - 1/4-20 X 3/4 Hex Bolt
$2.99

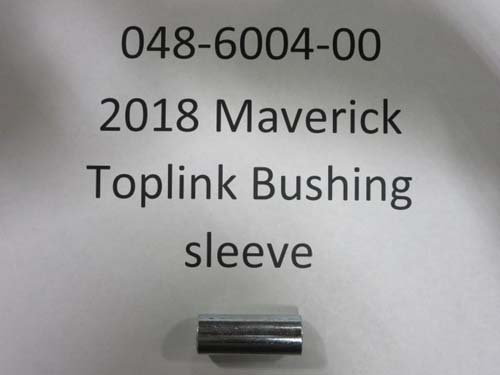

176.1 048-6004-00 048-6004-00 - Maverick/Compact Outlaw Topllink Bushing Sleeve (See Models Used On For Details)
$11.29
176.2 024-0001-00 024-0001-00 - 1/4-28 Threaded Grease Fitting
$2.99

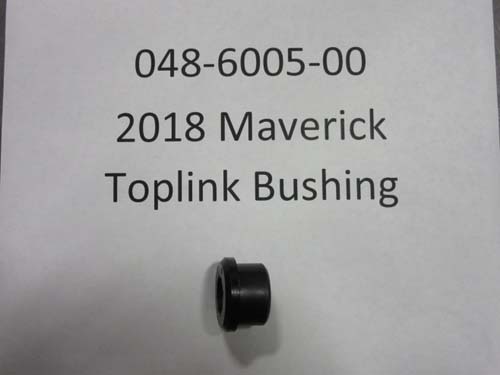

176.3 048-6005-00 048-6005-00 - Toplink Bushing (See Models Used On For Details)
$32.09

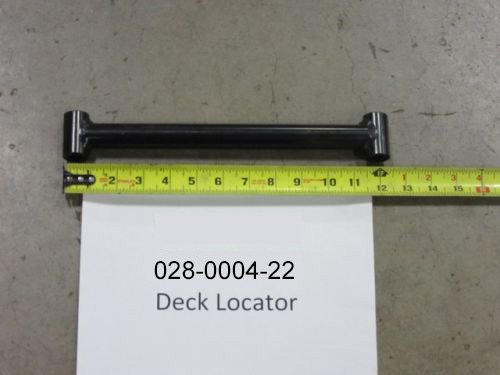

176 028-0004-22 028-0004-22 - Hybrid Turnbuckle/Deck Locator
$46.84
182 018-2050-00 018-2050-00 - 10mm Damper Ball Stud-Steering Damper, Outlaw Deck Damper
$2.99

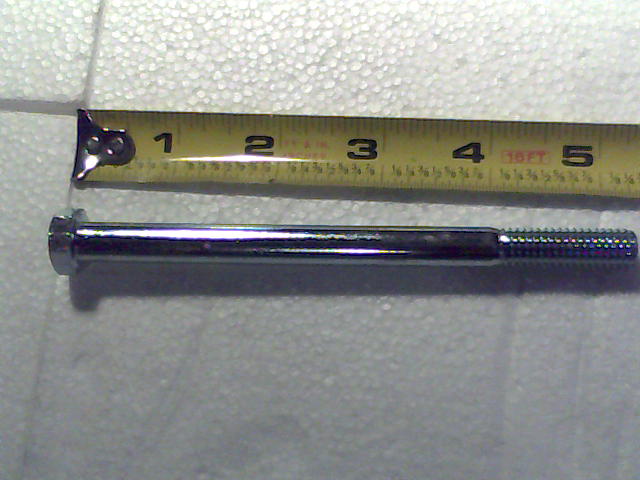

183 018-7055-00 018-7055-00 - 3/8-16 x 5 Hex Bolt -
$2.99
184 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
