2023 Walk Behind - Engine - Kawasaki FS600

2023 Walk Behind - Engine - Kawasaki FS600

The 2023 Walk Behind Engine - Kawasaki FS600 provides powerful performance for your mower, delivering consistent and efficient operation. If your engine needs maintenance or replacement parts, it’s crucial to get the right components to ensure optimal functionality. Bad Boy Mower Part diagrams can help you find the exact parts needed for the Kawasaki FS600 engine, including air filters, spark plugs, carburetors, and fuel systems. At BadBoyMowerParts.com, we offer a full selection of Bad Boy Mower Parts to keep your Kawasaki FS600 engine running smoothly. Our Bad Boy Lawn Mower Parts are designed for longevity and reliability. Shop Bad Boy Parts Online and take advantage of Free Shipping On Orders Over $100, ensuring you get the parts you need delivered straight to your door.

Bad Boy Mower Parts Lookup

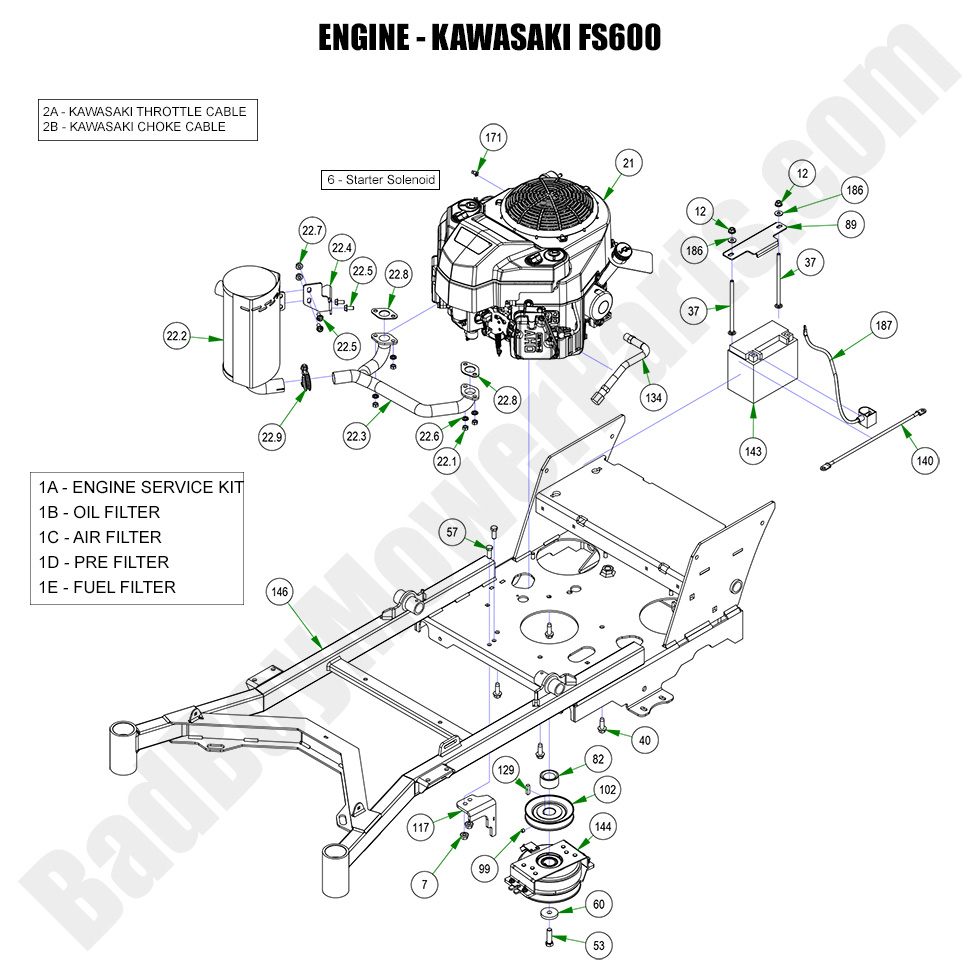

2023 Walk Behind - Engine - Kawasaki FS600
  Position Number SKU Product Title Price
1A 063-2000-01 063-2000-01 - Kawasaki FR & FS Service Kit
$88.25
1B 063-2096-00 063-2096-00 - Oil Filter for Kawasaki FR/FS/FX691/FX730/FX751
$28.88
1C 063-2097-00 063-2097-00 - 22-26 Kaw Air Filter FR Engine
$25.67
1D 063-2098-00 063-2098-00 - Kawasaki Pre Cleaner for 063-2097-00 Filter
$8.24
1E 063-6000-00 063-6000-00 - Universal Inline Fuel Filter
$14.19
2A 055-8020-00 055-8020-00 - Throttle Cable-53" (See Models Used On For Details)
$38.97
2B 054-8017-00 054-8017-00 - 62" Choke Cable (See Models Used On - Engine Diagrams To Verify This Fits your Mower)
$25.80
6 108-0001-00 108-0001-00 - Solenoid
$29.41
7 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
12 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
21 015-0087-00 015-0087-00 - Kawasaki 18.5HP FS600 Electric Start
$3099.00
22.1 013-0075-00 013-0075-00 - M8 - 1.25 Zinc Nut
$3.29
22.2 015-0543-01 015-0543-01 - Exhaust Only for 2018-2022 Kawasaki Walk Behind, 2024 Revolt SD & Raider
$106.99
22.3 015-0543-02 015-0543-02 - Exhaust Pipe for 2018-2022 Kawasaki Walk Behind, 2024 Revolt SD & Raider
$64.19
22.4 015-0543-03 015-0543-03 - Exhaust Bracket for 2018-2022 Kawasaki Walk Behind
$10.99
22.5 015-0543-04 015-0543-04 - Exhaust Flanged Bolt (See Models Used On For Details)
$2.99
22.6 015-0543-05 015-0543-05 - Exhaust Washer Spring for Kawasaki (See Models Used On For Details)
$2.99
22.8 015-0543-07 015-0543-07 - Exhaust Gasket for 2018-2024 Kawasaki Walk Behind
$3.29
22.9 015-0543-08 015-0543-08 - Exhaust Band for 2018-2022 Kawasaki Walk Behind
$13.90
37 018-0056-00 018-0056-00 - 5/16x6 Carriage Bolt
$2.99
40 018-1075-00 018-1075-00 - 3/8 x 1 1/8 Engine Mounting Bolt
$2.99
53 018-5450-21 018-5450-21 - 7/16-20 x 1.5" Hex bolt GR 8 w/ Patch
$2.99
57 018-6049-00 018-6049-00 - 3/8-16 X 1 Hex Bolts Zinc
$2.99
60 019-0010-00 019-0010-00 - 7/16 x 1-5/8 OD x 1/4 Thick Custom AISI 1018 CF ZC
$5.93
82 025-5032-00 025-5032-00 - 1.130 ID X 1.75 OD X 1" Countersunk Zinc Spacer
$12.83
89 026-0098-00 026-0098-00 - Battery Hold Down Plate
$17.02
99 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
102 033-5034-00 033-5034-00 - 4 3/4 Motor Pulley - DB74-601 Comes with set screw only. Keyway IS NOT included. (See Models Used On For Details)
$35.48
129 042-6030-00 042-6030-00 - 1/4" x 1" Square Key
$4.81
134 051-5408-00 051-5408-00 16" Kawasaki Oil Drain
$42.79
140 064-5301-00 064-5301-00 - 12" Red Battery Cable
$17.16
144 070-0056-00 070-0056-00 - PTO Clutch (See Models Used On For Details)
$364.84
186 019-7040-00 019-7040-00 - 1/4 USS Flat Washer Zinc
$2.99
187 064-0030-00 064-0030-00 - 24 inch Black Battery Cable
$18.72
