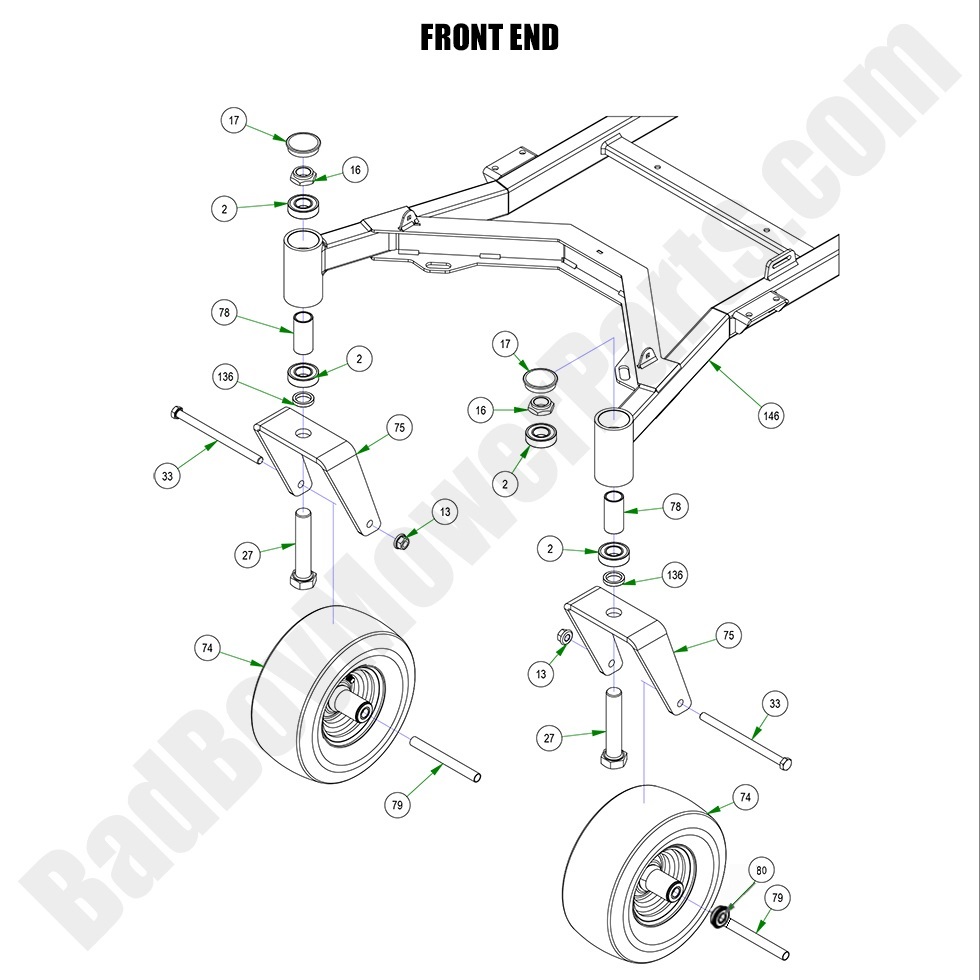

2023 Walk Behind - Front End

2023 Walk Behind - Front End

The 2023 Walk Behind Front End is responsible for the steering and maneuverability of your mower. Components like the front axle, caster wheels, and linkages work together to ensure smooth operation. If any part of the front end becomes damaged or worn, it may affect your ability to control the mower properly. Bad Boy Mower Part diagrams are essential for identifying the necessary replacement parts for the front end. At BadBoyMowerParts.com, we offer a range of Bad Boy Mower Parts for the front end of your Walk Behind mower, including wheels, axles, and steering components. Our Bad Boy Lawn Mower Parts are designed to keep your mower performing well for years to come. Shop Bad Boy Parts Online and take advantage of Free Shipping On Orders Over $100 to get the parts you need with no extra shipping costs.

Bad Boy Mower Parts Lookup

2023 Walk Behind - Front End
  Position Number SKU Product Title Price
2 010-1050-00 010-1050-00 - Front Fork Caster Bearing (See Models Used On For Details)
$18.39
13 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
16 013-9004-00 013-9004-00 - 1" Nylock Nut 1/2 Nut - Fine Thread
$3.62
17 014-2025-00 014-2025-00 - Caster Bearing Cover (See Models Used On For Details)
$2.99
27 018-0005-00 018-0005-00 - 1-14 X 5 BOLT GR 8 Zinc
$7.69
33 018-0035-00 018-0035-00 - 1/2-13 x 7 1/2 Hex Bolt
$4.83
74 022-8049-22 022-8049-22 - 11x6.00-5 Front Assembly - Black Wheel
$99.39
75 023-0002-00 023-0002-00 - 2017-2025 Walkbehind & MZ Front Fork
$31.23
78 025-0003-00 025-0003-00 - Front Bearing Spacer
$14.04
79 025-0008-00 025-0008-00 - Front Wheel Spanner - MZ
$15.60
80 022-7009-00 022-7009-00 - 1 3/8" Small Bore Bearing-Hoosier
$13.36
136 058-1000-00 058-1000-00 - MZ Bar Stop
$6.41
