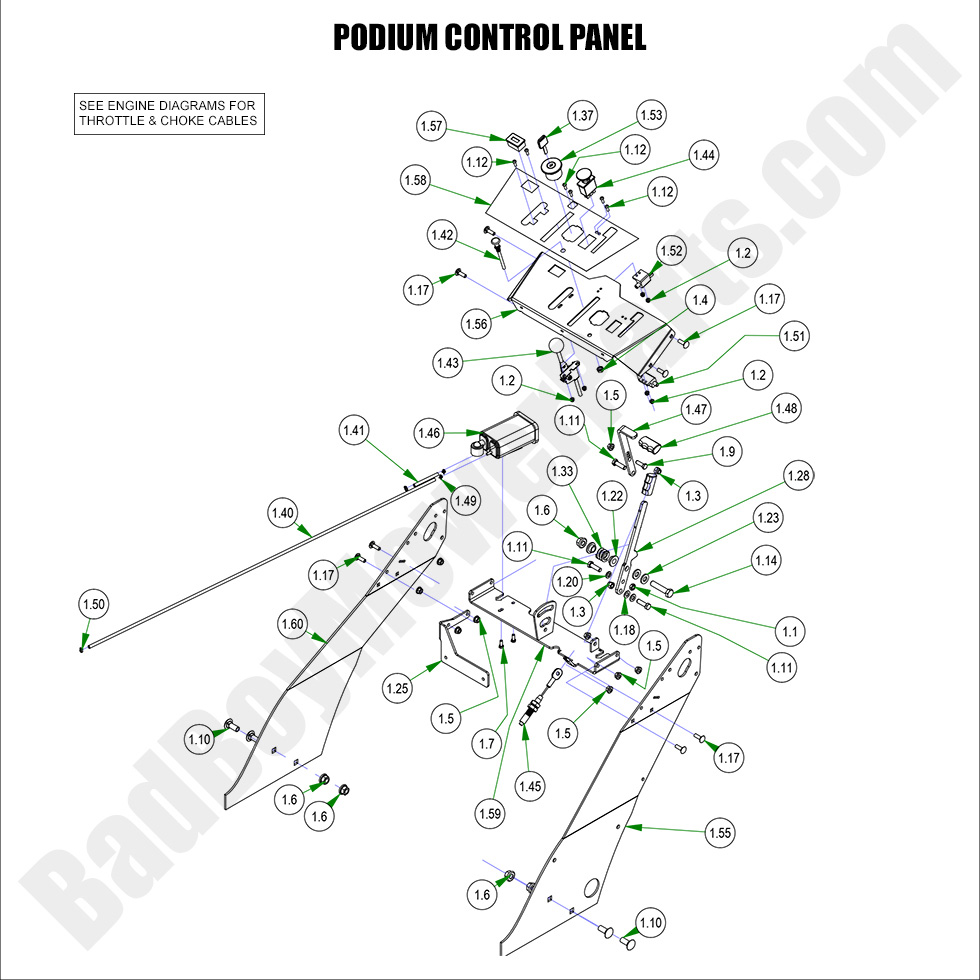

2023 Walk Behind - Podium Control Panel

2023 Walk Behind - Podium Control Panel

The 2023 Walk Behind Podium Control Panel is the central hub for controlling your mower’s various functions, such as speed and engine settings. The control panel houses the switches, levers, and indicators necessary to operate the mower effectively. If the control panel becomes damaged or malfunctioning, it’s important to replace it to maintain proper operation. Bad Boy Mower Part diagrams provide a detailed breakdown of the control panel components, so you can find the parts you need quickly. At BadBoyMowerParts.com, we offer a wide selection of Bad Boy Mower Parts for the podium control panel, including switches, knobs, and wiring. Our Bad Boy Lawn Mower Parts are built for durability and high performance. When you shop Bad Boy Parts Online, you’ll get the right parts for your control panel, and enjoy Free Shipping On Orders Over $100.

Bad Boy Mower Parts Lookup

2023 Walk Behind - Podium Control Panel
  Position Number SKU Product Title Price
1.1 013-0012-00 013-0012-00 - 3/8-16 Centerlock Half Nut
$3.29
1.2 013-5019-00 013-5019-00 - 10-24 Nylon Insert Locknut Zinc
$2.99
1.3 013-5041-00 013-5041-00 - 3/8-16 Nylon Insert Locknut Zinc
$2.99
1.4 013-6051-00 013-6051-00 - 3/8-24 Hex Jam Nut Zinc
$2.99
1.5 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
1.5 072-8073-00 072-8073-00 - 3/16" Vinyl Hose Clamp
$2.99
1.6 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
1.7 018-0024-00 018-0024-00 - M6-1.0 X 16MM HEX BOLT
$2.99
1.9 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
1.10 018-3003-00 018-3003-00 - 1/2 x 1 1/4 Carriage Bolt
$2.99
1.11 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 Hex Bolt
$2.99
1.12 018-5200-00 018-5200-00 - 10-24 X 5/8 BS C/S 18-8 SS
$2.99
1.14 018-6037-00 018-6037-00 - 1/2-13 X 2-1/4 Hex Bolt
$2.99
1.17 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
1.18 019-2003-00 019-2003-00 - .390 x .750 x .062 Nylon Washer
$2.99
1.20 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
1.22 019-8027-00 019-8027-00 -.515 ID Plastic Shoulder Washer
$2.99
1.23 019-8054-00 019-8054-00 -.505 ID X 1 OD X.128 THK Flat Washer Nylon
$2.99
1.28 031-0036-00 031-0036-00 - Walk Behind Speed Control Lever
$10.99
1.33 034-8025-00 034-8025-00 - Drive Lever Housing Spring
$4.07
1.37 042-9000-00 042-9000-00 - Ignition Key
$4.06
1.40 051-2023-02 051-2023-02 - 44" x 3/16" Black Hose
$12.48
1.41 051-2027-00 051-2027-00 - Clear 3/16" EPA Air Line (Priced Per Foot)
$2.99
1.44 056-8058-00 056-8058-00 - PTO Engager-Switch for Blades
$34.29
1.45 064-3000-00 064-3000-00 - 44" Brake Cable
$31.22
1.46 067-0015-00 067-0015-00 - Carbon Canister RY320CC
$46.78
1.47 069-2020-00 069-2020-00 - Walk Behind Brake Handle
$8.79
1.48 069-7000-00 069-7000-00 - Rubber Brake Grip
$6.41
1.49 072-0002-00 072-0002-00 - 5.5 mm Vinyl Hose Clamp
$2.99
1.51 077-0001-00 077-0001-00 - 2017-2025 Walk Behind-Safety Switch Brake
$23.41
1.52 077-0002-00 077-0002-00 - Safety Switch (See Models Used On For Detail)
$23.41
1.53 077-8076-00 077-8076-00 - 3-Position Ignition Switch (key not included)
$21.39
1.57 083-4013-00 083-4013-00 - Tachometer-N211-0100-1003
$74.89
1.58 091-4055-00 091-4055-00 2020-2024 Walkbehind Control Panel Decal
$13.90
1.59 201-1171-00 201-1171-00 - 2020 Walk Behind Cross Support--Orange No Longer Available
Obsolete.
