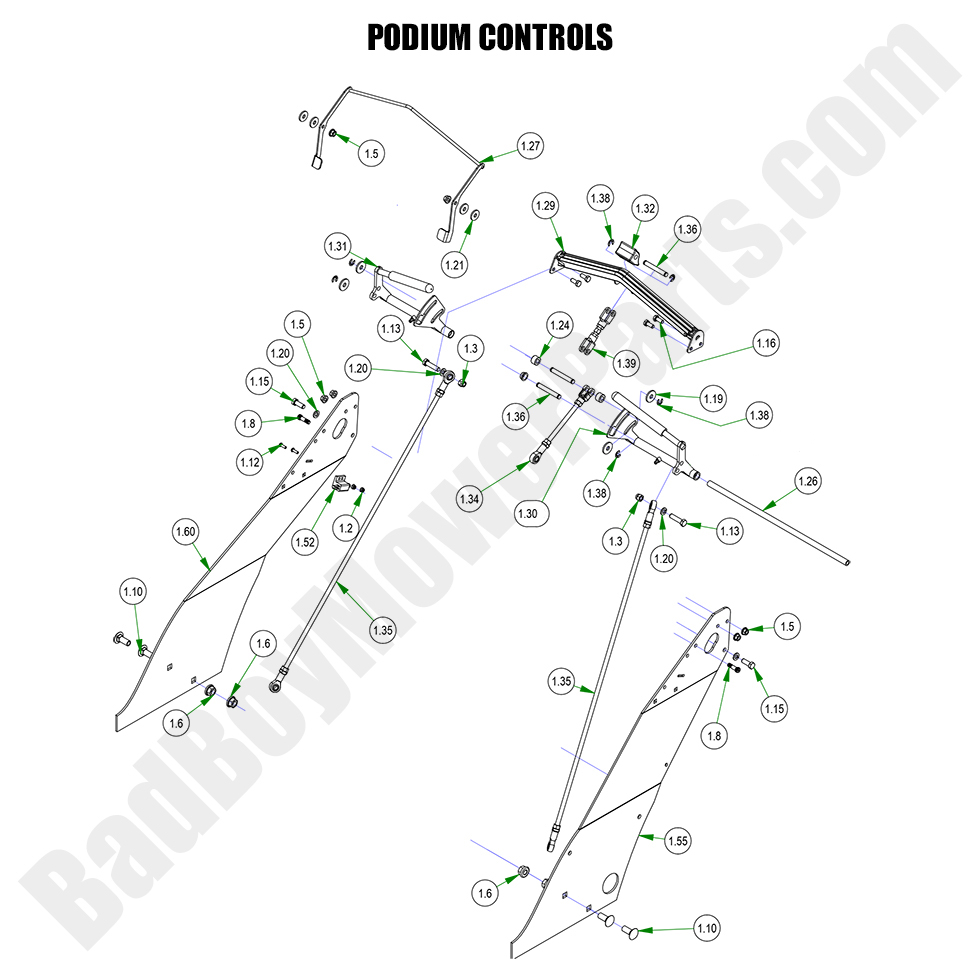

2023 Walk Behind - Podium Controls

2023 Walk Behind - Podium Controls

The 2023 Walk Behind Podium Controls are a vital component for ensuring the operator has full control over the mower's speed and direction. These controls are typically found on the podium or control panel, and they allow the user to easily adjust the settings to meet specific mowing needs. If the controls become worn or unresponsive, they should be replaced to maintain proper mower operation. Bad Boy Mower Part diagrams are invaluable for locating the exact controls needed for replacement. At BadBoyMowerParts.com, we offer a wide selection of Bad Boy Mower Parts, including podium controls, levers, and switches. Our Bad Boy Lawn Mower Parts are built to provide long-lasting performance and precision control. Shop Bad Boy Parts Online for quick access to the components you need, and enjoy Free Shipping On Orders Over $100, making your replacement process both simple and affordable

Bad Boy Mower Parts Lookup

2023 Walk Behind - Podium Controls
  Position Number SKU Product Title Price
1.2 013-5019-00 013-5019-00 - 10-24 Nylon Insert Locknut Zinc
$2.99
1.2 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
1.3 013-5041-00 013-5041-00 - 3/8-16 Nylon Insert Locknut Zinc
$2.99
1.5 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
1.6 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
1.8 018-0076-00 018-0076-00 - 18-8 Stainless Steel Sholder Screw
$23.53
1.10 018-3003-00 018-3003-00 - 1/2 x 1 1/4 Carriage Bolt
$2.99
1.12 018-5200-00 018-5200-00 - 10-24 X 5/8 BS C/S 18-8 SS
$2.99
1.13 018-6012-00 018-6012-00 - 3/8 x 1 1/2 Bolt
$2.99
1.15 018-6049-00 018-6049-00 - 3/8-16 X 1 Hex Bolts Zinc
$2.99
1.16 018-8063-00 018-8063-00 - 5/16-18 X 3/4 Hex Bolt
$2.99
1.19 019-2073-00 019-2073-00 -.390 ID Plastic Washer
$2.99
1.21 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
1.24 025-2025-00 025-2025-00 - MZ Tank Spacer
$2.99
1.26 028-0009-00 028-0009-00 - Walk Behind & Raider Control Pivot Rod
$31.17
1.27 028-0043-00 028-0043-00 - 2020 Walk-Behind Presence-Weldment
$21.39
1.29 031-0039-70 031-0039-70 - 2020-2022 Walkbehind Overmolded Bolt on Handle
$64.19
1.30 031-0042-00 031-0042-00 - Walk-Behind Control Lever Assy-Left (See Models Used On For Detail)
$42.58
1.31 031-0043-00 031-0043-00 - Walk-Behind & Raider Control Lever Assy-Right
$42.58
1.32 031-0047-00 031-0047-00 - Walk-Behind Neutral Lever
$32.09
1.34 035-0002-98 035-0002-98 - 2017-2024 Walk Behind Speed Control Rod Assembly
$38.47
1.35 035-0007-98 035-0007-98 - Walk-Behind Push Rod Assembly
$42.79
1.36 035-0008-00 035-0008-00 - Walk-Behind Control Pin
$32.09
1.38 044-2018-00 044-2018-00 - 3/8 E Clip
$2.99
1.39 047-9000-00 047-9000-00 - Adjustable Yoke Male/Female (See Models Used On For Details)
$14.97
1.52 077-0002-00 077-0002-00 - Safety Switch (See Models Used On For Detail)
$23.41
