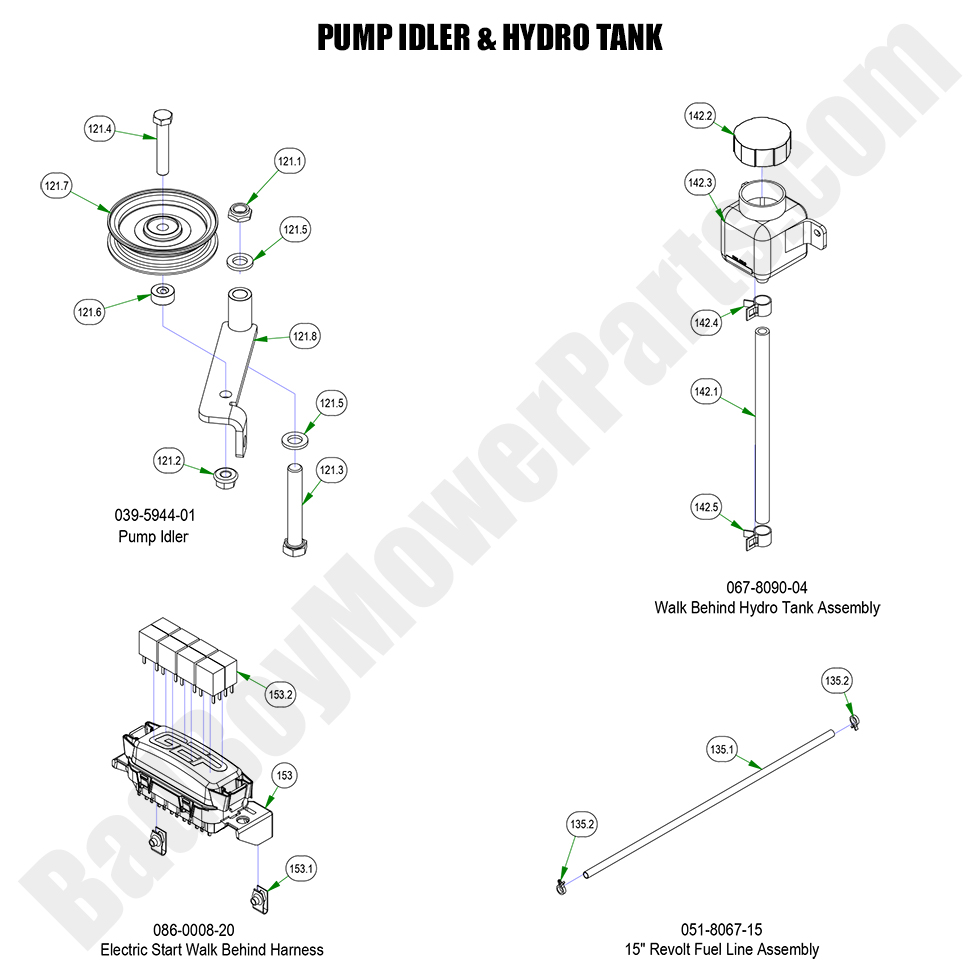

2023 Walk Behind - Pump Idler & Hydro Tank

2023 Walk Behind - Pump Idler & Hydro Tank

The 2023 Walk Behind Pump Idler & Hydro Tank are essential components for the hydraulic system of your mower, responsible for controlling the flow of fluid and maintaining the power needed for efficient operation. The pump idler ensures the proper tension of the hydrostatic drive belt, while the hydro tank stores the fluid that powers the mower's hydraulic system. If any of these components become worn or damaged, it’s important to replace them to maintain smooth operation. Bad Boy Mower Part diagrams can help you identify the correct parts for your Walk Behind model. At BadBoyMowerParts.com, we offer a full selection of Bad Boy Mower Parts, including pump idlers and hydro tanks, to keep your mower running smoothly. Our Bad Boy Lawn Mower Parts are designed to last and ensure optimal performance. Shop Bad Boy Parts Online and enjoy Free Shipping On Orders Over $100.

Bad Boy Mower Parts Lookup

2023 Walk Behind - Pump Idler & Hydro Tank
  Position Number SKU Product Title Price
121.1 013-5301-00 013-5301-00 - 5/8-11 Nylon Insert Jam Locknut Zinc
$2.99
121.2 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
121.3 018-5311-00 018-5311-00 - 5/8-11 X 4" Hex Bolts Zinc
$4.06
121.4 018-6036-00 018-6036-00 - 1/2-13 X 2-3/4 Bolt Zinc
$2.99
121.5 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
121.6 025-7036-00 025-7036-00 - 1/2 Set Collar w/set screw
$4.60
121.7 033-6001-00 033-6001-00 - 4 3/4 Idler Pulley (See Models Used On For Details)
$31.22
121.8 039-5944-00 039-5944-00 - Pump Idler Bracket
$42.58
121 039-5944-01 039-5944-01 - Pump Idler Bracket Assy (See Models Used On For Details)
$62.46
135.1 051-8067-00 051-8067-00 - 1/4 Fuel Line Hose (Priced by the Foot)
$6.41
135.2 072-8069-00 072-8069-00 - 1/4 Fuel Line Clamp
$2.99
135 051-8067-15 051-8067-15 - 15" Revolt Fuel Line Assembly
$8.79
142.1 051-8063-00 051-8063-00 - 3/8 Clear Hose PRICED PER FOOT
$2.99
142.2 066-5050-00 066-5050-00 - Hydraulic Tank Cap (See Models Used On For Details)
$15.60
142.3 067-8090-00 067-8090-00 - Hydraulic Expansion Tank (See Models Used On For Details)
$31.22
142.4 072-8065-00 072-8065-00 - 3/8" Hose Clamp - CTB-16-STFS
$2.99
142.5 072-8066-00 072-8066-00 - 1/2" Hose Clamp
$2.99
142 067-8090-04 067-8090-04 - Walk Behind Hydro Tank Assembly No Longer Available
Obsolete.
153.1 013-0054-00 013-0054-00 - 1/4-20 Cage Nut
$2.99
153.2 086-1202-19 086-1202-19 - Relay Terminal
$24.97
153 086-0008-20 086-0008-20 - 2020 Electric Start Walk Behind Harness
$239.99
