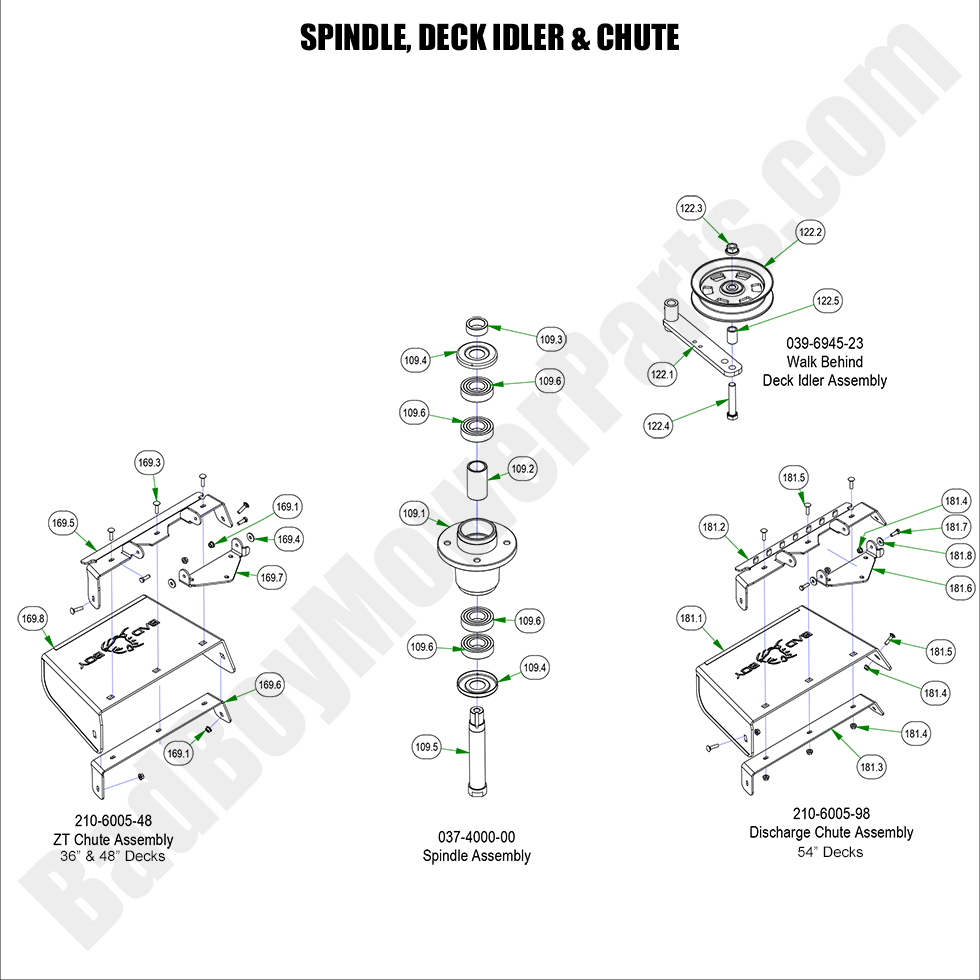

2023 Walk Behind - Spindle, Deck Idler & Chute

2023 Walk Behind - Spindle, Deck Idler & Chute

The 2023 Walk Behind Spindle, Deck Idler & Chute components are crucial to the performance of your mower’s cutting system. The spindle allows the mower blades to rotate smoothly, while the deck idler ensures the belt tension remains consistent for optimal performance. The discharge chute directs grass clippings away from the mower deck, ensuring a clean cut. Over time, these components may wear down, causing your mower to underperform. Bad Boy Mower Part diagrams are helpful for locating the exact parts needed for replacement. At BadBoyMowerParts.com, we offer a complete range of Bad Boy Mower Parts, including spindles, idlers, and chutes. Our Bad Boy Lawn Mower Parts are built for durability, ensuring that your mower continues to perform like new. When you shop Bad Boy Parts Online, you can take advantage of Free Shipping On Orders Over $100 for added savings.

Bad Boy Mower Parts Lookup

2023 Walk Behind - Spindle, Deck Idler & Chute
  Position Number SKU Product Title Price
109.2 037-4002-00 037-4002-00 - Spindle Spacer (See Models Used On For Details)
$7.28
109.3 037-9050-00 037-9050-00 - Collar Spacer - Top of Spindle (See Models Used On For Details)
$7.28
109.4 037-8002-00 037-8002-00 - Dust Cover (Used on 037-4000-00 & 037-6015-50)
$11.76
109.5 037-6026-00 037-6026-00 - Short Spindle Shaft - No Grooved Shaft
$83.77
109.6 037-6023-00 037-6023-00 - Spindle Bearing (See Models Used On For Details) (obsolete)
use part #037-6029-00
$42.58
109 037-4000-00 037-4000-00 - Commercial Spindle Assembly (See Models Used On For Details)
$291.91
122.1 039-6945-00 039-6945-00 - Idler Arm Bracket
$40.53
122.2 033-8050-00 033-8050-00 - 2017-2025 5" Split Idler Pulley-Tensioner Only
$35.48
122.3 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
122.4 018-6036-00 018-6036-00 - 1/2-13 X 2-3/4 Bolt Zinc
$2.99

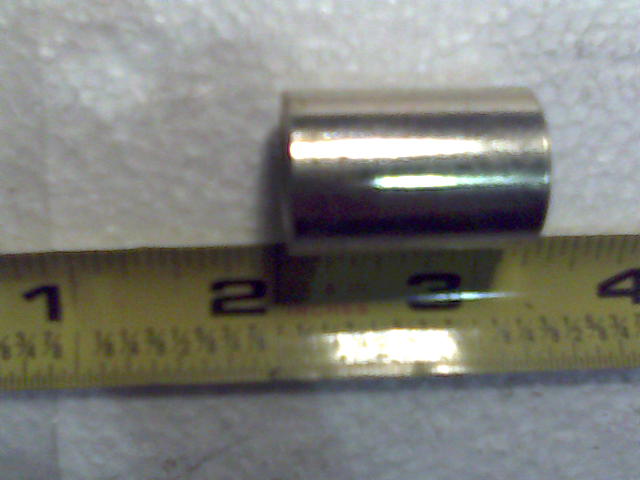

122.5 025-5337-00 025-5337-00 -.502x.750x1.125 Length Spacer
$4.39
122 039-6945-23 039-6945-23 - Deck Idler Assembly
$99.99
169.1 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
169.3 018-4703-00 018-4703-00 - 5/16-18 X 1-1/4 Carriage Bolt
$2.99
169.4 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
169.5 039-4870-00 039-4870-00 - Discharge Top Bracket, Rubber Chute Assembly (See Models Used On For Details)
$42.52
169.6 039-4871-00 039-4871-00 - 48/52 Discharge Lower Bracket Rubber Chute
$32.65
169.7 206-6017-00 206-6017-00 - Discharge Chute Hanger-Deck (See Models Used On For Detail)
$39.03
169.8 210-6005-00 210-6005-00 - Rubber Discharge Chute (See Models Used On For Detail)
$59.91
169 210-6005-48 210-6005-48 - Chute Assembly (See Models Used On For Detail)
$169.99
181.2 039-4864-00 039-4864-00 - Discharge Chute Upper Hanger Plate (See Models Used On For Detail)
$42.52
181.3 039-4863-00 039-4863-00 - Discharge Lower Bracket Rubber Chute (See Models Used On For Detail)
$32.65
181.7 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
181 210-6005-98 210-6005-98 - Chute Assembly (See Models Used On For Detail)
$149.99
