2023 Walk Behind - Upper Frame

2023 Walk Behind - Upper Frame

The 2023 Walk Behind Upper Frame serves as the core structure for your mower, supporting components like the engine, handlebars, and control panels. A strong and well-maintained frame is vital for the mower’s durability and stability. If the upper frame becomes damaged or shows signs of wear, it can affect the overall performance of your mower. Bad Boy Mower Part diagrams can help you identify the correct frame parts needed for your mower. At BadBoyMowerParts.com, we offer a wide selection of Bad Boy Mower Parts for the upper frame, ensuring you can find the right replacement parts. Our Bad Boy Lawn Mower Parts are designed for durability and are built to withstand the rigors of regular use. Shop Bad Boy Parts Online for a simple and efficient shopping experience, and enjoy Free Shipping On Orders Over $100

Bad Boy Mower Parts Lookup

2023 Walk Behind - Upper Frame
  Position Number SKU Product Title Price
1 079-0036-23 079-0036-23 - 2023 Walk Behind Podium Assembly
$519.99
3 013-0004-00 013-0004-00 - Acorn Nut-Pulley Cover
$3.29
4 013-2050-00 013-2050-00 - 1/4-20 Nylon Insert Flange Nut
$2.99
10 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
13 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
18 014-3580-00 014-3580-00 - Walk Behind Bolt On Fan Cover
$10.99

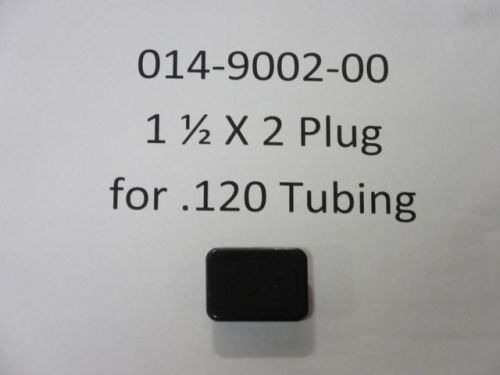

20 014-9002-00 014-9002-00 - 1 1/2 X 2 Plug For .120 Tubing
$2.99
31 018-0024-00 018-0024-00 - M6-1.0 X 16MM HEX BOLT
$2.99
34 018-0043-00 018-0043-00 - 2 1/2 X 1/2 Carriage Bolt
$3.29
42 018-2004-50 018-2004-50 - All Thread (See Models Used On For Details)
$12.94
48 018-4010-00 018-4010-00 - 1/2-13 Nylon Insert Jam Locknut Zinc Orange Nylon
$2.99
67 019-6050-00 019-6050-00 -.360 ID Black Plastic Washer
$2.99
68 019-8040-00 019-8040-00 - 1/4 x 3/4 Carriage Bolt
$2.99
98 029-4011-00 029-4011-00 2023 Floorboard Rubber Bumpers
$2.99
107 034-2009-00 034-2009-00 - Deck/Pump Idler Spring (See Models Used On For Detail)
$18.18

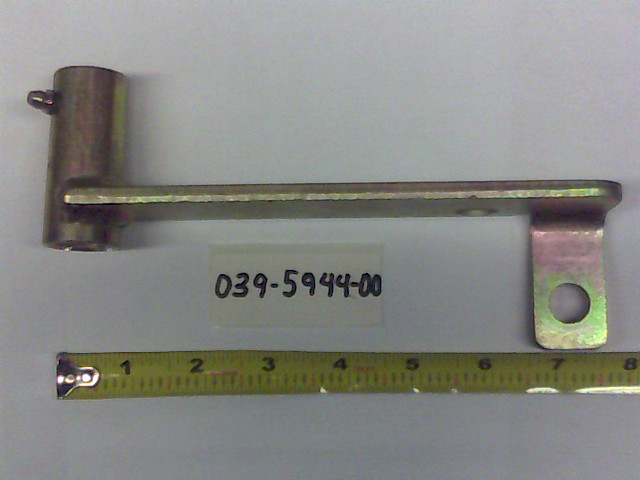

121 039-5944-00 039-5944-00 - Pump Idler Bracket
$42.58

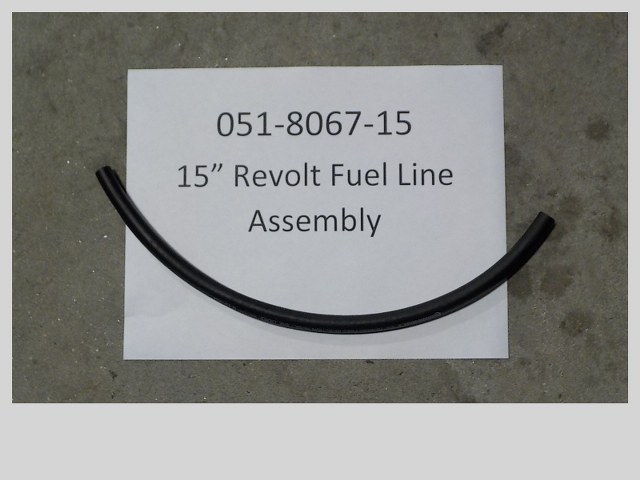

135 051-8067-15 051-8067-15 - 15" Revolt Fuel Line Assembly
$8.79
141.1 066-8083-00 066-8083-00 - 3.5" Tethered Fuel Cap
$23.53

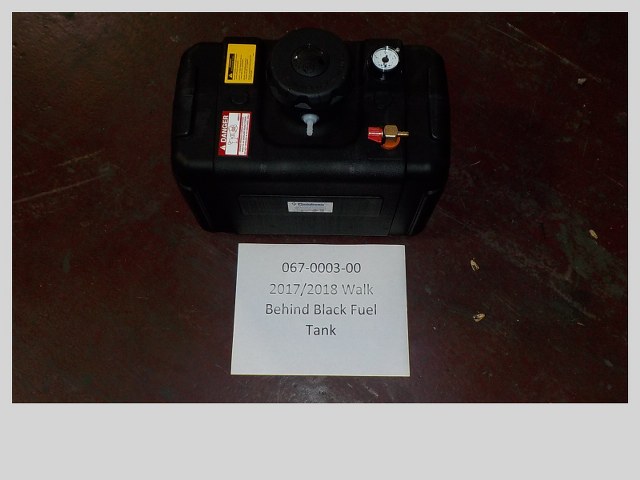

141 067-0003-00 067-0003-00 - 2017-2024 Walk Behind Black Fuel Tank
$300.99
147 072-0050-00 072-0050-00 - Fuel Tank Clamp (See Models Used On For Details)
$11.34
148 079-0040-00 079-0040-00 - V2 Floorboard--Black
$85.59
153 086-0008-20 086-0008-20 - 2020 Electric Start Walk Behind Harness
$239.99
156 091-0412-18 091-0412-18 - 2018-2022 Walk Behind 603cc Back Plate Cluste
$17.64
162 091-3150-00 091-3150-00 - Outlaw Warning Decal (See Models Used On For Details)
$10.91
165 091-6068-00 091-6068-00 - Flying Bull Dog Decal-Orange No Longer Available
Obsolete.
