Click Image to Change Diagram
The 2023 Walk Behind Transaxles are integral to the drive system of your mower, converting the engine’s power into movement for the wheels. These transaxles are responsible for driving your mower forward or backward, so if they malfunction, your mower won’t operate efficiently. Regular maintenance and timely replacement of transaxles are essential for optimal performance. Bad Boy Mower Part diagrams can assist you in identifying the correct transaxle parts for your Walk Behind mower. At BadBoyMowerParts.com, we offer a complete range of Bad Boy Mower Parts, including high-quality transaxles designed to fit your mower. Our Bad Boy Lawn Mower Parts ensure long-lasting performance and reliability. When you shop Bad Boy Parts Online, you can quickly find the parts you need, and with Free Shipping On Orders Over $100, you’ll save on delivery costs.
![]() |
Position Number | SKU | Product Title | Price | ||
---|---|---|---|---|---|
1 | 085-4051-00 | 085-4051-00 - Hydro Service Package for 2020 and Older Models with Expansion Tanks - ZT2800, ZT3100, ZT3200, and all ZT3400 |
$104.74
|
||
132.1 | 034-9080-00 | 034-9080-00 - Gold Transaxle Spring |
$14.89
|
||
132.2 | 050-2070-00 | 050-2070-00 - 2020 -2024 ZT Avenger/ ZT/Maverick Transaxle Fan/Pulley Kit |
$85.17
|
||
132.3.1 | 050-2012-00 | 050-2012-00 - Transaxle Wheel Studs/ Drum Brake Studs |
$5.61
|
||
132.3 | 050-2076-00 | 050-2076-00 - Transaxle Wheel Hub (See Models Used On For Details) |
$90.56
|
||
132.4 | 050-8010-00 | 050-8010-00 - ZT/Maverick Transaxle Seal Kit (ZT-2800) |
$109.46
|
||
132.5 | 063-1050-00 | 063-1050-00 - ZT Hydraulic Filter |
$22.71
|
||

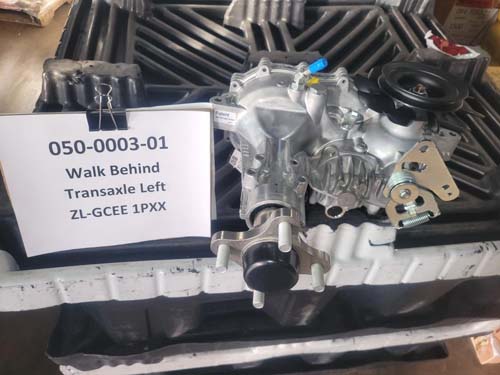

132 | 050-0003-01 | 050-0003-01 - Walk Behind Transaxle Left 3100 |
$699.99
|
||

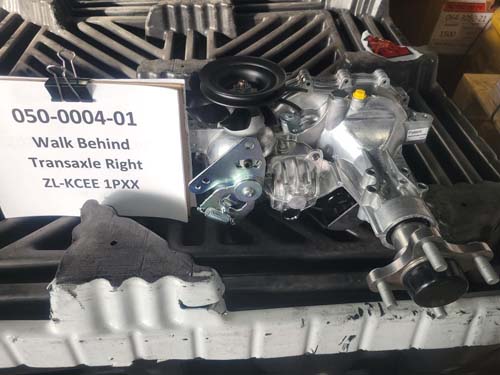

133 | 050-0004-01 | 050-0004-01 - Walk Behind Transaxle Right |
$699.99
|
