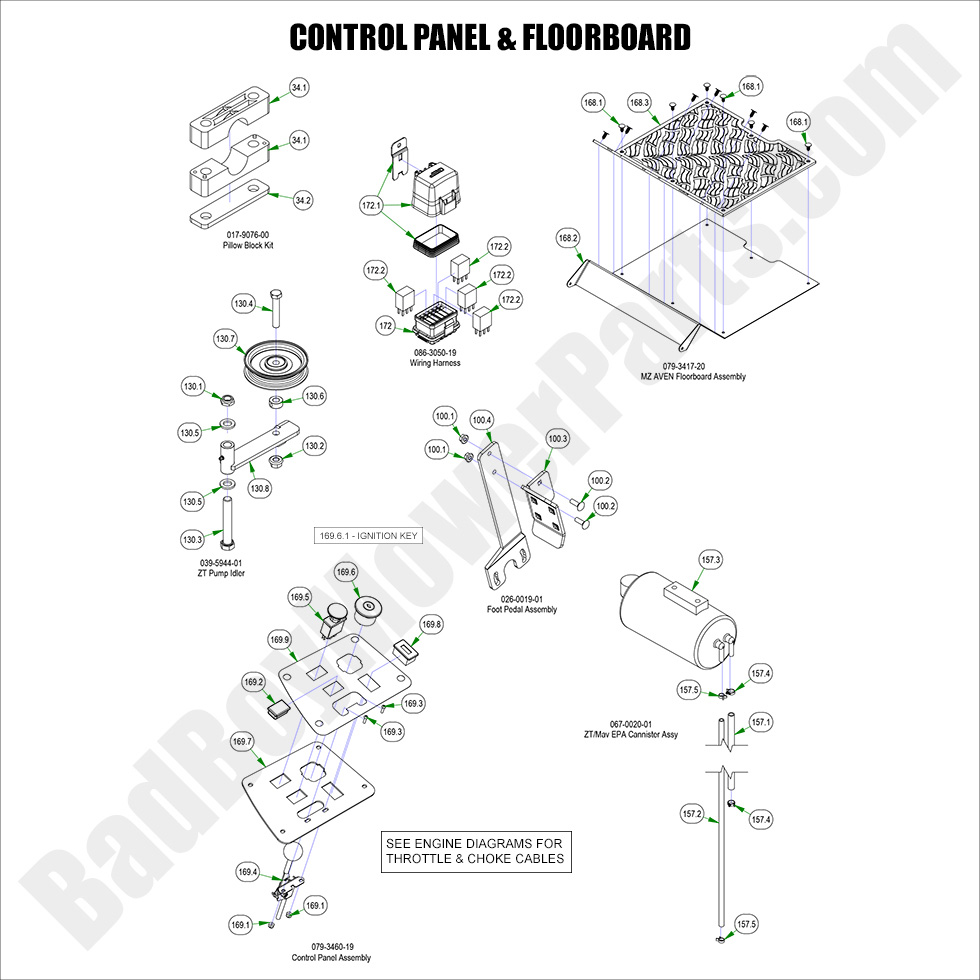

2023 ZT Avenger - Control Panel & Floorboard

2023 ZT Avenger - Control Panel & Floorboard

The 2023 ZT Avenger Control Panel & Floorboard are essential for comfortable and efficient operation of the mower. The control panel includes all of the levers, buttons, and switches necessary to adjust the mower’s speed, direction, and cutting height, while the floorboard provides a stable, non-slip surface for the operator. If any of these components become damaged or worn, it’s important to replace them to ensure safe and smooth operation. Bad Boy Mower Part diagrams are helpful for identifying the parts you need for the control panel and floorboard. At BadBoyMowerParts.com, we offer a full selection of Bad Boy Mower Parts, including control panels and floorboards, for your ZT Avenger. Our Bad Boy Lawn Mower Parts are built to last, providing long-term durability and reliability. Shop Bad Boy Parts Online and enjoy Free Shipping On Orders Over $100 for added value.

Bad Boy Mower Parts Lookup

2023 ZT Avenger - Control Panel & Floorboard
  Position Number SKU Product Title Price
34.1 017-9077-00 017-9077-00 - Pillow Block-Male
$21.28
34.2 017-9079-00 017-9079-00 - Pillow Block-Metal Plate
$21.28
34 017-9076-00 017-9076-00 - Pillow Block Assembly
$23.41
100.1 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
100.2 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
100.3 026-0019-00 026-0019-00 - Shallow Foot Pedal (See Models Used On For Detail)
$31.22
100.4 031-0500-00 031-0500-00 - 2017-2024 Deck Pedal Lever (See Models Used On For Detail)
$31.22
100 026-0019-01 026-0019-01 - Foot Pedal Assembly (See Models Used On For Details)
$93.69
130.1 013-5301-00 013-5301-00 - 5/8-11 Nylon Insert Jam Locknut Zinc
$2.99
130.2 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
130.3 018-5311-00 018-5311-00 - 5/8-11 X 4" Hex Bolts Zinc
$4.06
130.4 018-6036-00 018-6036-00 - 1/2-13 X 2-3/4 Bolt Zinc
$2.99
130.5 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
130.6 025-7036-00 025-7036-00 - 1/2 Set Collar w/set screw
$4.60
130.7 033-6001-00 033-6001-00 - 4 3/4 Idler Pulley (See Models Used On For Details)
$31.22
130.8 039-5944-00 039-5944-00 - Pump Idler Bracket
$42.58
130 039-5944-01 039-5944-01 - Pump Idler Bracket Assy (See Models Used On For Details)
$62.46
157.1 051-2020-01 051-2020-01 - 1/4 Vinyl 46" EPA Line (See Models Used On For Details)
$12.48
157.2 051-2025-02 051-2025-02 - 3/16 Vinyl 55" EPA Line
$12.48
157.3 067-0020-00 067-0020-00 - Carbon Canister
$62.40
157.4 072-8070-00 072-8070-00 - Tank Hose Clamp 3/16 (See Models Used On For Detail)
$2.99
157.5 072-8073-00 072-8073-00 - 3/16" Vinyl Hose Clamp
$2.99
157 067-0020-01 067-0020-01 - 2019-2025 ZT/Maverick EPA Cannister Assy, Also Fits 2019-2021 Compact Outlaw
$85.59
168.1 040-6080-00 040-6080-00 - Ratchet Fastener - Floorboard
$2.99
168.2 079-3417-00 079-3417-00 - 2017-2024 Floorboard (See Models Used On For Details)
$145.95
168.3 081-4001-00 081-4001-00 - 2021-2024 Floor Mat W/ Reaper Tread
$53.49
169.1 013-5019-00 013-5019-00 - 10-24 Nylon Insert Locknut Zinc
$2.99
169.2 018-1040-00 018-1040-00 - Light Plug
$2.99
169.3 018-5200-00 018-5200-00 - 10-24 X 5/8 BS C/S 18-8 SS
$2.99
169.5 056-8058-00 056-8058-00 - PTO Engager-Switch for Blades
$34.29
169.6.1 042-9000-00 042-9000-00 - Ignition Key
$4.06
169.6 077-8076-00 077-8076-00 - 3-Position Ignition Switch (key not included)
$21.39
169.7 079-3461-00 079-3461-00 - Control Panel--Orange
$23.53
169.8 083-4013-00 083-4013-00 - Tachometer-N211-0100-1003
$74.89
169.9 091-4072-00 091-4072-00 - Control Panel Decal
$9.89
169 079-3460-19 079-3460-19 - 2019-2022 ZT/Maverick Control Panel Assy, Also Fits 2019-2021 Compact Outlaw, and 2022 MZ/MZ Magnum
$144.63
172.1 086-1202-01 086-1202-01 - 2019-2024 Relay Cap Kit
$18.45
172.2 086-1202-19 086-1202-19 - Relay Terminal
$24.97
172 086-3050-19 086-3050-19 - 2019-2023 MZ/ZT/Maverick/Compact Outlaw Wiring Harness (obsolete)
use part #086-3600-00
$299.99
