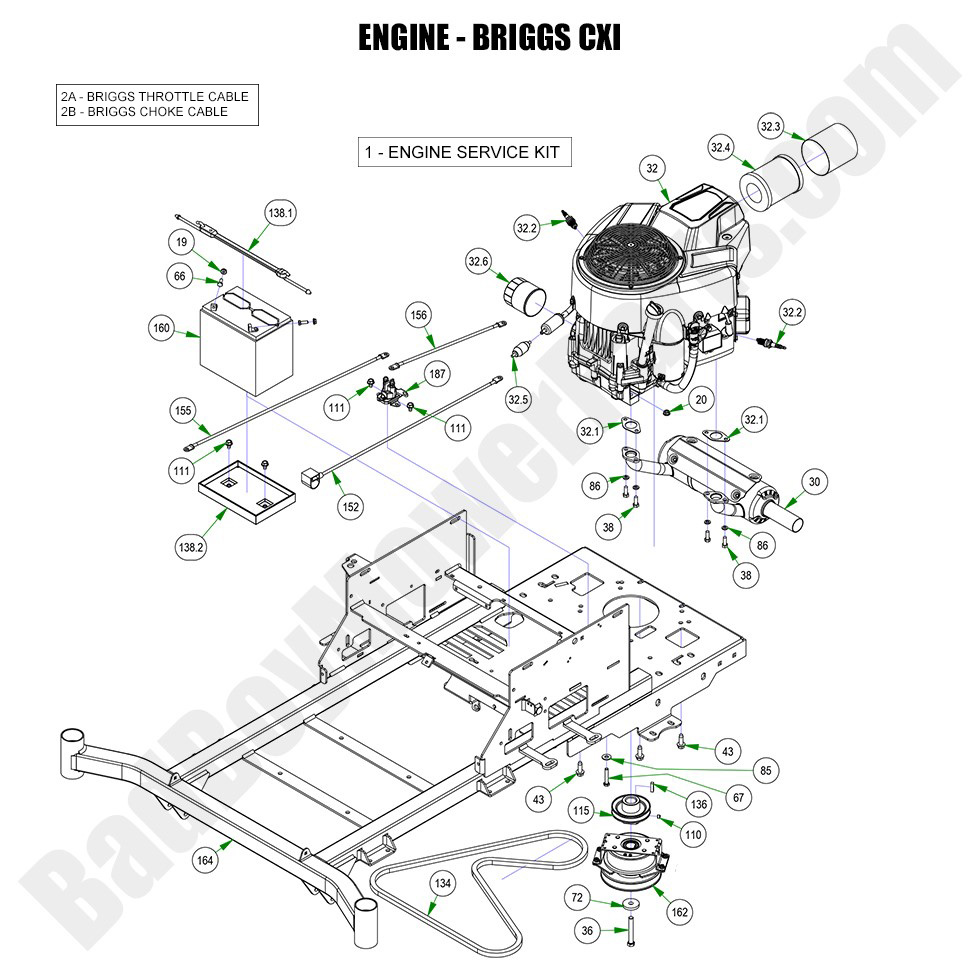

2023 ZT Avenger - Engine - Briggs CXI

2023 ZT Avenger - Engine - Briggs CXI

The 2023 ZT Avenger powered by the Briggs CXI engine deserves only the best replacement parts. At BadBoyMowerParts.com, we offer a comprehensive selection of Bad Boy Mower Parts designed to keep this engine running smoothly. From air filters to spark plugs, we have everything you need to maintain optimal engine performance. With our Bad Boy Mower Part diagrams, you can easily find the right parts for your Briggs CXI engine, ensuring precise repairs. We carry high-quality Bad Boy Lawn Mower Parts to meet all your needs, whether you're doing routine maintenance or making more significant repairs. Shopping for Bad Boy Parts Online is quick and easy, and with Free Shipping On Orders Over $100, you can get all the parts you need at great prices. Trust BadBoyMowerParts.com to keep your 2023 ZT Avenger running like new with our top-notch Briggs CXI engine components.

Bad Boy Mower Parts Lookup

2023 ZT Avenger - Engine - Briggs CXI
  Position Number SKU Product Title Price
1 063-2000-04 063-2000-04 - Briggs 30hp & CXI Engine Service Kit
$92.93
2A 055-8020-00 055-8020-00 - Throttle Cable-53" (See Models Used On For Details)
$38.97
19 013-9001-00 013-9001-00 - 1/4-20 Hex Flange Nuts Zinc w/Serrations
$2.99
20 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
30 015-0057-00 015-0057-00 - 2017-2024 Exhaust 810 Vanguard
$169.99
32.1 015-2709-00 015-2709-00 - Exhaust Gasket (See Models Used On For Detail)
$8.01
32.2 015-8000-00 015-8000-00 - Spark Plug (RC12YC or Equivalent)
$13.90
32.3 063-1000-00 063-1000-00 - Pre-Cleaner for 063-3003-00
$12.83
32.4 063-1005-00 063-1005-00 - Air Filter for Vanguard CXI Engine (obsolete)
use part #063-3003-00
$44.93
32.5 063-6000-00 063-6000-00 - Universal Inline Fuel Filter
$14.19
32.6 063-8018-00 063-8018-00 - Oil Filter
$21.39
32 015-0512-00 015-0512-00 - Vanguard 25hp CXI with out Oil Filter 1" No Longer Available
Obsolete.
36 018-0007-21 018-0007-21 - 7/16-20x3 Hex Bolt GR8 w/Patch
$3.29
38 018-0017-00 018-0017-00 - Vanguard Exhaust Torx Bolt
$5.82
43 018-1075-00 018-1075-00 - 3/8 x 1 1/8 Engine Mounting Bolt
$2.99
66 018-8052-00 018-8052-00 - 1/4-20 X 3/4 Hex Bolt
$2.99
67 018-8059-00 018-8059-00 - 5/16-18x1-3/4 Hex Bolt
$2.99
72 019-0010-00 019-0010-00 - 7/16 x 1-5/8 OD x 1/4 Thick Custom AISI 1018 CF ZC
$5.93
85 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
86 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
110 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
111 030-7044-00 030-7044-00 - 5/16-18 x HWH unslot (F) tcs zinc
$2.99
115 033-2010-00 033-2010-00 - 3 3/4 Motor Pulley (See Models Used On For Details)
$31.22
134 041-6400-00 041-6400-00 - Pump Belt (See Models Used On For Details)
$58.84
136 042-6030-00 042-6030-00 - 1/4" x 1" Square Key
$4.81
138.1 043-8930-00 043-8930-00 2023 - Rubber Battery Hold Down Strap
$21.39
138.2 043-8931-00 043-8931-00 - 2023 Battery Tray Only
$20.32
152 064-0030-00 064-0030-00 - 24 inch Black Battery Cable
$18.72
155 064-5300-00 064-5300-00 - 24" Red Battery Cable
$21.85
156 064-5301-00 064-5301-00 - 12" Red Battery Cable
$17.16
162 070-0055-00 070-0055-00 - PTO Clutch (See Models Used On For Detail)
$279.99
187 108-0001-00 108-0001-00 - Solenoid
$29.41
