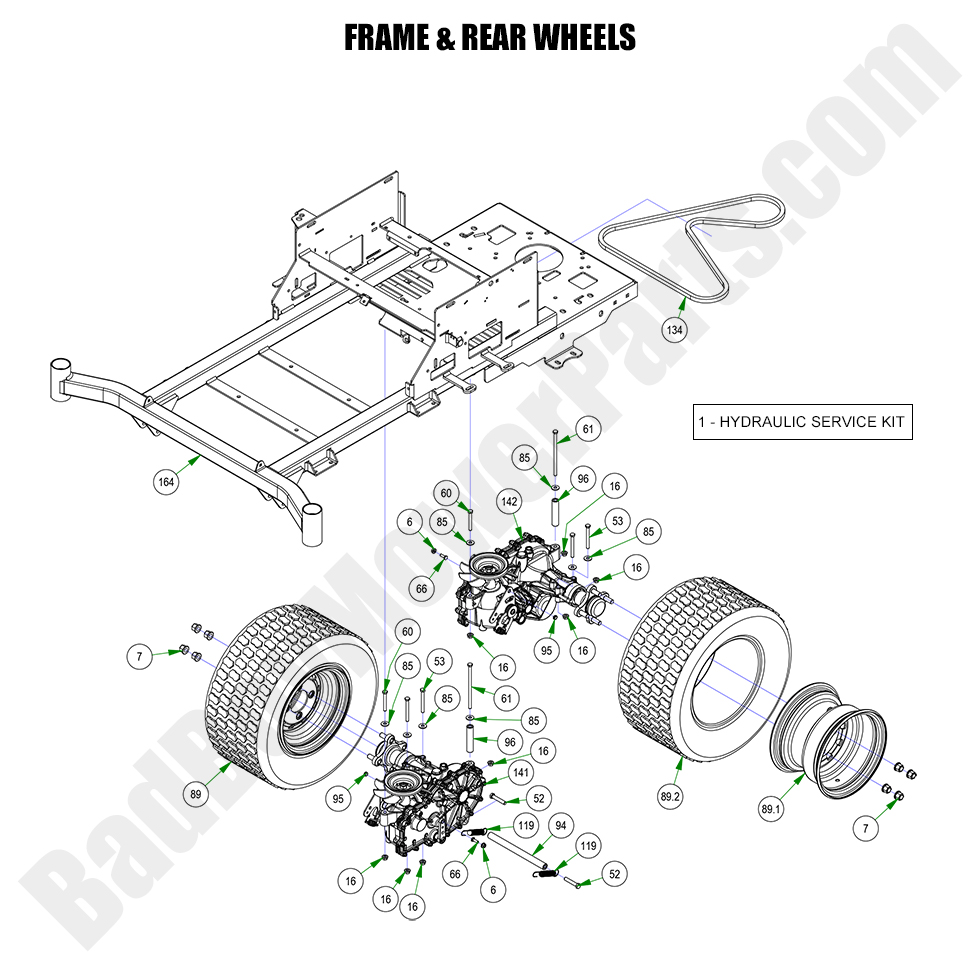

2023 ZT Avenger - Frame & Rear Wheels

2023 ZT Avenger - Frame & Rear Wheels

The frame and rear wheels of your 2023 ZT Avenger are crucial for overall stability and maneuverability. At BadBoyMowerParts.com, we offer high-quality replacement parts designed to keep these components in top shape. Whether you need to replace the frame, wheels, or related hardware, we have a vast selection of Bad Boy Mower Parts tailored specifically to the 2023 ZT Avenger. Our easy-to-use Bad Boy Mower Part diagrams make finding the right part simple and straightforward. We carry durable Bad Boy Lawn Mower Parts that ensure your mower’s frame and rear wheels continue to perform well. Enjoy the convenience of shopping Bad Boy Parts Online and benefit from our Free Shipping On Orders Over $100, making it easy and affordable to maintain your mower’s structural integrity. Keep your mower running smoothly with high-quality frame and rear wheel parts from BadBoyMowerParts.com.

Bad Boy Mower Parts Lookup

2023 ZT Avenger - Frame & Rear Wheels
  Position Number SKU Product Title Price
1 085-4051-01 085-4051-01 - Hydro Service Kit for 2021 & Newer ZT Avenger, ZT Elite & Maverick Models (Without Expansion Tanks)
$125.99
6 013-2050-00 013-2050-00 - 1/4-20 Nylon Insert Flange Nut
$2.99
7 013-3000-00 013-3000-00 - Acorn Lug Nut
$3.29
16 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
52 018-3000-00 018-3000-00 - 3/8-16 X 2 Hex Bolts Zinc
$2.99
53 018-4701-00 018-4701-00 - 5/16-18 X 3 Hex Bolt Zinc
$2.99
60 018-5344-00 018-5344-00 - 5/16 x 2 1/2 Bolt
$2.99
61 018-5355-00 018-5355-00 - 5/16-18 X 6 Hex Bolt Zinc
$2.99
66 018-8052-00 018-8052-00 - 1/4-20 X 3/4 Hex Bolt
$2.99
85 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
89.1 022-0011-00 022-0011-00 - 10 x 8.50 Black Wheel (See Models Used On For Details)
$99.39
89.2 022-0012-00 022-0012-00 - 20x12 x10 4PR TURF TECH TL
$175.99
89 022-0008-00 022-0008-00 - 20x12x10 Rear Tire & Black Wheel Assembly
$295.99
94 025-0017-00 025-0017-00 - Transaxle Spacer (See Models Used On For Detail)
$14.04
95 025-0036-00 025-0036-00 - Drive Arm Transaxle Spacer
$5.49
96 025-0070-00 025-0070-00 - Transaxle Spacer
$6.41
119 034-1026-00 034-1026-00 - Brake Return Spring (See Models Used On For Details)
$14.19
134 041-6400-00 041-6400-00 - Pump Belt (See Models Used On For Details)
$58.84
141 050-5050-02 050-5050-02 - ZT Avenger Right Transaxle (See Models Used On For Details)
$699.99
142 050-5060-02 050-5060-02 - ZT Avenger Left Transaxle (See Models Used On For Details)
$699.99
