2023 ZT Avenger - Fuel Tank & Rear Cover

2023 ZT Avenger - Fuel Tank & Rear Cover

The fuel tank and rear cover are essential components for the 2023 ZT Avenger, providing both fuel storage and protection. At BadBoyMowerParts.com, we offer a variety of Bad Boy Mower Parts to keep these components in top condition. Whether you’re replacing a damaged fuel tank or needing a new rear cover, we have the right parts for the job. Our Bad Boy Mower Part diagrams make it easy to identify the precise parts needed for your repairs or replacements. We stock only the best Bad Boy Lawn Mower Parts to ensure that your mower’s fuel system functions smoothly. By shopping Bad Boy Parts Online, you can easily find and order the parts you need. Don’t forget, we also offer Free Shipping On Orders Over $100, helping you maintain your 2023 ZT Avenger without breaking the bank.

Bad Boy Mower Parts Lookup

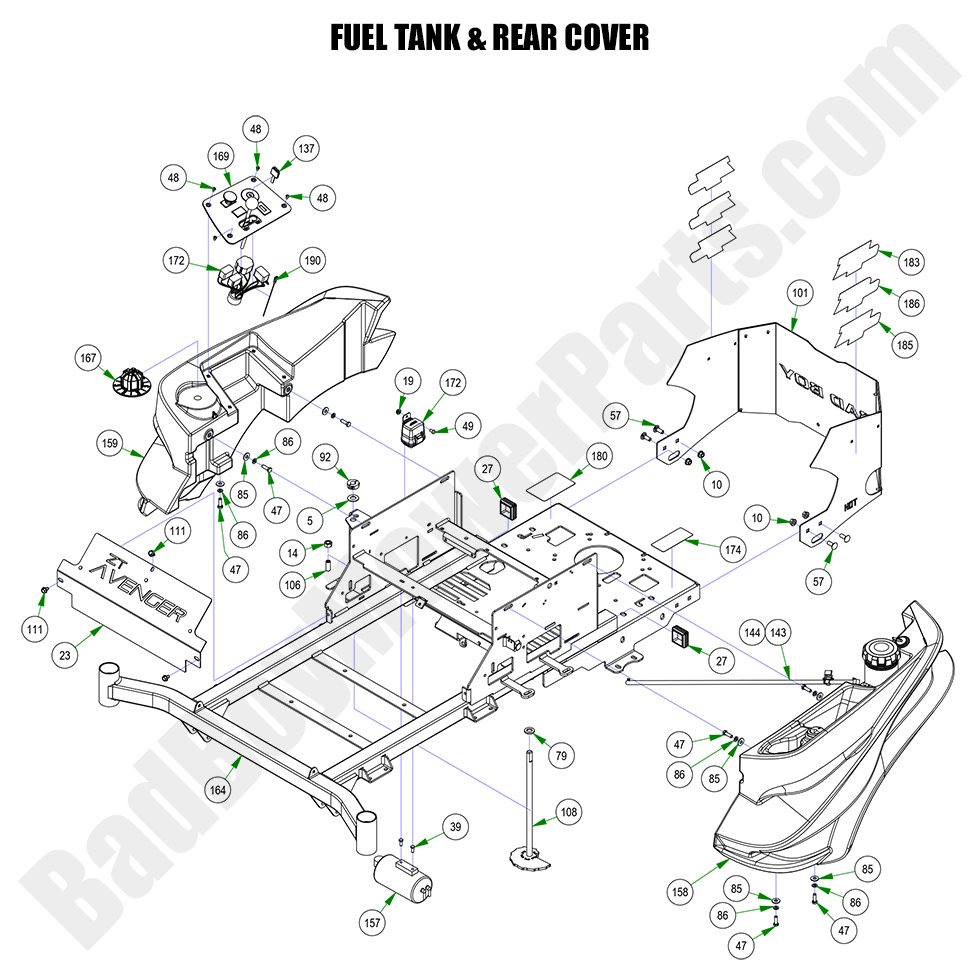

2023 ZT Avenger - Fuel Tank & Rear Cover
  Position Number SKU Product Title Price
5 013-0080-00 013-0080-00 -.630 ID x 1.130 OD x.062 THK F/W Nylon Black
$2.99
10 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
14 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
19 013-9001-00 013-9001-00 - 1/4-20 Hex Flange Nuts Zinc w/Serrations
$2.99

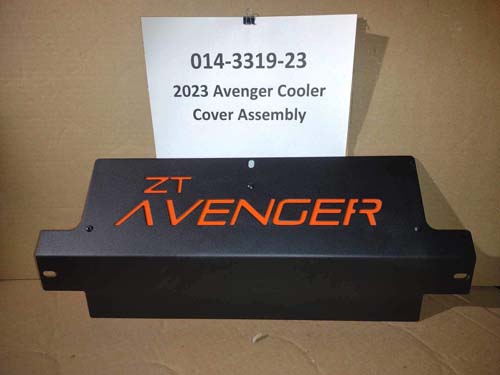

23 014-3319-23 014-3319-23 - 2023 Avenger Cooler Cover Assembly
$74.89
27 014-9000-00 014-9000-00 - Frame Plug 2x2
$2.99
39 018-0024-00 018-0024-00 - M6-1.0 X 16MM HEX BOLT
$2.99
47 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
48 018-2010-00 018-2010-00 - 10-32 X 3/8 BS C/S 18-8 SS
$2.99
49 018-2012-00 018-2012-00 - 1/4-20 X 1/2 BS C/S 18-8 SS
$2.99
57 018-5044-00 018-5044-00 - 3/8 x 1 Carriage Bolt
$2.99
79 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
85 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
86 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
92 025-0002-00 025-0002-00 - Two-Piece Split Collar (See Models Used On For Details)
$10.91
101 026-0224-00 026-0224-00 - 2022 ZT Avenger Rear Plate Assembly
$172.99
106 028-0008-00 028-0008-00 - Deck Height Dial Rod Plunger (See Models Used On For Detail)
$31.17
108 028-0070-17 028-0070-17 - Deck Height Bar Assy. (See Models Used On for Details)
$29.66
111 030-7044-00 030-7044-00 - 5/16-18 x HWH unslot (F) tcs zinc
$2.99
137 042-9000-00 042-9000-00 - Ignition Key
$4.06
157 067-0020-01 067-0020-01 - 2019-2025 ZT/Maverick EPA Cannister Assy, Also Fits 2019-2021 Compact Outlaw
$85.59
158 067-2060-50 067-2060-50 - Left Fuel Tank (See Models Used On For Details)
$349.99

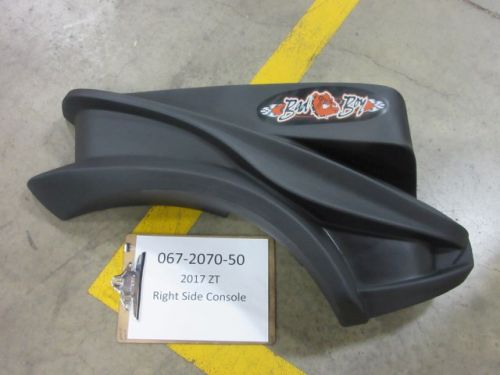

159 067-2070-50 067-2070-50 - Right Side Console
$228.99
167 077-9000-00 077-9000-00 - Deck Height Dial (See Models Used On For Detail)
$21.39
172 086-3050-19 086-3050-19 - 2019-2023 MZ/ZT/Maverick/Compact Outlaw Wiring Harness (obsolete)
use part #086-3600-00
$299.99
174 091-0015-23 091-0015-23 - 2023 EPA Build Date Punch Decal
$2.99
180 091-3017-00 091-3017-00 - Pump Belt Route Decal
$4.92
183 091-4060-00 091-4060-00 - 725CC ZT decal
$8.74
190 216-1000-17 216-1000-17 - 2017-2024 MZ/ZT/MAV Tach Wire Assy
$7.28
