2023 ZT Avenger - Lower Frame

2023 ZT Avenger - Lower Frame

The lower frame of the 2023 ZT Avenger provides structural support and ensures the durability of your mower. If you need to replace or repair this critical component, BadBoyMowerParts.com has you covered. Our site offers a variety of Bad Boy Mower Parts, including those designed specifically for the lower frame of the 2023 ZT Avenger. Using our Bad Boy Mower Part diagrams, you can easily locate the exact part you need to ensure your mower stays in great shape. We stock high-quality Bad Boy Lawn Mower Parts that are designed to fit and function perfectly with your mower model. Plus, with Bad Boy Parts Online, ordering parts is quick and convenient. Don’t forget, you can also take advantage of Free Shipping On Orders Over $100 to save on maintenance costs. Keep your 2023 ZT Avenger running smoothly with top-quality lower frame parts from us.

Bad Boy Mower Parts Lookup

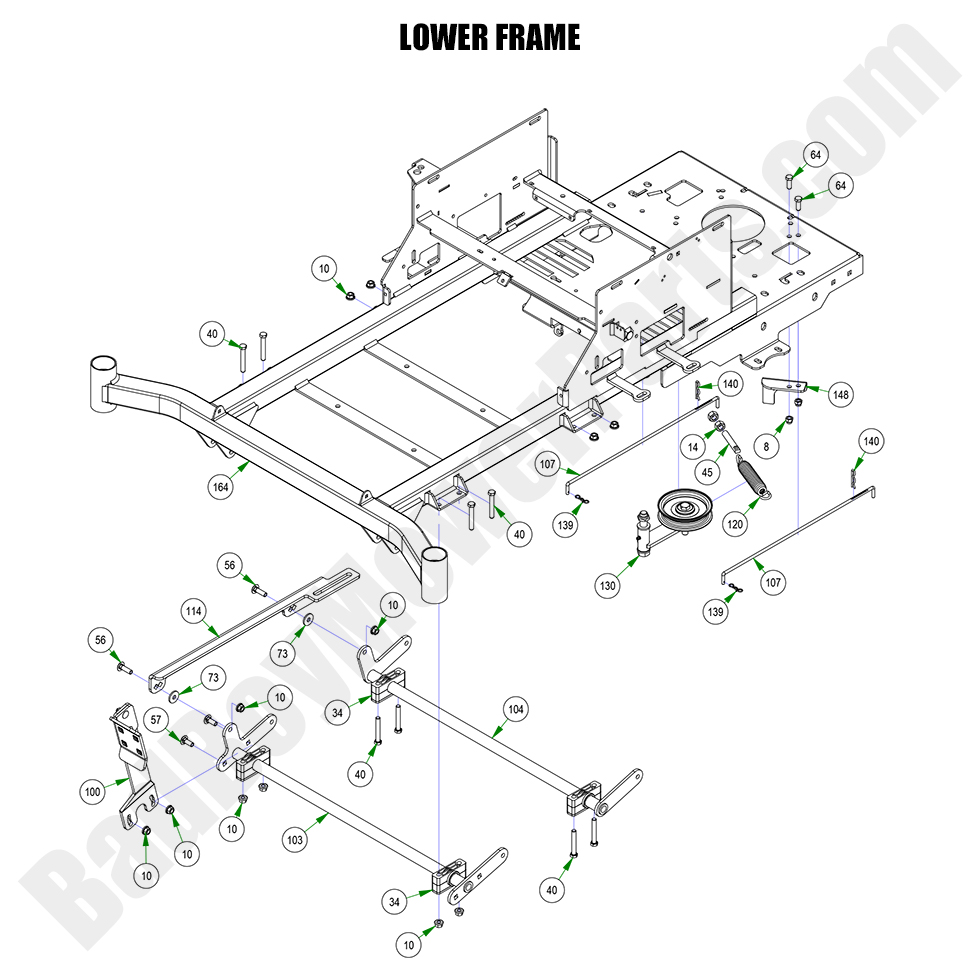

2023 ZT Avenger - Lower Frame
  Position Number SKU Product Title Price
8 013-5041-00 013-5041-00 - 3/8-16 Nylon Insert Locknut Zinc
$2.99
10 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
14 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
34 017-9076-00 017-9076-00 - Pillow Block Assembly
$23.41
40 018-0028-00 018-0028-00 - 3/8x2 1/2" Hex Bolt
$4.39
45 018-2004-50 018-2004-50 - All Thread (See Models Used On For Details)
$12.94
56 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
57 018-5044-00 018-5044-00 - 3/8 x 1 Carriage Bolt
$2.99
64 018-6049-00 018-6049-00 - 3/8-16 X 1 Hex Bolts Zinc
$2.99
73 019-2073-00 019-2073-00 -.390 ID Plastic Washer
$2.99
100 026-0019-01 026-0019-01 - Foot Pedal Assembly (See Models Used On For Details)
$93.69
103 028-0002-00 028-0002-00 - Actuator Bar-Front (See Models Used On For Detail)
$78.08
104 028-0003-00 028-0003-00 - Actuator Bar-Rear (See Models Used On For Detail)
$78.08
107 028-0070-00 028-0070-00 - Neutral Rod
$12.48
114 031-0510-00 031-0510-00 - Actuator Linkage (See Models Used On For Details)
$46.84
120 034-2020-00 034-2020-00 - Idler Spring (See Models Used On For Detail)
$17.11
130 039-5944-01 039-5944-01 - Pump Idler Bracket Assy (See Models Used On For Details)
$62.46
139 044-2004-00 044-2004-00 - Bow Pin
$2.99
140 044-2008-00 044-2008-00 - Neutral Rod Clip
$2.99
148 057-5900-00 057-5900-00 - Clutch Stop 2017-2024 MZ, 2020-2024 ZT Avenger
$31.17
