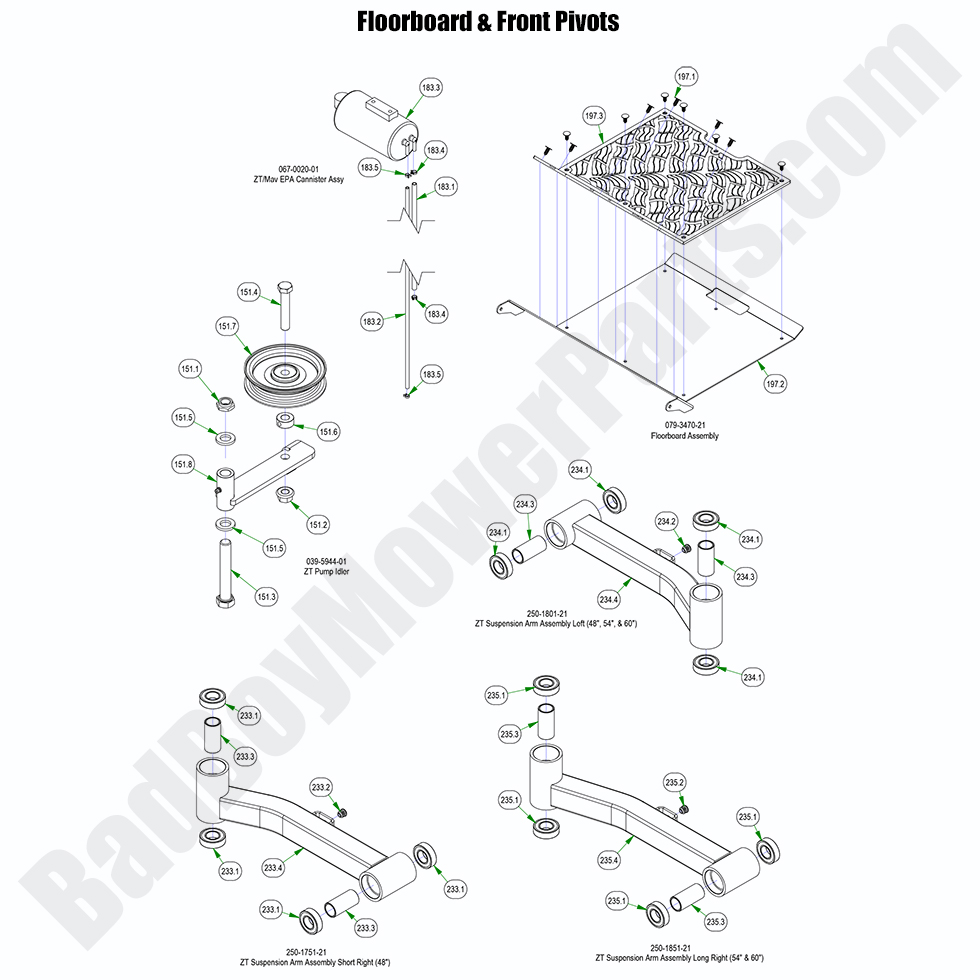

2023 ZT Elite - Floorboard & Front Pivots

2023 ZT Elite - Floorboard & Front Pivots

The floorboard and front pivots on your 2023 ZT Elite are crucial for your comfort and the mower's handling. At BadBoyMowerParts.com, we offer a variety of Bad Boy Mower Parts designed to keep your mower’s floorboard and pivot system in top condition. Whether you need a replacement floorboard or new front pivot components, we carry the parts that are built to last and fit your mower perfectly. Our Bad Boy Mower Part diagrams make it easy to identify and purchase the correct parts for your mower. We offer durable Bad Boy Lawn Mower Parts that stand up to regular use and help maintain smooth operation. Shopping Bad Boy Parts Online is quick and hassle-free, and with Free Shipping On Orders Over $100, you can save while maintaining your mower. Upgrade or replace the floorboard and front pivots on your 2023 ZT Elite with parts from BadBoyMowerParts.com.

Bad Boy Mower Parts Lookup

2023 ZT Elite - Floorboard & Front Pivots
  Position Number SKU Product Title Price
151.0 039-5944-01 039-5944-01 - Pump Idler Bracket Assy (See Models Used On For Details)
$62.46
151.1 013-5301-00 013-5301-00 - 5/8-11 Nylon Insert Jam Locknut Zinc
$2.99
151.2 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
151.3 018-5311-00 018-5311-00 - 5/8-11 X 4" Hex Bolts Zinc
$4.06
151.4 018-6036-00 018-6036-00 - 1/2-13 X 2-3/4 Bolt Zinc
$2.99
151.5 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
151.6 025-7036-00 025-7036-00 - 1/2 Set Collar w/set screw
$4.60
151.7 033-6001-00 033-6001-00 - 4 3/4 Idler Pulley (See Models Used On For Details)
$31.22
151.8 039-5944-00 039-5944-00 - Pump Idler Bracket
$42.58
183.0 067-0020-01 067-0020-01 - 2019-2025 ZT/Maverick EPA Cannister Assy, Also Fits 2019-2021 Compact Outlaw
$85.59
183.1 051-2020-01 051-2020-01 - 1/4 Vinyl 46" EPA Line (See Models Used On For Details)
$12.48
183.2 051-2025-02 051-2025-02 - 3/16 Vinyl 55" EPA Line
$12.48
183.3 067-0020-00 067-0020-00 - Carbon Canister
$62.40
183.4 072-8070-00 072-8070-00 - Tank Hose Clamp 3/16 (See Models Used On For Detail)
$2.99
183.5 072-8073-00 072-8073-00 - 3/16" Vinyl Hose Clamp
$2.99
197.0 079-3470-21 079-3470-21 - 2021 Maverick Floorboard Assembly
$159.99
197.1 040-6080-00 040-6080-00 - Ratchet Fastener - Floorboard
$2.99
197.2 079-3470-18 079-3470-18 - Floor Panel 2018-2024 Maverick, 2021-2024 ZT Elite
$106.99
197.3 081-4001-00 081-4001-00 - 2021-2024 Floor Mat W/ Reaper Tread
$53.49
233.0 250-1751-21 250-1751-21 2021-2024 ZT Suspension Arm Assy. Short Right
$109.99
233.1 010-1050-00 010-1050-00 - Front Fork Caster Bearing (See Models Used On For Details)
$18.39
233.2 014-3010-00 014-3010-00 - 5/8 Round Insert
$2.99
233.3 025-0003-00 025-0003-00 - Front Bearing Spacer
$14.04
234.0 250-1801-21 250-1801-21 - 2021-2022 ZT Suspension Arm Assembly Left
$106.99
234.4 250-1801-00 250-1801-00 - 2021-2022 ZT Suspension Component Left
$80.24
235.0 250-1851-21 250-1851-21 - 2021-2022 ZT Suspension Arm Assembly Long Right (54 & 60 Decks)
$106.99
