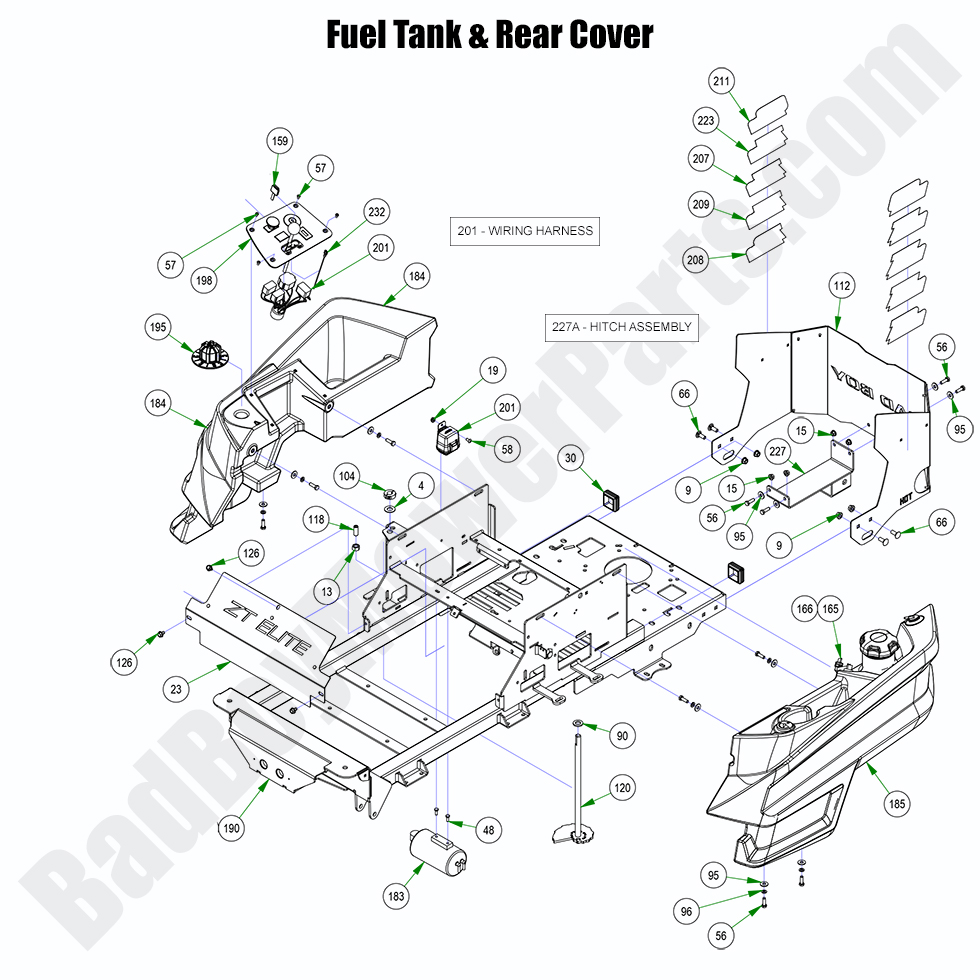

2023 ZT Elite - Fuel Tank & Rear Covers

2023 ZT Elite - Fuel Tank & Rear Covers

The fuel tank and rear covers are critical components of your 2023 ZT Elite, helping to keep fuel safely stored and protecting other parts of the mower. At BadBoyMowerParts.com, we offer a variety of Bad Boy Mower Parts to replace or maintain your fuel tank and rear covers. Whether you need a new fuel tank or are looking for replacement rear covers, we have the parts you need to keep your mower in top shape. Our Bad Boy Mower Part diagrams allow you to quickly identify the right components. We provide only durable Bad Boy Lawn Mower Parts that fit perfectly and are built to last. Shopping Bad Boy Parts Online is easy, and with Free Shipping On Orders Over $100, you can save while maintaining your mower. Replace or upgrade your fuel tank and rear covers for your 2023 ZT Elite at BadBoyMowerParts.com.

Bad Boy Mower Parts Lookup

2023 ZT Elite - Fuel Tank & Rear Covers
  Position Number SKU Product Title Price
4 013-0080-00 013-0080-00 -.630 ID x 1.130 OD x.062 THK F/W Nylon Black
$2.99
9 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
13 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
15 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
19 013-9001-00 013-9001-00 - 1/4-20 Hex Flange Nuts Zinc w/Serrations
$2.99

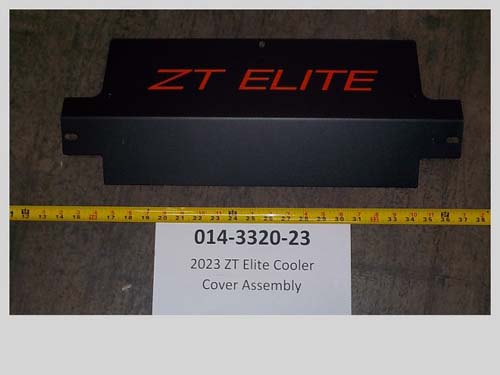

23 014-3320-23 014-3320-23 - 2023 ZT Elite Cooler Cover Assembly
$74.89
30 014-9000-00 014-9000-00 - Frame Plug 2x2
$2.99
48 018-0024-00 018-0024-00 - M6-1.0 X 16MM HEX BOLT
$2.99
56 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
57 018-2010-00 018-2010-00 - 10-32 X 3/8 BS C/S 18-8 SS
$2.99
58 018-2012-00 018-2012-00 - 1/4-20 X 1/2 BS C/S 18-8 SS
$2.99
66 018-5044-00 018-5044-00 - 3/8 x 1 Carriage Bolt
$2.99
90 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
95 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
96 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
104 025-0002-00 025-0002-00 - Two-Piece Split Collar (See Models Used On For Details)
$10.91
112 026-0225-00 026-0225-00 - 2022-2025 ZT Elite Rear Plate Assembly
$172.99
118 028-0008-00 028-0008-00 - Deck Height Dial Rod Plunger (See Models Used On For Detail)
$31.17
120 028-0070-17 028-0070-17 - Deck Height Bar Assy. (See Models Used On for Details)
$29.66
126 030-7044-00 030-7044-00 - 5/16-18 x HWH unslot (F) tcs zinc
$2.99
159 042-9000-00 042-9000-00 - Ignition Key
$4.06
183 067-0020-01 067-0020-01 - 2019-2025 ZT/Maverick EPA Cannister Assy, Also Fits 2019-2021 Compact Outlaw
$85.59
184 067-2020-00 067-2020-00 - 2021-2022 Maverick Right Side Tank
$248.99
185 067-2021-00 067-2021-00 - 2021-2024 Maverick Left Side Tank
$349.99
195 077-9000-00 077-9000-00 - Deck Height Dial (See Models Used On For Detail)
$21.39
201 086-3050-19 086-3050-19 - 2019-2023 MZ/ZT/Maverick/Compact Outlaw Wiring Harness (obsolete)
use part #086-3600-00
$299.99
207 091-0315-21 091-0315-21 - 2021 - 2022 ZT Elite 747cc Back Plate Cluster
$13.90
208 091-0316-21 091-0316-21 - 2021 ZT Elite 726cc Back Plate Cluster
$14.97
209 091-0317-21 091-0317-21 - 2021 - 2022 ZT Elite 725cc Back Plate Cluster
$11.76

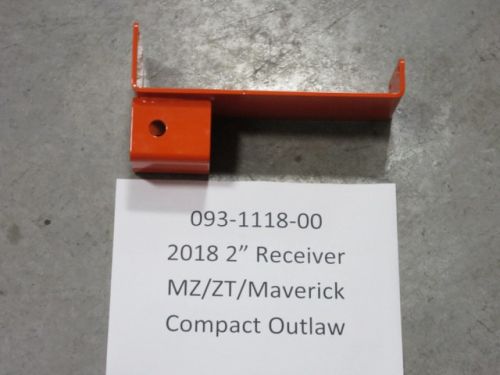

227 093-1118-00 093-1118-00 - 2018 2" Reciever Weldment
$32.05
232 216-1000-17 216-1000-17 - 2017-2024 MZ/ZT/MAV Tach Wire Assy
$7.28
