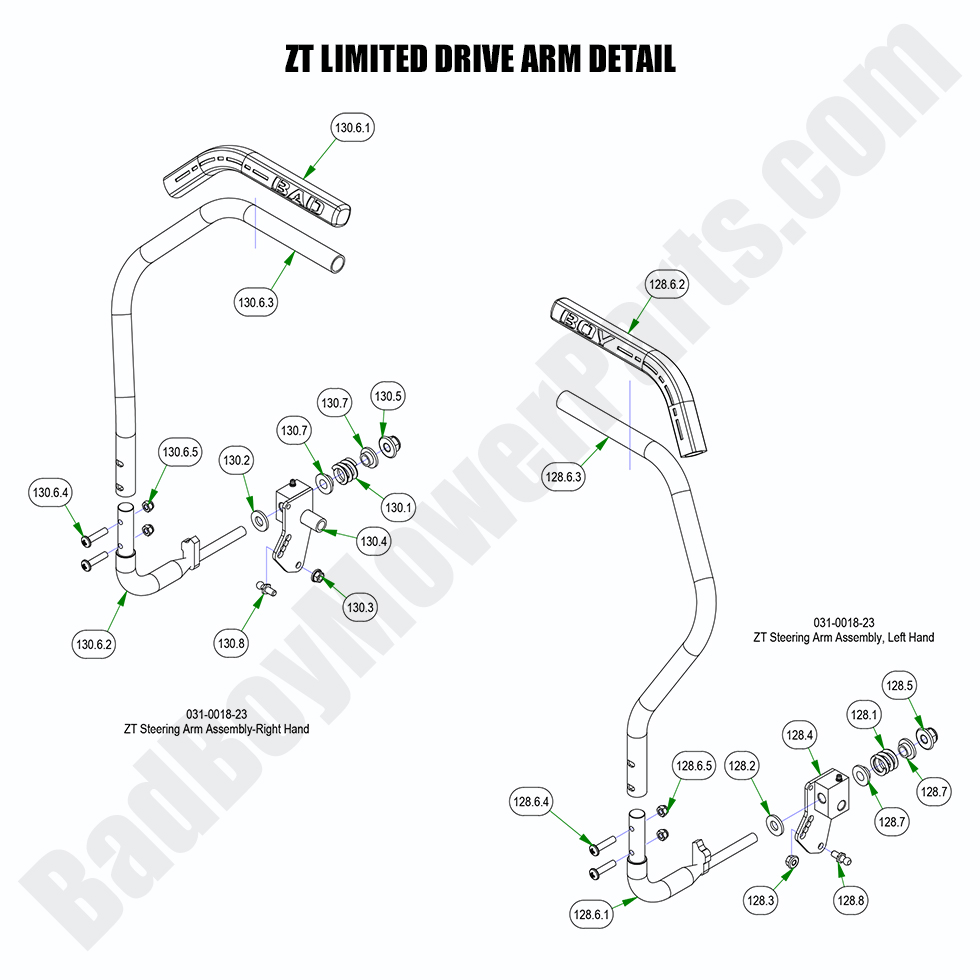

2023 ZT Elite Limited - Drive Arm Detail

2023 ZT Elite Limited - Drive Arm Detail

The drive arm detail is crucial to ensuring that your 2023 ZT Elite Limited mower’s drive system functions smoothly and efficiently. At BadBoyMowerParts.com, we offer high-quality Bad Boy Mower Parts to replace or repair the drive arms on your mower. Whether you're replacing a worn-out arm or upgrading for better performance, we have the parts you need. Our Bad Boy Mower Part diagrams help you easily locate the right components for your mower’s drive system. We provide only durable Bad Boy Lawn Mower Parts that are built to last. Shopping Bad Boy Parts Online is quick and convenient, and with Free Shipping On Orders Over $100, you can save while maintaining your mower’s performance.

Bad Boy Mower Parts Lookup

2023 ZT Elite Limited - Drive Arm Detail
  Position Number SKU Product Title Price
128.1 034-8025-00 034-8025-00 - Drive Lever Housing Spring
$4.07
128.2 019-8054-00 019-8054-00 -.505 ID X 1 OD X.128 THK Flat Washer Nylon
$2.99
128.3 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
128.4 031-0017-98 031-0017-98 - 2017-2023 Left Drive Lever Housing (See Models Used On For Details)
$31.23
128.5 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
128.6.1 031-9020-70 031-9020-70 - Left Steering Arm Black Elbow (See Models Used On For Details)
$85.17
128.6.2 069-4013-00 069-4013-00 - ZT Elite Limited Steering Grip (See Models Used On For Details)
$16.04
128.6.3 031-8850-02 031-8850-02 - Steering Arm Left - Tubing (See Models Used On For Details)
$85.12
128.6.4 018-2020-18 018-2020-18 - 5/16-18 x 1 3/8" Button Head Torx Drive
$2.99
128.6.5 013-8047-00 013-8047-00 - 5/16-18 Nylon Insert Locknut - Zinc
$2.99
128.7 019-8027-00 019-8027-00 -.515 ID Plastic Shoulder Washer
$2.99
128.8 018-2050-00 018-2050-00 - 10mm Damper Ball Stud-Steering Damper, Outlaw Deck Damper
$2.99
130.4 031-0018-98 031-0018-98 - 2017-2023 Right Drive Lever Housing (See Models Used On For Details)
$23.42
130.6.2 031-9025-70 031-9025-70 - Right Steering Arm Black Elbow
$85.17
130.6.3 031-8851-02 031-8851-02 - Steering Arm Right - 5" Tubing (See Models Used On For Details)
$85.12
